Concealed Outdoor Power and Lighting for Timber Structures
There are two ways to get outdoor power and light into a backyard structure. One is a string of lights and an extension cord, and it works. The other is wiring run inside the timber posts before the structure ever leaves the shop. This post covers both, and when each one is the right call.

Light is what decides whether an outdoor space gets used after about seven in the evening. A structure that is beautiful at noon and dark at nine is only half a structure.
Simple Outdoor Lighting You Can Add Yourself
Plenty of good outdoor lighting needs no electrician and no planning. It needs a hook and an idea.
- String lights. Run across a patio or wound around a tree, placed well, these do more than any single fixture.
- An old fixture, reused. A discarded chandelier or pendant with battery bulbs or candles in it.
- Paper lanterns. Cheap, come in every size and color, and read as deliberate when hung in groups.
- Mason jars and hanging pots. Candles, or candles with succulents, for a casual look with very little effort.
- Solar path lights. No wiring at all, and they mark edges and steps after dark.

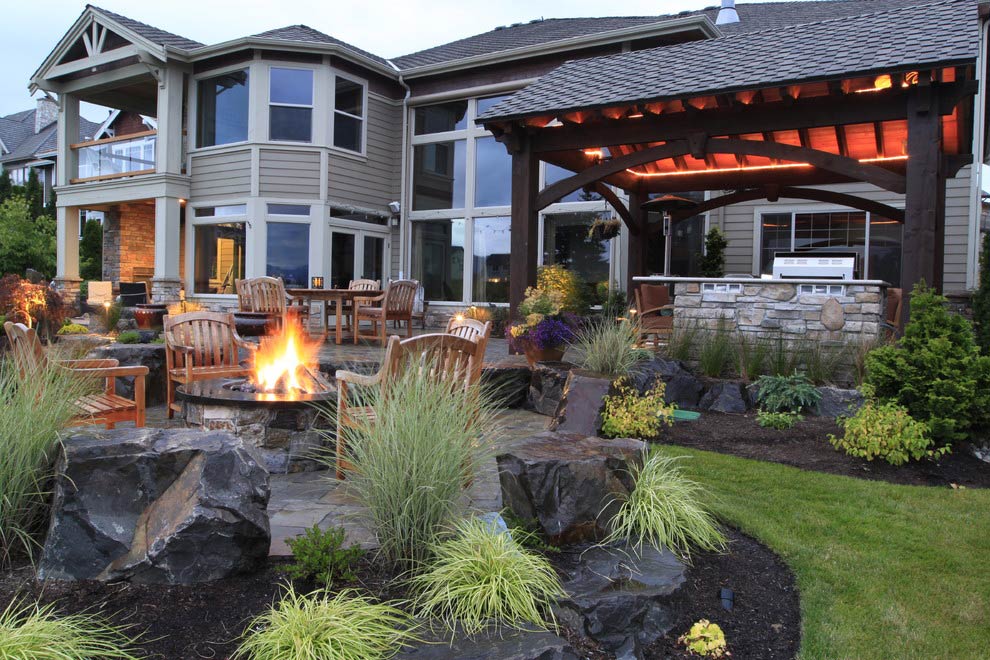

The pavilion below is a good example of how far simple lighting gets you. String lights overhead, a fire pit, a table lantern, solar lights in the beds, and an outdoor kitchen bar. Nothing here required opening up a post.


That pavilion is solid Douglas Fir, with full arched knee braces, decorative keystones, Crescent beam end profiles, and a Rich Cordoba finish.

Built-In Outdoor Power with TimberVolt®
The other approach puts the wiring inside the structure. TimberVolt® is Western Timber Frame™’s patented system for concealed outdoor power, integrating electrical access directly into handcrafted timber posts. The channel is bored through the post and the boxes are recessed into the timber itself, so there is no conduit strapped to the outside and no cord running across the patio.
It is covered by U.S. Patent No. 10,053,861, and the wiring meets National Electrical Code standards.



What that takes to build

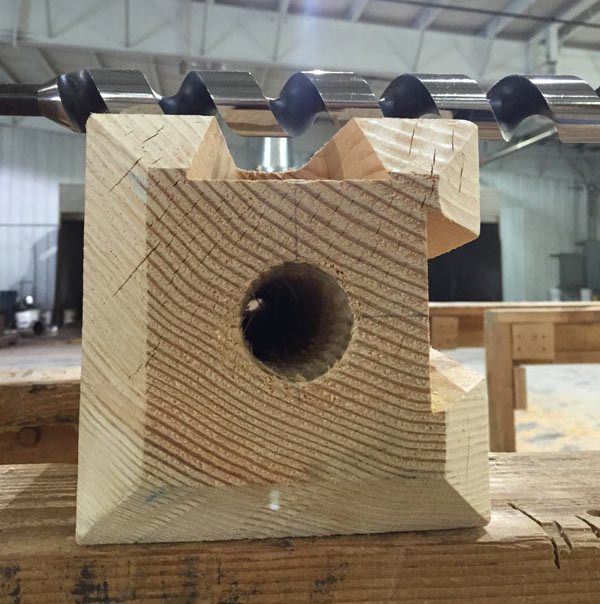

Drilling a straight channel down the length of a heavy timber is the part people ask about most, and it is genuinely difficult. A few things make it work:
- Posts 6×6 or larger. Concealed power is not possible on smaller posts.
- A 1.25-inch channel, which does not compromise the post’s structural role.
- An eight-foot bit run from both ends, which puts the maximum drilled length at sixteen feet.
- The recessed boxes themselves help. Cutting a box into the post lets the drill be re-centered at each one, so the channel stays straight instead of wandering toward the face.
The recessed boxes take weather-resistant covers for the plugs and switches, seamlessly incorporated into the timber. More on the process at how TimberVolt power posts are made.
What the Inferno Model Includes
TimberVolt® comes in several configurations. The Inferno™ is the fullest one, and it is a useful illustration of how much can live inside a single post:
| Position | What is there |
|---|---|
| Base | Recessed male plug with a weather-resistant cover |
| Lower | One GFCI plug with a weather-resistant cover |
| Just above | One plug with two USB ports |
| Halfway up | Double switch, one for lights and one for a fan, with a weather-resistant cover |
| Upper | TV plug with two USB ports and a weather-resistant cover |
| Top of post | Separated plug, one side for lights and one for a fan, both on the double switch, with a weather-resistant cover |

A standard TimberVolt® post handles a ceiling fan, and one can be added after the structure is already up.
Drill For Power™ for Overhead Runs
Posts handle what sits at post height: outlets, switches, chargers, speakers, lamps. For anything overhead, Drill For Power™ routes concealed wiring up through the timbers to the fixture location, so a light or a fan in the middle of a roof is fed from inside the frame rather than from a cord.

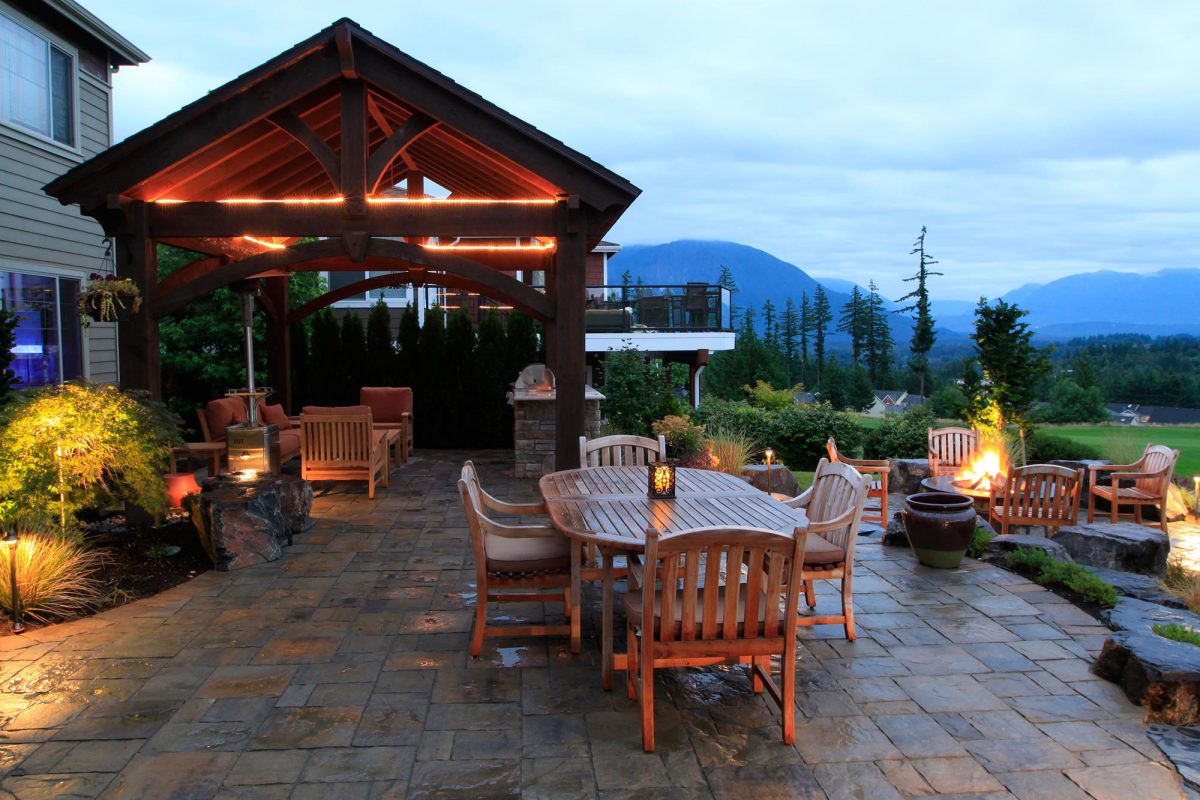

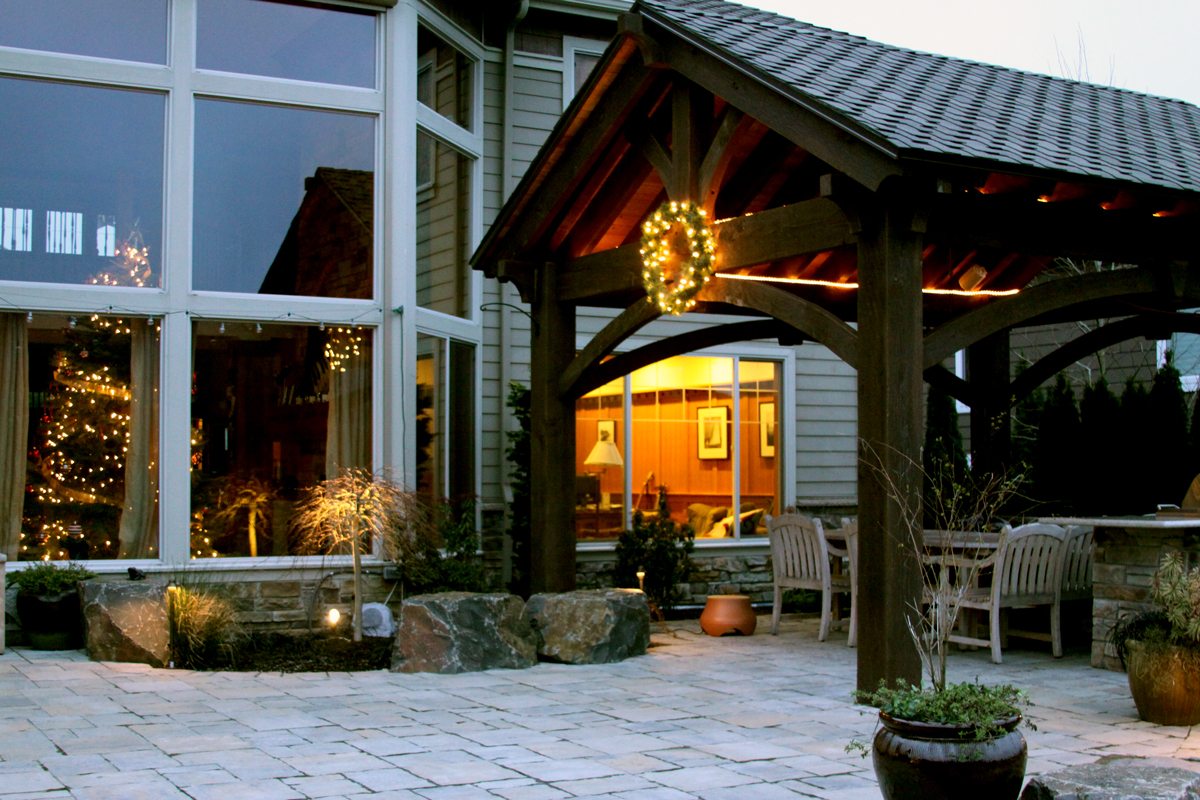

The two options are frequently used together on the same structure, which is what the outdoor rooms in these photos have.
Worth knowing before you plan: we build the concealed pathway and install the boxes in the shop. Final hookup is done by a licensed electrician on site, the same as any other outdoor circuit.
At the Salt Lake Home Show

The booth was built as a full outdoor living room, lit and powered exactly the way one would be in a backyard, with power posts feeding the lamps and Drill For Power™ feeding the overhead lighting. HGTV’s Mina Starsiak and Karen Jensen of Two Chicks and a Hammer stopped in while the show was running.
It is a fair test of the idea. Nothing in that room was plugged in across the floor.
Common Questions
What is concealed outdoor power?
Concealed outdoor power runs the electrical inside the structure rather than on the surface of it. With TimberVolt, a channel is bored through the timber post and the electrical boxes are recessed into the timber, so there is no conduit attached to the outside of the post and no extension cord across the patio.
Does drilling a post for wiring weaken it?
No. The channel is 1.25 inches and the posts are sized for it, so the bore does not compromise the post’s structural role. Concealed power is only available on posts 6 by 6 or larger, which is part of why.
Is the wiring code compliant?
Yes. TimberVolt wiring meets National Electrical Code standards. Western Timber Frame builds the concealed pathway and installs the boxes in the shop, and a licensed electrician makes the final hookup on site.
Can water get into the post?
The boxes and outlets take weather-resistant covers that protect the connections outdoors. As with any exterior electrical, the covers are what keep water out of the connection.
Can a ceiling fan be powered this way?
Yes. A standard TimberVolt post handles a ceiling fan, and one can be added after the structure is already up.
What size post is needed for built-in power?
Posts must be 6 by 6 or larger. Concealed power is available on 6×6, 8×8, 10×10 and 12×12 posts, and it is not possible on anything smaller.
The Short Version
Start with string lights and a lantern. They cost almost nothing and they work. If the structure is being built now, though, the wiring is far easier to hide before it is assembled than after, and that decision is only available once.
Questions about either option: 877-870-8755.
