Timbervolt Inferno

Your Full Outdoor Power Hub

Outlets, USB, a TV plug, and dual light-and-fan switching.

What Is the TimberVolt^® Inferno^™?

The Inferno is the most advanced, fully loaded model in Western Timber Frame’s patented TimberVolt line — a pre-wired timber power post with a GFCI outlet, a standard outlet with dual USB, a high-mounted TV power plug, upper outlet ports, and a double light-and-fan switch, all concealed inside the timber.

Built to power everything from string lights to movie nights, the Inferno energizes through a recessed male inlet at the base and runs its wiring through a 1.25-inch channel in a 6×6 or larger timber, to National Electrical Code (NEC) standards.

TimberVolt Inferno power post with concealed wiring on a gable-roof timber pavilion

Part of the TimberVolt system, protected under U.S. Patent No. 10,053,861 — “Power Distribution Post for Use in Timber Frame Structures.”

What’s Built Into Every Inferno?

The Inferno arrives fully pre-wired and sealed, with every connection point covered for weather. A steel wire-channel insert shields the internal wiring during assembly, and every outlet, switch, and USB port is built right into the post.

GFCI Outlet

User-accessible outlet with built-in ground-fault protection and an upgraded weather cover.

Standard Outlet + Dual USB

Everyday plug plus two USB ports for charging modern devices.

TV Power Plug + USB

High-mounted for a wall-mount TV or lights, with dual USB charging.

Double Light Switch

One switch wired for lighting, one for fan control — both mid-post.

Upper Outlet Ports

For pendant lights, ceiling fans, or other overhead accessories.

Recessed Male Inlet at Base

Energizes the system via an extension cord, with a weather-resistant cover.

Inferno at a Glance

Pre-wired: Yes, ready to plug in
Outlets: GFCI, standard, upper ports & TV plug
USB: Dual USB (standard outlet + TV plug)
Light switches: 2 (lighting + fan)
Powered by: Recessed male inlet at the base
Post size: 6×6 or larger
Electrical code: NEC standards
Patent: U.S. 10,053,861

Where Does the Inferno Fit Best?

The Inferno is built for full-service outdoor living — entertaining spaces that need lighting, fans, charging, and entertainment all from one post. Common uses include:

Powering high- and low-mounted outdoor lighting
Running ceiling fans, radiant heaters, or air movers
Charging devices at built-in USB ports
Powering wall-mounted TVs or sound systems
Multizone lighting or fan control with dual switching
Outdoor kitchens, pavilions, and entertaining spaces

The Inferno Power Post, from Every Angle

Four labeled views of the Inferno — ISO, front, side, and back — showing the full pre-wired configuration: GFCI outlet, USB, TV plug, double switch, upper ports, and the recessed base inlet.

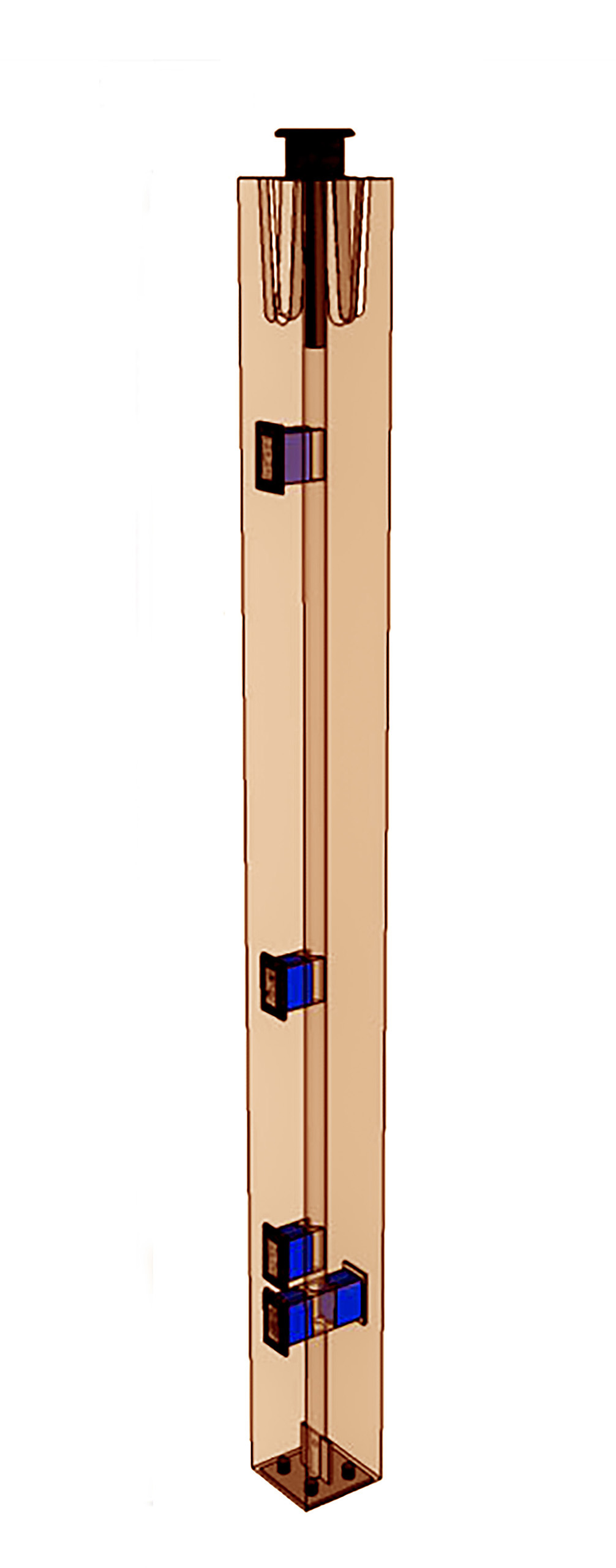

Inferno power post ISO 3D diagram showing the fully pre-wired configuration — ISO View3D view of the fully pre-wired post

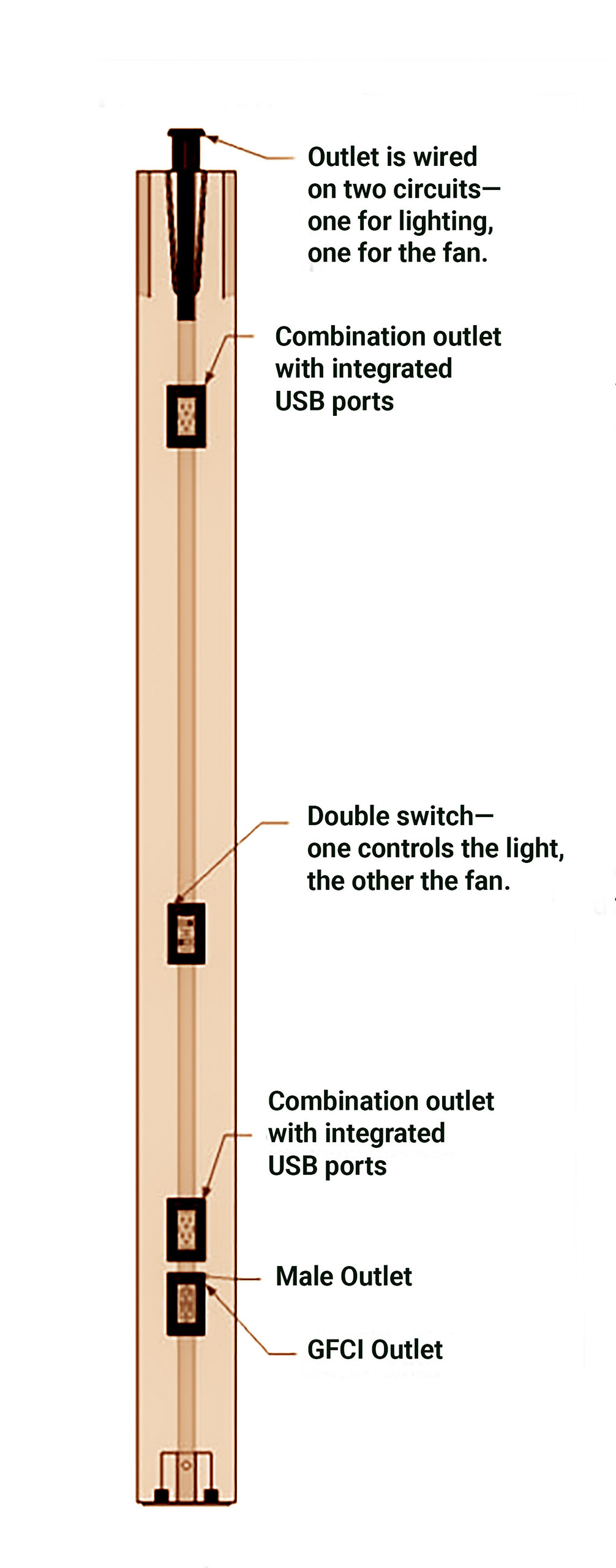

Inferno power post front view showing GFCI outlet, USB, and double switch — Front ViewGFCI outlet, USB, and double switch

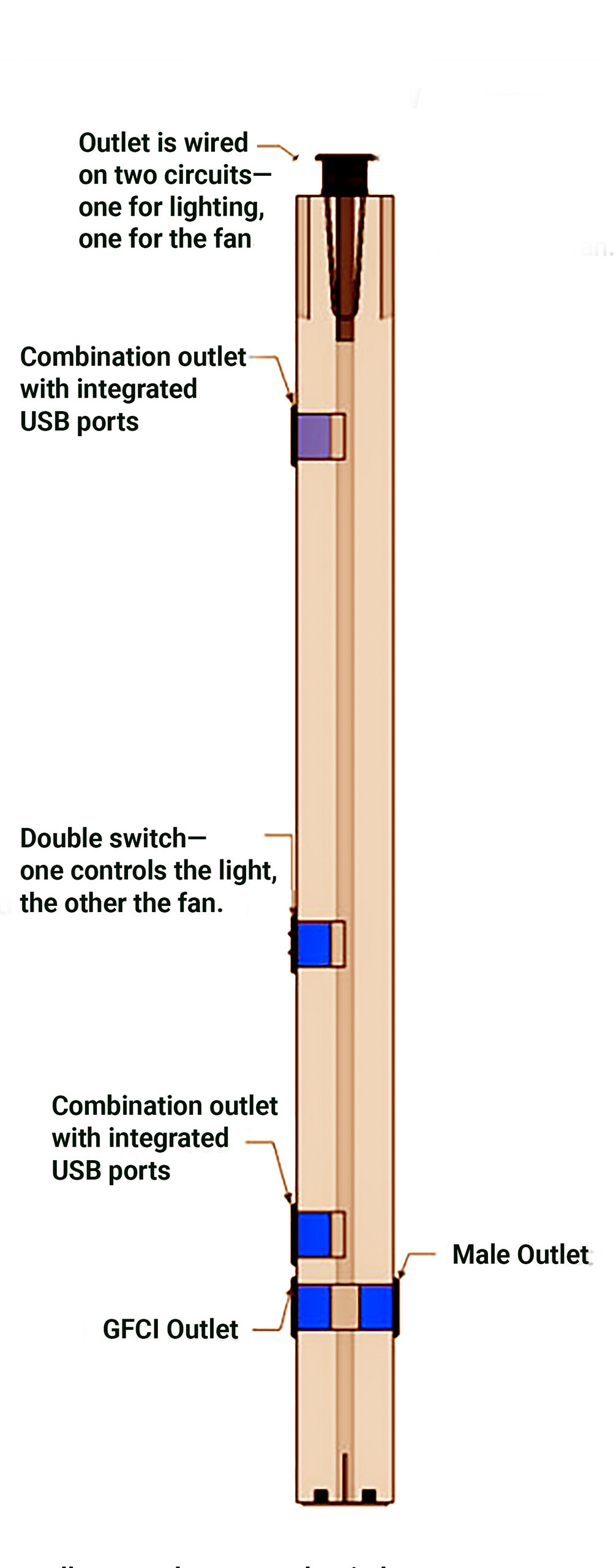

Side ViewSlim profile and recessed base inlet

Inferno power post back view showing TV plug and upper outlet ports — Back ViewTV plug and upper outlet ports

A Dovetailed Timber Post at Its Core

The Inferno isn’t just wiring — it’s a solid, dovetailed timber post. Like every TimberVolt post, it’s built on Western Timber Frame’s patented Dovetail Difference^®: a trapezoidal joint that interlocks the timbers together without a single metal bracket.

The wedge shape lets the timber flex and settle naturally with the seasons instead of loosening over time, and because no exposed steel holds it together, there’s nothing to rust or corrode. The post that carries your power is made to last for generations.

Learn More About the Dovetail Difference

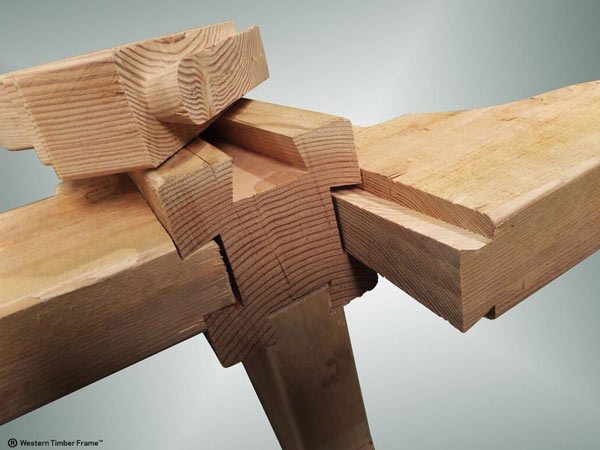

Close-up of the patented Dovetail Difference interlocking timber joint — The patented Dovetail Difference interlock

Inferno Questions

What is the TimberVolt Inferno?

The Inferno is the most advanced, fully loaded model in Western Timber Frame’s patented TimberVolt line — a pre-wired timber power post with a GFCI outlet, a standard outlet with dual USB, a high-mounted TV power plug, upper outlet ports, and a double light-and-fan switch, all hidden inside the timber.

What can the Inferno power?

High- and low-mounted lighting, ceiling fans, radiant heaters, wall-mounted TVs, sound systems, and device charging — everything a full outdoor living space needs from one post.

Does the Inferno have a TV power plug?

Yes. The Inferno includes a high-mounted TV power plug with dual USB — ideal for a wall-mounted television or overhead lights.

How many outlets and USB ports does the Inferno have?

A GFCI outlet, a standard outlet with dual USB, a TV power plug with USB, and upper outlet ports for overhead accessories — the most connection points of any TimberVolt model.

How does the Inferno get power?

Through a recessed male inlet at the base that connects via an extension cord. It arrives pre-wired, so there’s no after-market electrical work at assembly.

What size post does the Inferno need?

Any post 6×6 or larger. The 1.25-inch wiring channel runs down the center of the timber without upsizing the post.

Is the Inferno wiring up to code?

Yes. TimberVolt wiring, including the Inferno, meets National Electrical Code (NEC) standards and stays concealed inside the timber.

How is the Inferno different from the other TimberVolt models?

The Inferno is the most comprehensive model, with the most outlets, USB, a TV plug, and dual switching. The Firefly^™ is a single outlet, the Phoenix^™ focuses on roofline power, and the Dragon^™ is plug-and-play with a GFCI outlet and USB.

Not sure which model fits your project? We’ll help you plan the right TimberVolt setup.

Get a Free Quote Compare All TimberVolt Models
