16′ × 32′ Oversize Timber Frame Pergola in Minnesota

This 16′ × 32′ oversize timber pergola in Oronoco, Minnesota, uses eight posts to create one long freestanding shade structure over open lawn. It is built from Douglas Fir with 8″ × 8″ posts, a FullWrap™ roof, Champion beam and rafter ends, a TimberVolt® Inferno® power post, and Early American stain.

Eight-post 16 by 32 foot timber pergola in Early American stain on a grassy lawn with white patio chairs beneath
Shade over the lawn in Oronoco, Minnesota.

Key Takeaways

  • Size: 16′ × 32′, eight posts
  • Height: 8′ to the bottom of the beams, about 10′ to the top
  • Finish: FullWrap™ roof and Early American stain
  • Power: TimberVolt® Inferno® power post

How Do You Plan an Oversize Pergola?

To go bigger, add posts. Extra posts extend the length and width while keeping one freestanding pergola instead of two. Here, the eight posts sit closer to the ends, which spreads the visual weight evenly and gives the long frame a balanced, artistic look.

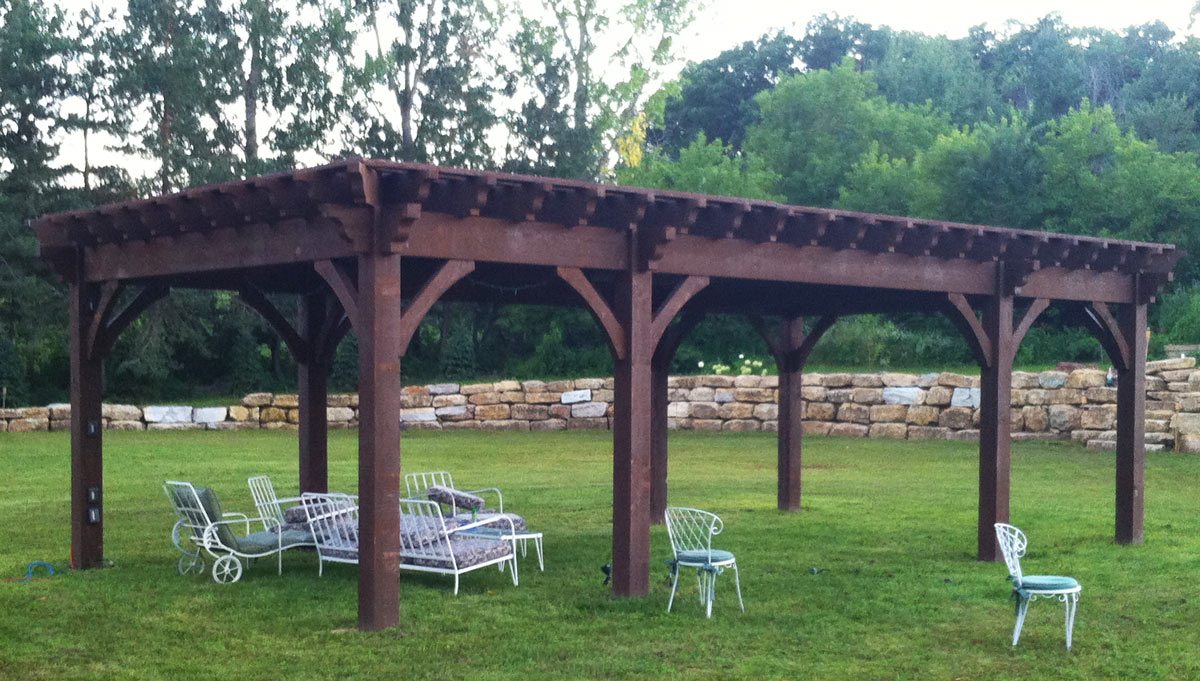

Long side of an oversize timber pergola with Champion beam ends and classic braces in front of a stone wall
Eight posts along a 32-foot length.

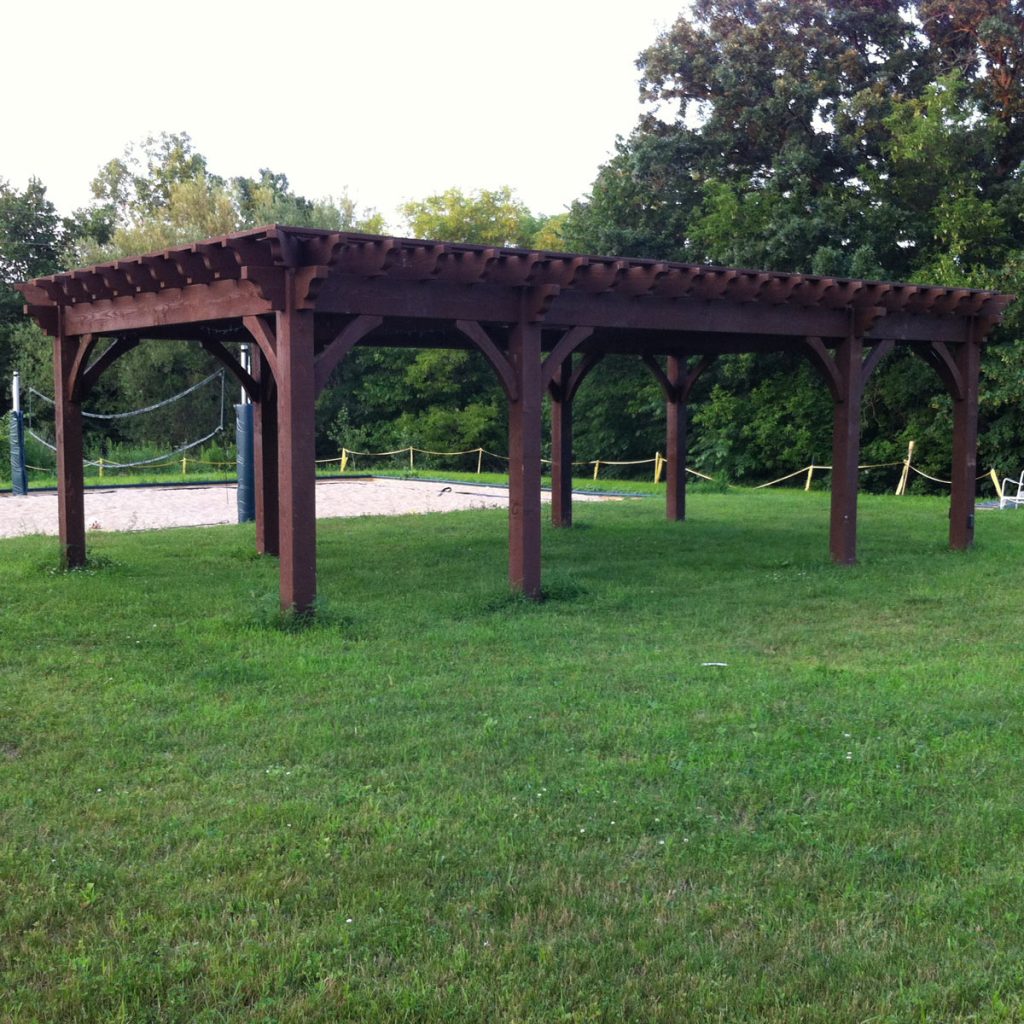

Oversize eight-post timber pergola standing in an open Minnesota yard with trees and a sand court behind it
Room to spread out.

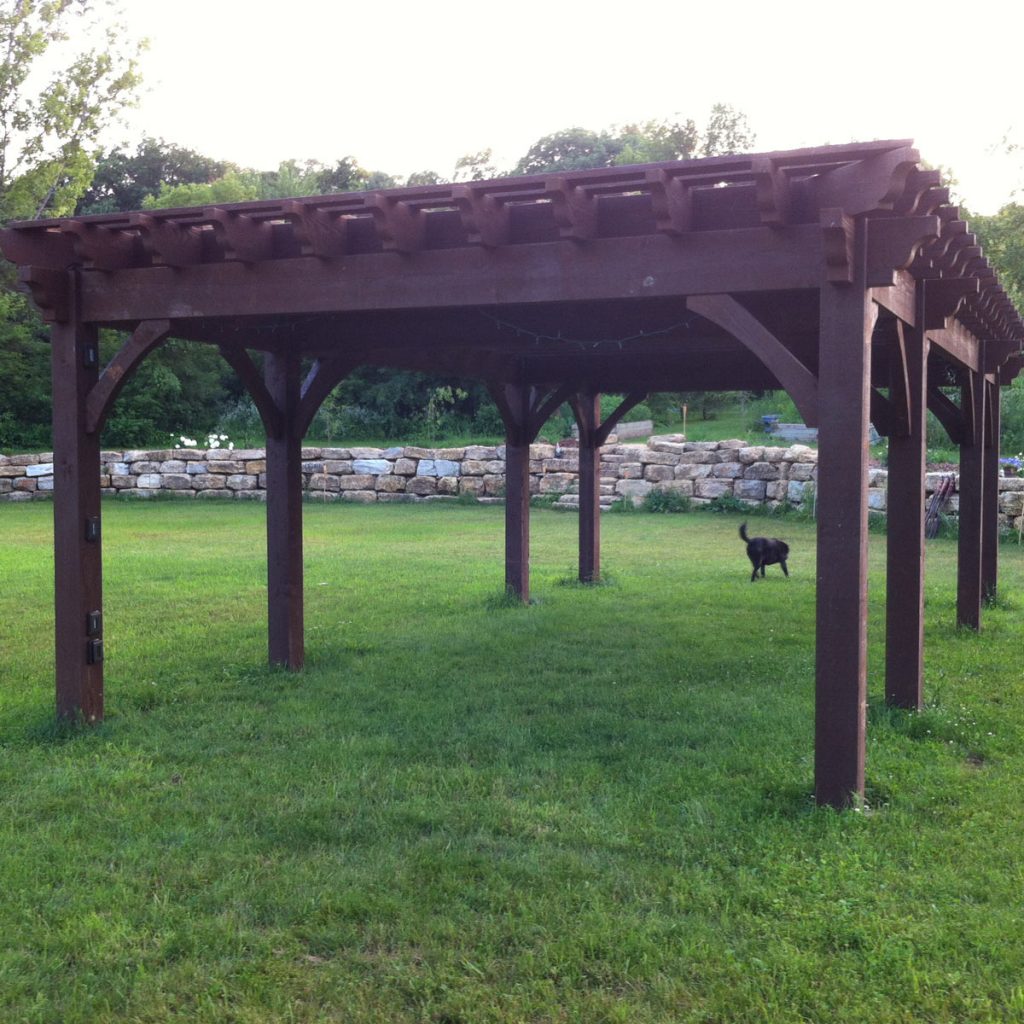

End view of a 16 foot wide timber pergola with a FullWrap roof, showing beam end profiles on every side
The end view.

What Is a FullWrap™ Roof?

A FullWrap™ roof carries the beam end profiles around every side, so the pergola has a complete, finished look from any view. The example below is from another project.

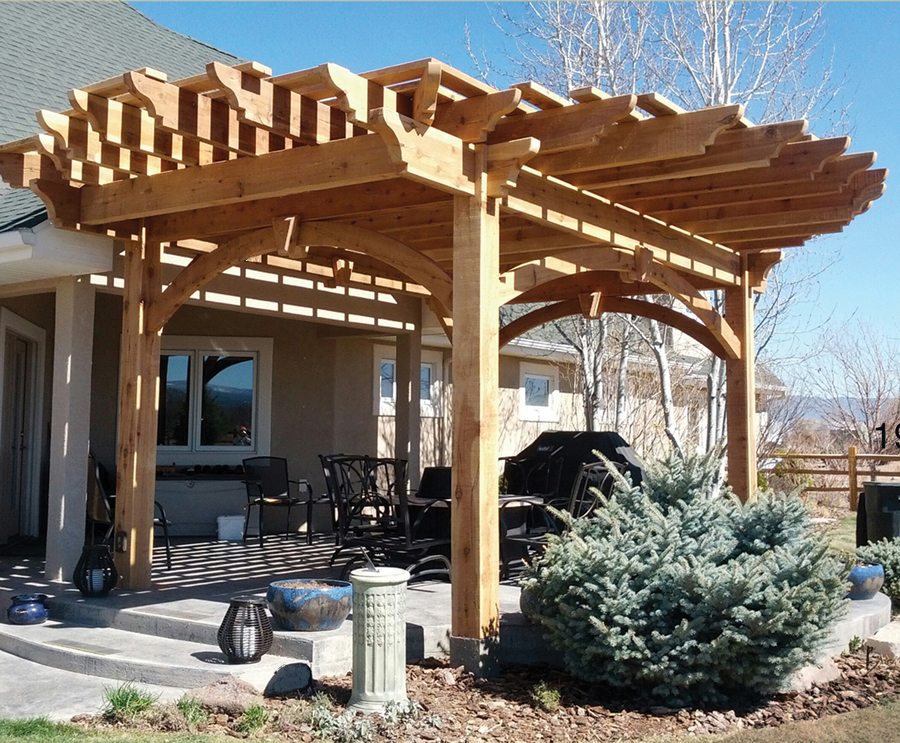

Natural-finish timber pergola with a FullWrap roof whose beam and rafter ends extend past the posts on all sides
A FullWrap™ roof on another project.

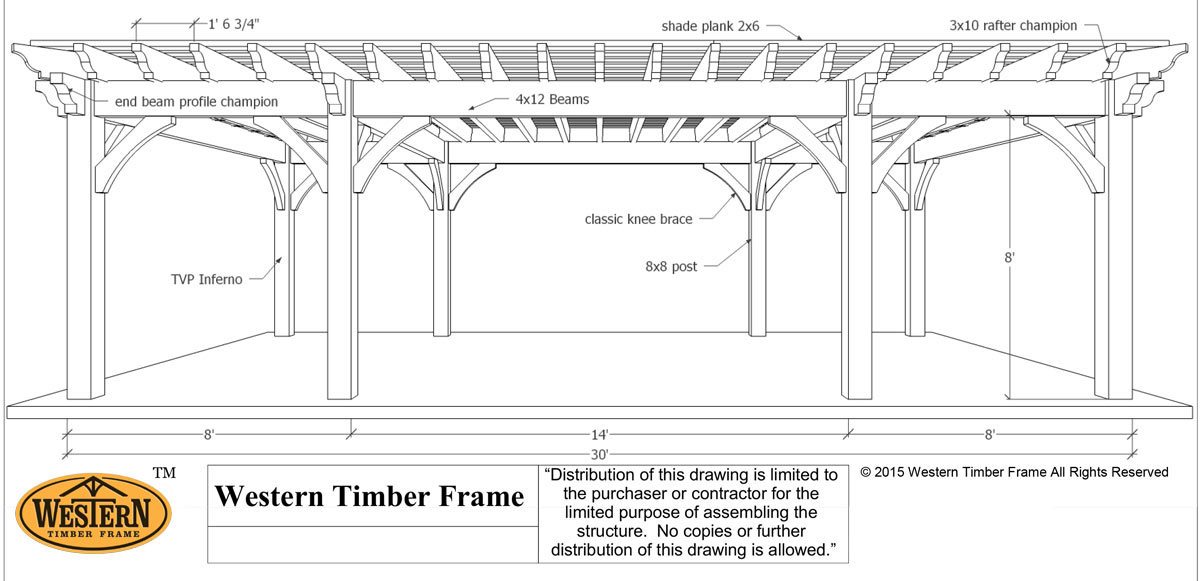

What Was in This Pergola Kit?

StructureFreestanding oversize pergola
Size16′ × 32′
PostsEight 8″ × 8″
WoodDouglas Fir
Beams4″ × 12″
Rafters3″ × 10″
Shade planks2″ × 6″
Knee bracesClassic, 3″ × 8″
Beam and rafter endsChampion, FullWrap™ roof
Height8′ to the bottom of the beams, 10′ to the top
PowerTimberVolt® Inferno® power post
StainEarly American

What Can You Host Under a 16′ × 32′ Pergola?

A pergola this size suits family reunions, weddings, business events, and community gatherings. For a look at what oversize timber structures can host, see the wedding at Standing Boy Creek Farms in Georgia, an event venue with Western Timber Frame structures.

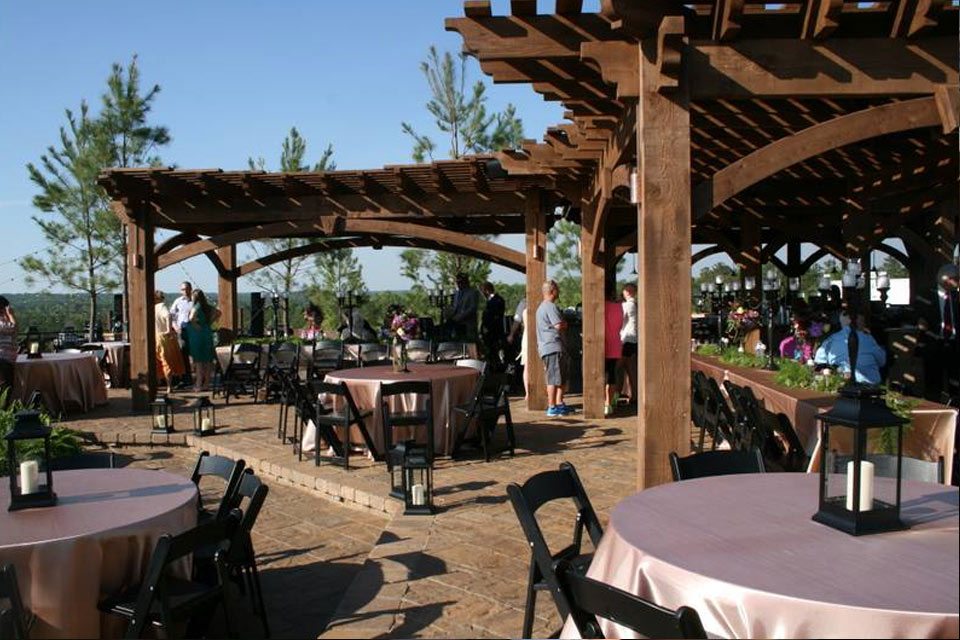

Wedding reception with round tables and lanterns set under large timber pergolas on a stone terrace at sunset
A wedding reception at Standing Boy Creek Farms.
Wedding guests gathered on a lawn among pine trees with a timber pavilion and gazebo behind them at dusk
Guests gathering at dusk.
Group of friends sharing a meal at a long wooden table under a dark timber pavilion with a ceiling fan
A long table in the shade.
Groomsmen in white shirts and suspenders waiting on a covered wooden porch while two little girls play nearby
Waiting for the ceremony.

Questions About Oversize Pergolas

How do you make a pergola oversize?

Add posts. This one uses eight posts instead of four to stretch one freestanding pergola to 32 feet long without breaking it into separate structures.

Why are the posts set near the ends?

Placing the posts closer to the ends spreads the visual weight and gives the long frame a balanced look from every side.

What is a FullWrap™ roof?

A FullWrap™ roof carries the decorative beam end profiles around all four sides, so the pergola looks finished from every view.

How tall is this pergola?

The bottom of the beams sits at 8 feet, standard head clearance, and the roof rises to about 10 feet.

What can a 16′ × 32′ pergola be used for?

It is large enough for family reunions, weddings, community events, and business gatherings, with room for long tables or several seating areas.
