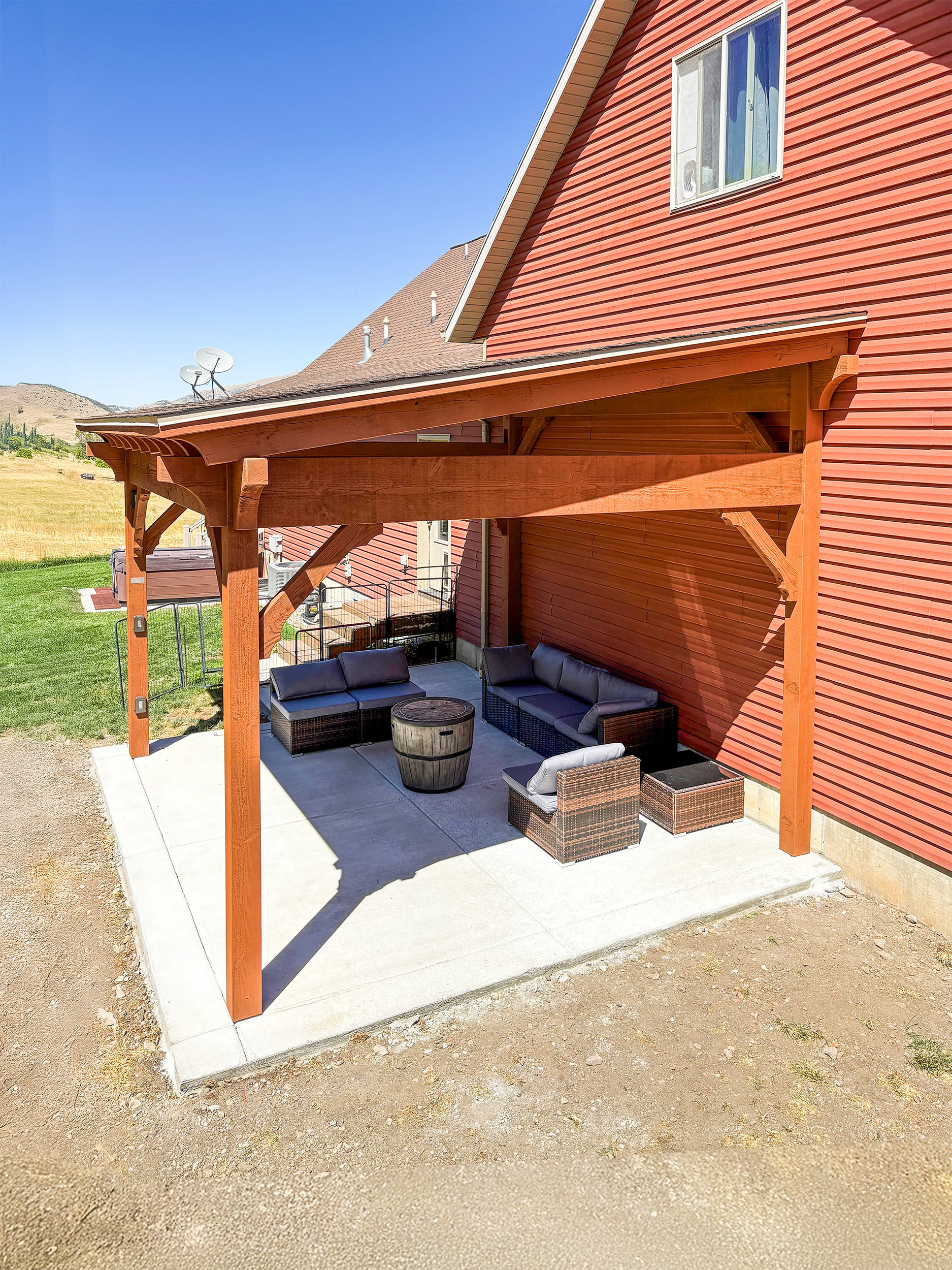

14×16 Timber Frame Cabana (Single-Slope, Shed-Style) — Project Profile
A Quick Walk-through
You wanted a space that felt effortless. This 14×16 timber frame cabana does exactly that. The shed roof throws reliable shade. The frame stands clean and true. You step onto the concrete and it just works—morning to evening, week after week.
At-a-Glance Specs
Brought together under the direction of Design Manager Robert Bernard, the cabana balances structure and style for everyday use.
- Series: 6000
- Overall roof: 14×16
- Planned footprint: 12×14
- Material: Douglas fir
- Finish: Rich Sequoia
- Style: Traditional, freestanding
- Beam profile: Crescent ends with soft curves
- Knee braces: Cove profile, sized for stiffness without bulk
- Clearance: ~96″ to bottom of support beam (comfortable headroom)
- Hardware: Knife plates (concealed at the base for a crisp look)
- Footings: Pre-poured (4)
- Roofing: Shingles
- Power: TimberVolt® Dragon integrated for outlets/lighting
The Homeowners
This structure was built for a family in rural Utah who wanted their back patio to stop being the place they walked past and start being the place they lived. They had the concrete. They had the view. What they needed was a structure that made the space feel finished — protected from the afternoon sun, ready for evenings, built to stay.
They chose the shed-style roof because they wanted full coverage without the visual weight of a gabled structure. They chose Rich Sequoia because it pulled warmth from the home’s existing red siding without competing with it. They added TimberVolt® because they knew they’d want a fan, and they knew they’d want lights, and they didn’t want to be running extension cords across a patio they were proud of.
The structure arrived on a freight truck. It went up in a weekend. By the following week, they were eating dinner under it every night.
You Can’t Buy Back Last Summer
Our fall calendar is 80% full. If you want your outdoor room ready for 2026, now’s the time. Schedule your free consultation.
| or Call (877) 870-8755
Why a Shed Roof
A single-slope, shed-style roof is one of the most functional roof configurations for a covered outdoor structure. Unlike an open-rafter pergola, a shed roof provides complete overhead coverage — every square foot of footprint underneath is protected from direct sun and rain. There are no gaps. No partial shade that shifts as the afternoon progresses.
For a 14×16 footprint used as a lounge or dining space, full coverage means the furniture stays dry, the space stays usable in light rain, and the temperature underneath stays significantly cooler than the open patio beside it. Heavy timber has substantial thermal mass — it absorbs heat rather than radiating it, so even on a 95-degree afternoon, the structure overhead isn’t adding to the heat load underneath. That’s a meaningful difference from metal or aluminum roof systems, which can radiate significant heat downward in direct sun.
The single slope also sheds water cleanly in one direction, which simplifies drainage planning and keeps the structure’s profile clean and low-profile when viewed from the house.
Why This Layout Works
The footprint. At 14×16, this structure covers 224 square feet — enough for a full lounge configuration with room to move. Two sofas, a coffee table, side seating, and clear walking paths on all open sides. It’s the difference between a space that looks furnished and one that functions furnished.
The orientation. The open face of this structure faces away from the home, which means guests seated inside look outward toward the yard rather than back at the house. The structure frames the view rather than blocking it. This is a layout decision that sounds simple and changes everything about how the space feels in use.
The roof pitch. The single-slope pitch on this structure runs front-to-back, with the high point at the home attachment and the low point at the outer beam. This keeps the structure visually integrated with the home’s roofline, directs water away from the house, and creates a slightly higher clearance at the entry point — making the space feel more open when you walk in than when you look at it from outside.
The post placement. Posts are positioned at the outer corners and at the home connection points, keeping the interior completely column-free. No posts interrupting the lounge layout. No structural members competing with furniture placement. The frame defines the edges of the space without dividing it.
The Details That Matter Over Time
EarthAnchor™ Structural Knife Plates. Each post base is fitted with a custom aluminum knife plate — concealed inside the timber, anchoring the post to the concrete footing, and creating a moisture barrier between the timber and the slab. This is the connection that gives the structure its 160+ mph wind rating and protects the base of each post from the ground-contact moisture that causes post deterioration in structures without this system.
Crescent Beam Profile. The Crescent profile is a smooth, simple curve cut into the exposed ends of the beams — a softer silhouette than the Champion or Axis Step, which suits the clean, low-profile character of a shed-roof structure. It adds architectural detail without competing with the roof’s geometry.
TimberVolt® Power Post System. Electrical wiring runs inside the posts — drilled through the center of the timber before it leaves our shop, with electrical boxes routed into the wood to accept standard fixtures. No exterior conduit. No visible wiring. The fan connection and lighting circuits are already there when the structure goes up; the electrician connects to the panel and walks away. This structure was built for evening use from day one, and the electrical infrastructure reflects that.
Rich Sequoia Finish. Two backrolled coats of Sherwin-Williams exterior stain, UV-rated and water-based, applied in our shop in Payson before the timber ships. Rich Sequoia is a light reddish-brown — warm enough to pull from the home’s red siding without matching it, substantial enough to photograph well in full sun. Touch-up stain ships with every kit.
Cove Knee Braces. The curved knee braces connecting posts to beams add lateral stability — preventing rack over time — while giving the structure a softer, more residential feel than straight-cut braces. For a lounge space built for long evenings, the visual character of the brace matters as much as its structural function.
Is a 14×16 Shed-Style Cabana Right for You?
This configuration works best when full overhead coverage is a priority, when the space will be used regularly in warm weather and you want it protected from light rain, and when you want a structure that reads as a finished outdoor room rather than a decorative shade element.
It works equally well freestanding on a concrete pad — as in this project — or attached to the home as an extension of an existing covered porch.
At 14×16, you’re in our Family Size tier, priced from $24,000 to $34,000 depending on series, species, and upgrades. This project includes the 8,000 Series (8×8 posts, 4×12 beams) and TimberVolt® — two factors that place it toward the mid-to-upper range of that tier.
If you’re considering a covered structure with full overhead protection, a shed-style cabana is one of the most functional and architecturally clean paths to get there. If you want partial shade and a more open feel, an open-rafter pergola in the same footprint gives you our 80%+ ShadePrint™ coverage with a lighter profile.
