Planning a 12′ × 20′ Timber Frame Oversize DIY Pergola

A 12′ × 20′ oversize timber frame pergola is a popular size for backyard entertaining. The 12′ × 20′ is the roof size; the footprint, post to post, is usually about 10′ × 18′. A typical kit includes four 8″ × 8″ posts, 4″ × 12″ beams, 3″ × 10″ rafters, 2″ × 6″ shade planks, and knife plates, all pre-cut and numbered so two people can raise it.

Dark 12 by 20 foot oversize timber pergola shading a backyard patio with lounge chairs and a grill beside a stucco home
A 12′ × 20′ oversize pergola over a patio.

Key Takeaways

  • Roof vs. footprint: 12′ × 20′ roof, about 10′ × 18′ post to post
  • Timbers: true-to-size 8″ posts and 4″ × 12″ beams
  • Easy layout: notched beams and drop-in rafters
  • Two people: pre-cut, numbered joints, no cutting on site

How Is a 12′ × 20′ Pergola Kit Designed?

Every kit is designed for its own space and the way the family wants to use it, so no two are exactly alike. The design team works with you on the size, height, style, and budget. The dimensions below are a typical starting point, and they can change to fit your yard.

Freestanding 12 by 20 foot timber pergola in Rich Sequoia stain over a concrete pad in a park-like backyard
A freestanding 12′ × 20′ in Rich Sequoia.

What Comes in a 12′ × 20′ Pergola Kit?

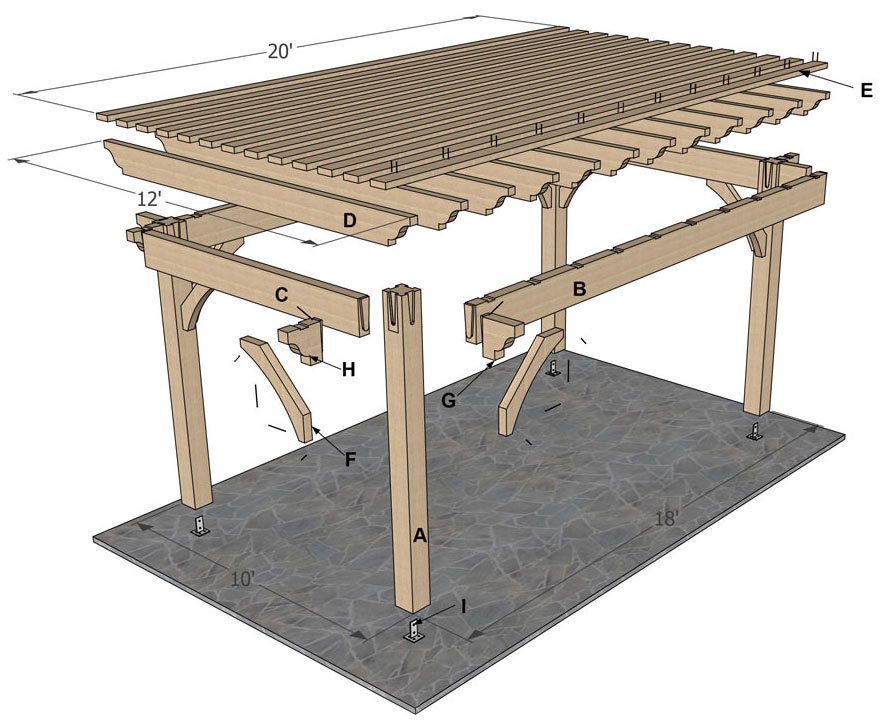

Labeled diagram of a 12 by 20 foot pergola kit showing the posts, beams, rafters, shade planks, braces, and knife plates
The parts of a 12′ × 20′ kit.
LabelPartThicknessWidthLengthQty
APost8″8″110″4
BNotched support beam4″12″202″2
CSupport beam4″12″106″2
DRafter3″10″144″12
EShade plank2″6″240″13
FKnee brace3″8″36″8
GBeam extension4″12″13″4
HBeam extension4″12″13″4
IKnife plate1/4″7″7″4

How Does the Drop-In Rafter Layout Work?

The support beams arrive already marked and notched for every rafter, so you never measure or work out the spacing. The rafters simply drop into their slots. Every joint is cut and numbered in the shop, and the timbers are true-to-size, so even an oversize kit can go up in as little as one Saturday afternoon. Each joint uses The Dovetail Difference®, a patented mortise and tenon dovetail joint (U.S. Patent 9,797,149 B2), and the posts anchor on EarthAnchor™ knife plates.

Craftsman in the shop carefully cutting joinery into a large timber before the pergola kit is test-fit and shipped
Joinery cut in the shop.

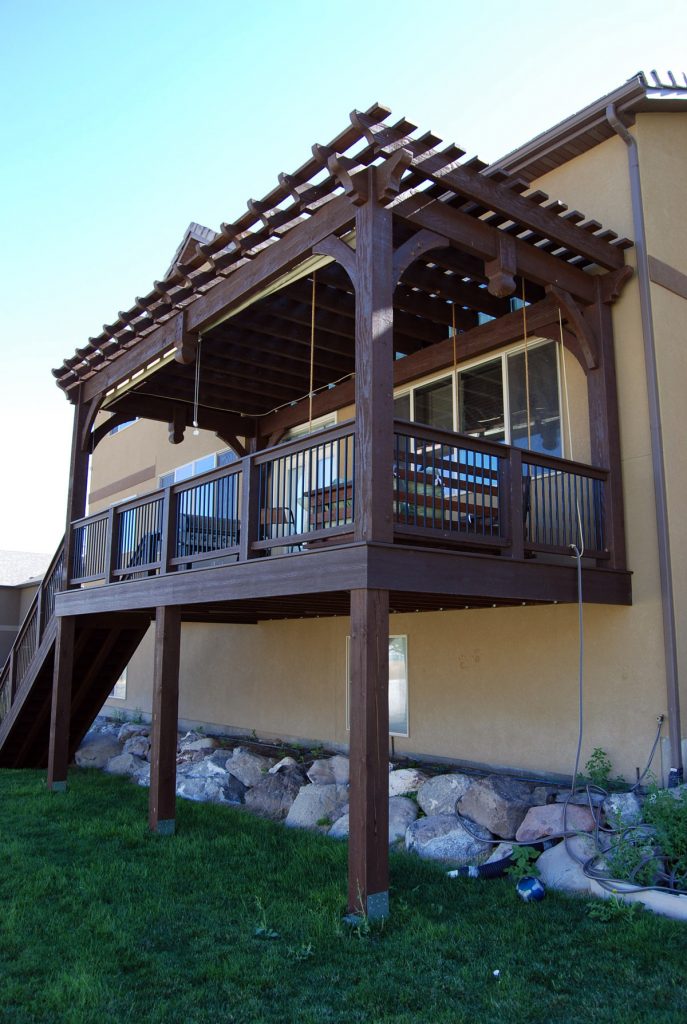

Dark timber pergola built over a raised second-story deck with railings on the back of a tan stucco home
A 12′ × 20′ over a raised deck.

Questions About 12′ × 20′ Pergola Kits

What size is a 12′ × 20′ pergola footprint?

The roof is 12′ × 20′. The footprint, measured post to post, is usually about 10′ × 18′, because the roof extends past the posts. Exact dimensions are set by your design.

How many people does it take to install a 12′ × 20′ kit?

Two people can raise it. Every joint is pre-cut and numbered in the shop, so there is no measuring or cutting on site.

How long does it take to install?

Many oversize kits go up in as little as one Saturday afternoon.

What is a drop-in rafter layout?

The support beams arrive notched for each rafter, so the rafters drop into place at the right spacing without measuring.

Are the timbers full size?

Yes. The timbers are true-to-size, so an 8″ × 8″ post measures a full 8″ × 8″.
