Pergola Shade Coverage: Why Heavy Timber Creates the Most Comfortable Shade
Quality pergola shade coverage comes down to how much coverage the roof provides, the type and mass of the material overhead, and whether it absorbs heat or reflects it back into the space below. A standard kit pergola — whether thin wood, aluminum, or vinyl — typically covers 40-50% of the space beneath it. Western Timber Frame’s ShadePrint™ standard averages 80-85% shade coverage depending on the structure’s orientation, time of day, and time of year, because the sun angle changes all three. That coverage comes from dense rafter spacing and wide shade planks across all four Timber Series — from 2×8 rafters and 2×4 planks in the 6,000 Series up to 6×8 rafters and 4×6 planks in the 12,000 — and the thickness of that timber does more than block light. It absorbs heat rather than passing it through, creating shade that is measurably cooler and more comfortable than what thinner materials provide at the same footprint. Adding privacy walls, lattice panels, or screens to any structure increases shade coverage even further and filters wind and light from the sides — not just overhead. The same timber mass advantage applies across every structure Western Timber Frame™ builds — pergolas, pavilions, gazebos, cabanas, arbors, and trellises all use the same heavy timber engineering, and the comfort difference holds at every scale.
You already know the difference between good shade and bad shade. You have felt it every time you walk across a parking lot in August and step under the concrete overhang of a building. The temperature drops. Your shoulders relax. Something changes that has nothing to do with how dark the shadow is on the ground.
Now think about standing under a patio umbrella in the same parking lot. You are technically in shade. The shadow is darker, actually, than the one under the building. But it does not feel the same. You are still hot. You are still looking for the door.
The difference is not how much light gets blocked. The difference is what is overhead — how much of it there is, and what it is doing with the heat. A concrete overhang has mass. It absorbs heat slowly. It changes the air beneath it. An umbrella blocks light but does nothing to the temperature around you. One is shade. The other is just shadow.
Two families on the same street in Scottsdale learned this the hard way. Same lot size, same orientation, same July sun. One family eats dinner outside every night. The other stopped trying in May. Both have pergolas. Both cover roughly the same square footage of patio. But stand underneath them and you would never confuse one for the other.
The first family’s pergola is heavy timber — thick beams with real mass overhead, the kind of structure that changes the air beneath it the way that concrete overhang does. The second is a kit pergola with thin rafters and narrow slats. It makes a pattern of light on the ground. It does not make shade you want to sit in.
Coverage matters. But your family measures something else: whether they are still outside at dinner.
Pergola shade coverage ranges from 20% to 80-85% depending on three things most companies never talk about: rafter density, shade plank width, and how much mass is actually overhead. A standard kit pergola whether aluminum, vinyl, or light-frame wood with 2×4 rafters and narrow slats — delivers roughly 40-50% coverage. That is enough to cast striped shadows on the patio but not enough to create real, usable shade. Western Timber Frame’s ShadePrint™ standard averages 80-85% shade coverage, comparable to standing under a large shade tree, because the design decisions happen before the kit ships: more rafters, wider planks, heavier timber.
And coverage is only half the answer. A thin 2×4 rafter blocks some light but has almost no thermal mass — the shade underneath still feels warm and exposed. A heavy 3×10 timber absorbs heat into its mass gradually, moderating the air temperature beneath it the way a thick stone wall keeps a room cool. And aluminum does the opposite — it conducts heat 1,500 times faster than wood (American Wood Council data) and radiates it back down onto the people underneath. In states where summer afternoons regularly exceed 100°F, these differences are the gap between shade that feels like standing under a tree and shade that still feels like standing in the sun with a screen overhead.
The Short Version
- Most pergola kits — whether thin wood, aluminum, or vinyl — deliver 40-50% pergola shade coverage.
- Western Timber Frame’s ShadePrint standard averages 80-85% shade coverage, comparable to standing under a mature shade tree
- Shade comfort depends on timber mass, not just coverage percentage — thicker timber absorbs heat and creates noticeably cooler shade than thin rafters blocking the same amount of sun
- Western Timber Frame™ builds four Timber Series — 6,000, 8,000, 10,000, and 12,000 — all four achieve 80-85% ShadePrint. The series you choose is a design decision, not an upgrade
- Aluminum conducts heat 1,500 times faster than wood (American Wood Council data) — what is overhead is not just a shade question, it is a safety question
- Metal surfaces in direct sun reach 130-150°F and can cause second-degree burns in three seconds (Journal of Burn Care & Research)
- The evaluation framework at the end of this article works for any pergola company — not just ours
The Math Behind Shade: Rafter Density and Shade Plank Width
The formula is simple. The wider your rafters and shade planks, and the closer their spacing, the higher your shade coverage percentage. What changes the outcome is which numbers a company actually designs to.
Rafter Width and Spacing
A 2×4 rafter — the standard in most wood pergola kits you will find at Home Depot, Wayfair, or Costco — is 1.5 inches wide. Space those 12 inches apart (on center) and you get roughly 14% coverage from the rafters alone. Western Timber Frame’s four Timber Series range from 2×8 rafters in the 6,000 Series up to 6×8 rafters in the 12,000 — starting at 1.5 inches wide and going up to 5.5 inches. Same 12-inch spacing with a 2.5-inch rafter gives you 23% coverage from rafters alone, before shade planks are added. The heavier the series, the more coverage each individual rafter provides.
But coverage percentage is only half the story. A 2×4 rafter has so little mass that solar heat transfers through it quickly — thermal lag increases with the square of thickness, so a thinner piece of wood reaches equilibrium on the underside far sooner than a thicker one (USDA Forest Products Laboratory, Wood Handbook, Chapter 4). There is simply not enough wood in a 2×4 to absorb and hold meaningful thermal energy before it reaches the surface below. A heavy timber rafter has real mass. That mass works like a heat sink in reverse: it absorbs solar energy slowly into its interior, delaying heat transfer to the underside for hours rather than minutes. The air underneath a heavy timber pergola is measurably cooler and steadier than the air underneath a thin-frame structure with the same footprint, because the timber itself is doing thermal work that a 2×4 simply cannot do.
Most aluminum and vinyl kits use narrow extruded profiles spaced even farther apart — designed to look like a pergola, not to function as one. And thin wood kits, while they avoid the heat-conduction problem of metal, do not have the mass to create that cooler-underneath effect. The heavy rafter loads across all four Timber Series are carried by The Dovetail Difference® — patented CNC-cut mortise-and-tenon joinery (US Patent No. 9,797,149 B2) independently tested at 500% stronger than standard fastener connections. That structural integrity is what allows dense, heavy rafter spacing without the joint failures that lighter systems risk over time.

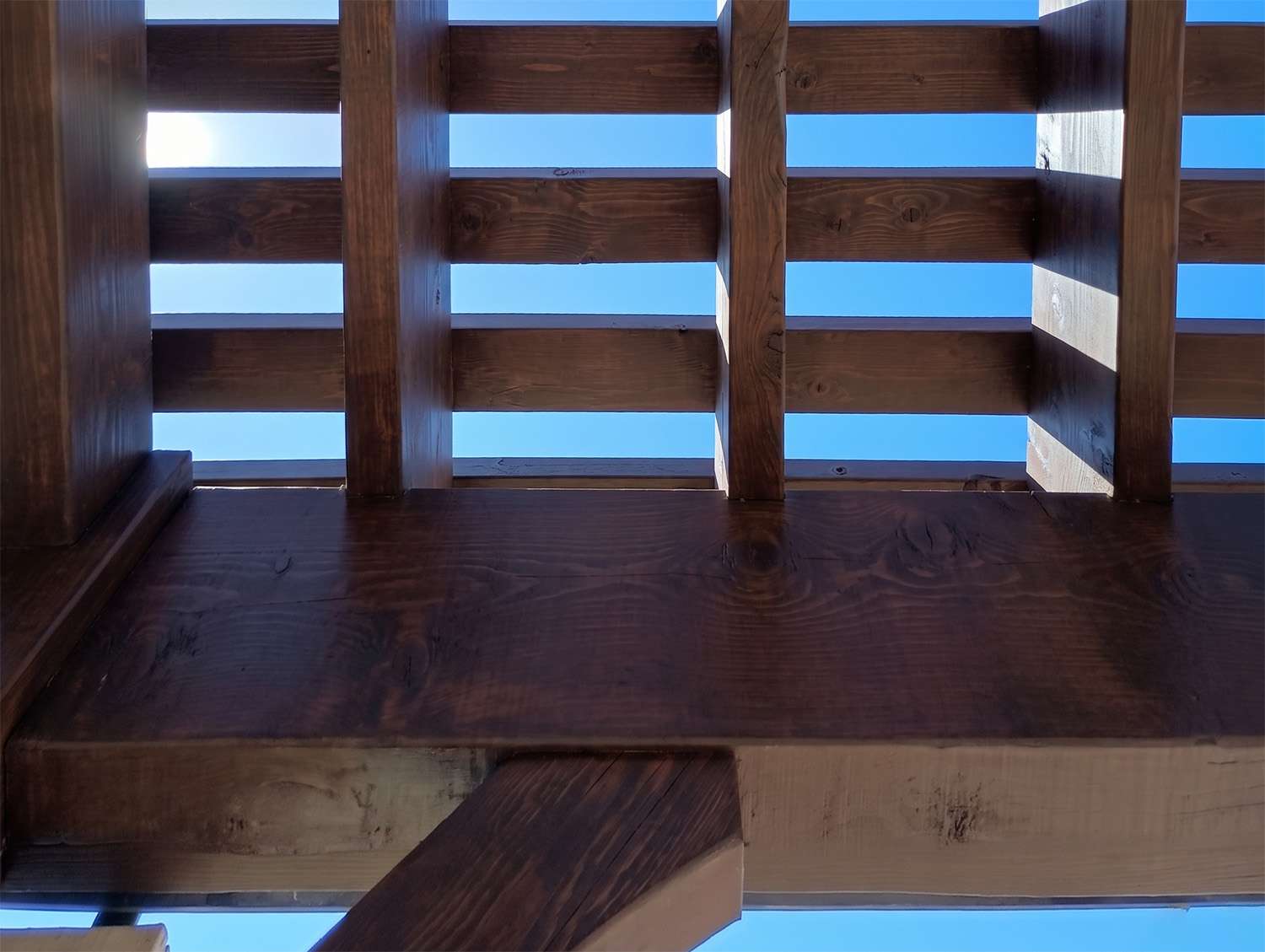

Shade Plank Width
This is where coverage either works or it doesn’t. The 8,000 Series uses 2×6 shade planks — each one 5.5 inches of real coverage across the top (see what’s actually in a custom timber pergola kit for the full component breakdown). The 6,000 Series uses 2×4 shade planks at 3.5 inches wide. That 2-inch difference, multiplied across every plank on the structure, is the gap between 55-65% and 80%+. Most kit pergolas ship with 1×4 or 1×3 slats. Those are decorative. They create a pattern of light on the ground. They do not create shade you can sit under at noon in July.
What ShadePrint™ Actually Measures
ShadePrint™ is our metric for usable shade — the percentage of coverage a pergola delivers as the sun tracks overhead throughout the day. Not just at noon. Not just when the sun is directly above. As it moves.
A pergola that reads 50% coverage at noon might read 35% at 3:00 PM when the sun angle drops and light pours through the gaps. ShadePrint™ accounts for that movement. Western Timber Frame’s standard kits average 80%+ ShadePrint™, which means your guests are in real shade through the full arc of an afternoon gathering (we cover sizing and shade planning in depth in how to create the perfect pergola for outdoor gatherings) — not just during the narrow window when the sun is directly overhead.
The number to compare: most aluminum, vinyl, and light-frame kits land between 40-50% effective shade coverage when you account for sun angle. That gap — 40% vs. 80% — is the difference between needing an umbrella under your pergola and not needing one.
If you want to see the ShadePrint™ math for your specific space — rafter count, plank width, coverage percentage at your latitude — our design team can walk you through it before you commit to anything.
|
Factor |
WTF Timber Frame |
Typical Wood Kit (2×4/4×4) |
Typical Aluminum / Vinyl Kit |
|---|---|---|---|
|
Rafter size |
2×8 to 6×8 |
2×4 or 2×6 |
1″-2″ extruded profiles |
|
ShadePrint™ coverage |
80-85% |
40-55% |
40-50% |
|
Posts |
6×6 to 12×12 |
4×4 or 6×6 |
2″-3″ extruded profiles |
|
Beams |
3×10 to 8×12 |
2×6 or 2×8 |
1″-2″ extruded profiles |
|
Rafter size |
2×8 to 6×8 |
2×4 or 2×6 |
1″-2″ extruded profiles |
|
Shade plank size |
2×4 to 4×6 |
1×3 or 1×4 slats |
1×3 or 1×4 slats (if included) |
|
Knee braces |
2×8 to 6×8 |
None or decorative |
None or decorative |
|
Kit weight (14×22) |
2,925 – 9,035 lbs |
200-600 lbs |
150-400 lbs |
|
Thermal conductivity |
0.7-1.0 Btu |
0.7-1.0 Btu |
1,500 Btu (aluminum) |
|
Shade comfort feel |
Noticeably cooler underneath — real thermal mass overhead |
Less thermal mass to absorb heat |
Aluminum conducts heat 1,500x faster than wood |
|
Surface temp in 95°F sun |
Close to air temperature |
Close to air temperature |
130-150°F+ |
|
Safe to touch in July |
Yes |
Yes |
Burn risk — see data below |
|
Custom sizing |
Custom-sized to your exact dimensions |
Fixed catalog sizes |
Fixed catalog sizes |
|
Best for |
Real shade comfort, hot climates, outdoor living spaces |
Budget entry point, mild climates |
Adjustable louvers, rain protection |
The Four Timber Series: Which One Fits Your Project
Western Timber Frame™ builds four Timber Series. Every series uses the same engineering standards, the same Dovetail Difference™ joinery, and the same finish options — the difference is timber mass and the visual scale it creates. Your design consultation determines which series fits your space.
|
Series |
Posts |
Beams |
Rafters |
Shade Planks |
Knee Braces |
Kit Weight (14×22) |
Board Feet |
|---|---|---|---|---|---|---|---|
|
6,000 |
6×6 |
3×10 |
2×8 |
2×4 |
2×8 |
2,925 lbs |
886 |
|
8,000 |
8×8 |
4×12 |
3×10 |
2×6 |
3×8 |
4,561 lbs |
1,382 |
|
10,000 |
10×10 |
6×12 |
4×10 |
3×6 |
4×8 |
6,556 lbs |
1,988 |
|
12,000 |
12×12 |
8×12 |
6×8 |
4×6 |
6×8 |
9,035 lbs |
2,738 |
Thermal conductivity units: Btu·in/(h·ft²·°F). Source: American Wood Council.
All four series achieve 80-85% ShadePrint. A 6,000 Series pergola delivers the same shade coverage as a 12,000. The difference is how much timber mass is overhead, the visual presence of the structure, and how the scale relates to your home.
What About Louvered Aluminum Pergolas?
Fair question. Louvered aluminum systems — brands like Azenco, StruXure, and Renson — offer motorized slats that rotate for adjustable shade, and they can close fully for rain protection. That is a real advantage if adjustable shade and waterproofing matter more to you than anything else.
The trade-off: you get adjustable coverage, but the structure overhead is still aluminum. In a Phoenix or Houston summer, those louvers — open or closed — conduct heat at 1,500x the rate of wood. The posts are still metal. And the shade, while adjustable, is coming from a material that radiates heat rather than absorbing it. For families in hot states, the question becomes whether adjustable angles outweigh the thermal penalty of the material itself.
Both options are legitimate. The right answer depends on your climate and what your family actually does under the structure. If shade comfort and touch-safety matter most, heavy timber wins the physics. If rain protection and motorized angle control are non-negotiable, louvered aluminum earns its place.
One detail that changes the conversation: Western Timber Frame™ structures with the TimberVolt® Power Post System can integrate ceiling fans directly into the timber — wiring concealed inside the posts, no visible conduit. In hot climates, a fan under dense shade moves air across that naturally cool timber surface and makes the shade feel even deeper.
Browse handcrafted heavy timber pavilions built to create beautiful, long-lasting outdoor living spaces.
Beyond Pergolas: How the Timber Mass Advantage Works Across Every Structure
Everything in this article so far applies to pergolas — open-rafter structures where shade coverage depends on rafter density and plank width. But pergolas are not the only answer, and for some families they are not the right one. The timber mass principle applies to every outdoor structure, but each type earns its place for a different reason.
What pergolas do best: shade with airflow. A pergola’s open rafter design lets breeze move through the structure naturally. When you combine that airflow with the thermal mass of heavy timber absorbing heat overhead, you get shade that is both cool and ventilated — the air circulates instead of sitting still. That is the real advantage of 80-85% ShadePrint™ with an open design. You are getting dense, comfortable shade without sealing off the air movement that makes outdoor space feel like outdoor space.
What pavilions and gazebos do best: full protection. A solid roof over a heavy timber frame means 100% shade coverage plus rain protection — no gaps, no sun angle to worry about, no weather to plan around. The trade-off is that a solid roof can trap heat underneath if the structure is not built with enough mass to moderate it. This is where heavy timber matters even more in a roofed structure than in a pergola. The thick beams act as a thermal buffer between the roof and the living space below, absorbing heat gradually instead of letting the roof radiate it straight down. In a thin-frame or aluminum pavilion, that trapped air pocket becomes an oven. In a heavy timber pavilion, the mass of the beams keeps it comfortable. Adding ceiling fans through the TimberVolt Power Post System reintroduces the airflow that a pergola gets naturally — wiring concealed inside the posts, no visible conduit.
What cabanas do best: a slanted-roof shade structure with character. A cabana uses the same heavy timber frame with a slanted roof — a clean, architectural profile that works especially well for pool areas, patios, and spaces where you want full overhead coverage with an open feel on the sides. The timber mass keeps the space underneath comfortable the same way it does in a pavilion, and the slanted roof sheds rain naturally. For families who want a dedicated outdoor living area that feels like a room without being enclosed, a cabana delivers that.
Lattice panels, privacy walls, and shade screens can be added to any of these structures — pergolas, pavilions, gazebos, or cabanas. These are not the lightweight screens you find at big-box stores. They are built to the same heavy timber scale as the structure itself — massive, substantial panels that match the weight and character of the beams they attach to. Lattice filters light and wind while adding dappled pattern and airflow that solid walls would block. Privacy walls create a more enclosed feel for spaces near property lines, pool areas, or anywhere your family wants screening without giving up the outdoor experience. And because of their size and mass, they add real shade coverage from the sides — not just overhead.
What arbors and trellises do best: shade at a smaller scale. A heavy timber arbor over a garden gate or walkway creates a noticeably different experience than a thin-frame version of the same shape. The mass of the wood changes the feel of passing through it — cooler, more grounded, more like entering a space than just walking under a frame. These are smaller structures, but the principle holds.
Neither type is better on its own. Pergolas win on airflow and open-air shade comfort. Pavilions and gazebos win on full weather protection. Cabanas win on privacy. That is why combining two structure types on the same property has become one of our most popular designs — a pergola over the dining area for open-air shade and a pavilion over the outdoor kitchen for full rain protection, or a pergola off the back of the house with a cabana by the pool. Each structure does what it does best, and the heavy timber ties them together visually. Western Timber Frame™ builds all of them — pergolas, pavilions, gazebos, cabanas, arbors, and trellises — using the same heavy timber and the same engineering.
Why the Shade Feels Different: Timber Mass and the Comfort Question
Here is the part that gets left out of every pergola comparison, whether you are looking at aluminum or thin wood kits.
Shade comfort is not just about how much sunlight gets blocked. It is about what the material overhead does with the heat it absorbs. Three different pergola materials create three very different experiences underneath.
Heavy timber (3×10 rafters, 2×6 planks): A thick beam has real thermal mass — the same principle that makes a stone cellar cool in summer. The wood absorbs solar energy slowly into its interior, moderating the temperature of the air beneath the structure. You feel this the moment you step under a heavy timber pergola on a hot day. The shade feels deeper, steadier, and noticeably cooler than the ambient temperature suggests. That is not perception — it is physics. The mass of the timber is doing work.
Thin wood kits (2×4 rafters, 1×3 slats): Wood still conducts heat slowly — that is an advantage over metal at any thickness. But a 2×4 rafter does not have enough mass to store meaningful thermal energy. The sun heats it through quickly, and the shade underneath, while safe to touch, still feels warm and exposed. It is blocking light without meaningfully changing the air quality beneath it.
Aluminum: Aluminum is the material of choice for cookware precisely because it conducts heat so efficiently. That same property is the reason it is the wrong material to put over your family’s heads on a hot day. It conducts heat at 1,500 Btu·in/(h·ft²·°F) versus wood’s 0.7-1.0 — roughly 1,500 to 2,143 times faster. According to the American Wood Council, wood’s thermal conductivity is “about two to four times that of common insulating material,” putting it closer to insulation than to metal on the conductivity spectrum. An aluminum pergola beam in direct summer sun conducts that heat to its surface almost instantly. The air beneath it is warmer. And the structure itself becomes something you cannot safely touch.
The difference between standing under heavy timber and standing under a thin-frame pergola of any material is the difference between shade that shelters and shade that just screens. The mass of the timber changes the feel of the space, not just the light level.
The Numbers Nobody Talks About
According to a study published in the Journal of Burn Care & Research, metal surfaces in direct sunlight routinely reach 130°F to 150°F or higher when air temperature is around 90°F. The U.S. Consumer Product Safety Commission warns that metal surfaces exposed to direct sun can burn a child’s skin in seconds. The Burn and Reconstructive Centers of America confirms that skin begins to burn at 111°F and that a surface at 140°F can cause a second-degree burn in as little as three seconds.
Children under two are at highest risk because their skin is thinner and they have not learned to pull away quickly.
The risk extends to pets. The American Kennel Club reports that surfaces reaching 125°F or higher can burn a dog’s paw pads in 60 seconds.
A wood pergola beam under the same conditions stays close to air temperature and transfers heat slowly enough that it feels warm — not hot, and nowhere near a burn threshold. That is not a marketing claim. That is what thermal conductivity means in practice.
The States Where This Matters Most
If you live in Texas, California, Arizona, Florida, Nevada, New Mexico, Georgia, Alabama, Mississippi, Louisiana, South Carolina, North Carolina, Tennessee, Arkansas, Oklahoma, or Hawaii — anywhere afternoon temperatures regularly exceed 95°F — the material overhead is not a cosmetic decision. It is a safety decision.
Western Timber Frame’s fastest-growing markets are in these states, and the heat-safety question is a primary reason families are choosing wood over metal.
If you grew up with metal slides at the park, you already know what happens when the sun heats bare metal all afternoon. That same physics applies to the posts and beams of an aluminum pergola. A client in San Antonio put it plainly: “My kids run through the backyard barefoot and grab whatever’s in reach. I needed a structure I didn’t have to police.” That is the shade conversation nobody has at the showroom. The brochure shows the overhead view. The family lives at contact level.
Shade and UV Protection: What the Research Shows
Shade is not just about comfort — it is measurable health protection. A study published in the journal Environmental Health found that shade structures reduce ultraviolet radiation exposure by 50%. The CDC lists shade as a primary sun protection strategy for reducing skin cancer risk, and the EPA recommends seeking shade during peak UV hours (10 AM to 4 PM).
The question worth asking is not whether a pergola provides shade. The question is whether the shade it provides is dense enough to be functional UV protection — or just decorative pattern on the ground.
At 40-50% coverage, light is filtering through. At 80-85%, you are under real cover. The ShadePrint™ difference is a UV protection difference. And for families weighing whether a pergola adds real value, shade that functions as health protection is part of the ROI equation.
Custom Sizing: The Shade Coverage Detail Most People Miss
Most pergola companies sell fixed standard sizes — 10×10, 12×12, 14×14 — and you pick whichever catalog dimension is closest to your space. The leftover gap between the structure and your intended shade zone? That is unshaded square footage you paid for but did not get.
Because Western Timber Frame builds custom, we size to your backyard’s exact dimensions, including custom shapes most catalogs cannot make. The structure fits the home. The home does not conform to the catalog. That means the shade footprint matches the living space you actually use — not the nearest standard dimension.
What to Ask Any Pergola Company Before You Buy
This evaluation framework works for any manufacturer, not just Western Timber Frame™. These are the numbers that tell you whether you are getting real shade or a decorative frame. 1. What is the shade coverage percentage? Ask for the actual number. If they cannot give you one, they have not engineered for shade.
- How many rafters, and what size? More rafters at wider dimensions = more coverage. 3×10 rafters block substantially more light than 2×4 lumber or 1×2 aluminum extrusions.
- What size are the shade planks? 2×6 planks close far more gaps than 2x4s, and 2x4s close far more than 1×3 slats. Ask for the actual dimensions.
- How thick is the timber? Shade comfort is not just about coverage — it is about mass. A thin 2×4 rafter blocks light but does not moderate the air temperature underneath. A heavy 3×10 beam absorbs heat and creates noticeably cooler shade. Ask about the actual timber dimensions, not just the footprint.
- What is the material’s thermal conductivity? Wood sits at 0.7-1.0 Btu. Aluminum sits at 1,500 Btu. That number tells you whether the structure overhead is an insulator or a radiator.
- Can I touch the structure in July? If the answer involves hedging, that is your answer.
- Is the structure custom-sized or catalog-fixed? Standard sizes leave shade gaps. Custom sizing covers the space you actually use.
If a company’s shade coverage is in the 40-50% range — whether that is a thin wood kit or an aluminum frame they are selling you a structure. If it is 80-85% with heavy timber overhead, they are selling you comfortable shade.
Pergola Shade Questions Answered
The Shade Your Family Actually Lives Under
Most pergola comparisons stop at aesthetics — which profile looks best, which finish requires less maintenance, which catalog photo matches your Pinterest board. Those are real considerations. But they are not the whole picture.
The whole picture is what happens at 3:00 PM on a Saturday in July when your family is outside and the sun is doing what it does. The shade coverage number tells you whether they stay or go in. The timber thickness tells you whether the shade actually feels comfortable or just looks like shade from above. And the thermal conductivity number tells you whether what is overhead is helping or making it worse.
Whatever you are considering — heavy timber, thin wood kits, aluminum, vinyl — the questions are the same. Ask for the rafter count, the plank width, the actual timber dimensions, and a shade coverage percentage. Those numbers will tell you more about how a structure will perform in your backyard than any catalog photo.
Coverage is a number. Comfort is what your family feels when they stop thinking about the sun and start enjoying the afternoon. That is the difference heavy timber makes — and it is the difference you will notice the first time you sit underneath it.
You already know what matters to your family.
Tell us what you are working with — the space, the climate, the way you actually live outside — and we will help you figure out if we are the right fit. If we are not, we will tell you that too.
