Pergola Permit Engineering: Why Stamped Structural Drawings Get Your Project Approved
Pergola permit engineering determines whether your permit application takes 1–3 weeks or 5–13 weeks — and whether it costs you $0 extra or $500–$2,000 for a third-party engineer you didn’t plan on hiring. When a manufacturer engineers every structure to code from the start, stamped PE drawings are available when your building department requires them — no scrambling, no hiring an outside engineer to reverse-engineer a box of lumber. Western Timber Frame™ designs and engineers every project to structural code standards, with stamped drawings available on request, because the engineering work is already done before the first timber is cut. Across 7,000+ structures, clients often report smooth permit approvals when the engineering is done upfront while homeowners with generic kit pergolas spend weeks chasing down an engineer after the fact.
What You’ll Learn
- Five questions to ask any pergola company about their engineering — the answers tell you everything
- Stamped engineering drawings are the one of the most common documents building departments request
- The IRC (International Residential Code) sets the baseline, but your local AHJ (authority having jurisdiction) decides what flies and what doesn’t
- Generic “standard plans” stamped in one state may not satisfy your building official site-specific engineering is what prevents rejections
- A manufacturer that engineers every structure to code can provide stamped drawings when you need them — because the engineering already exists
- The real cost of missing engineering isn’t the $500-$2,000 for a structural engineer — it’s the 4-8 week delay while your project sits in limbo
This article focuses on the engineering piece specifically. For the full permitting process from start to finish, see our Pergola Permit Guide.
What Building Departments Actually Require for a Pergola Permit
Every jurisdiction is different, but the documents building officials request fall into a predictable pattern. The IRC (International Residential Code), published by the ICC (International Code Council at iccsafe.org), provides the baseline that most U.S. municipalities adopt — sometimes with local amendments that make requirements stricter.
Here is the typical permit submission package:
Standard documents (almost always required):
- Scaled site plan showing the structure’s location, property lines, and setback distances
- Plan and elevation drawings with dimensions, heights, and material specifications
- Footing and foundation details (depth, diameter, reinforcement)
- Product cut sheets for structural members (post size, beam span, rafter spacing)
Frequently required (depends on jurisdiction and project scope):
- Stamped structural engineering drawings — calculations sealed by a licensed PE proving the structure meets code for wind, snow, seismic, and gravity loads
- Connection details showing how posts attach to footings and beams attach to posts
- Electrical plans if integrated lighting or power is included
Sometimes required:
- Soil analysis or geotechnical report
- HOA architectural approval letter
- Contractor licensing documentation
The pattern is clear: the bigger, taller, or more complex the structure, the more engineering documentation building departments demand. And “complex” includes attached pergolas (ledger-to-house connections), structures over 200 square feet, anything in a high-wind or heavy-snow zone, and projects requiring electrical permits.
Why Structural Engineering Is Critical to Permit Approval
A site plan shows where your pergola goes. Engineering drawings prove why it won’t fall down.
Building officials aren’t looking at your pergola drawings to admire the beam profiles. They’re verifying a load path — that every pound of dead load, live load, wind uplift, and lateral force has a continuous, calculable route from the roof structure through the beams, down the posts, through the connections, into the footings, and into the ground. If any link in that chain is missing or unproven, the permit gets denied. Stamped structural drawings are a licensed Professional Engineer‘s certification that the load path is complete and code-compliant. According to ASCE 7-22 (the American Society of Civil Engineers’ standard for minimum design loads, adopted by reference in the IBC and IRC), every structure must be designed to resist:
- Wind loads specific to your geographic location and exposure category
- Snow loads based on your ground snow load and roof geometry
- Seismic loads determined by your site’s spectral acceleration values
- Dead and live loads from the structure’s own weight and any expected use
A PE’s stamp on those calculations tells the building official: I’ve verified this. My professional license is on the line. That’s what gets permits approved.
Without it, the building official is left with a set of nice-looking drawings and no professional assurance they meet code. The most common outcome: a Request for Information (RFI) asking for engineering — and your project goes to the back of the queue while you scramble to find a structural engineer who knows timber construction.
The Real Cost of Missing Engineering
The sticker price of stamped engineering drawings ranges from $500 to $2,000+ depending on complexity and your location. Some manufacturers charge $250-$500 as an add-on. Others don’t offer engineering at all.
But the real cost isn’t the engineering fee. It’s the delay.
When a building department sends back an RFI for missing engineering:
- Finding an engineer — not every structural PE specializes in timber or outdoor structures. Locating one familiar with wood design per the American Wood Council’s National Design Specification (NDS) can take 1-3 weeks in some markets.
- Getting the work done — a structural engineer reviewing a project cold (no familiarity with the manufacturer’s connection details, hardware, or material specs) needs time. Two to four weeks is typical.
- Resubmission and re-review — your revised application goes back into the building department’s queue. In busy jurisdictions, plan review takes another 2-6 weeks.
- Total delay: 5-13 weeks — that’s a full season of outdoor living lost because a document was missing from the original submission.
Compare that to submitting a permit application with engineering already done. Many jurisdictions process complete applications in 1-3 weeks. Some offer same-day over-the-counter approval for well-documented projects.
The difference isn’t luck. It’s preparation.
Generic Stamps vs. Site-Specific Engineering
Not all stamped drawings are equal, and this is where many homeowners get caught off guard.
Some pergola companies offer “standard engineering” — a set of generic structural calculations stamped by a PE in one state (often Florida, because Florida’s wind code is among the strictest). The logic: if it passes Florida wind loads, it passes everywhere.
The problem: building officials in your jurisdiction may not accept out-of-state stamps. And even when they do, generic calculations often fail to account for:
|
Factor |
Generic stamp |
Site-specific engineering |
|---|---|---|
|
Wind speed |
Uses one value (often 175 mph for Florida) |
Calculated for your exact address and exposure category |
|
Snow load |
Often ignores or uses minimal value |
Uses your local ground snow load per ASCE 7-22 |
|
Seismic zone |
Typically designed for low-seismic only |
Accounts for your site’s spectral acceleration |
|
Soil conditions |
Assumes standard bearing capacity |
Can be adjusted for your specific soil type |
|
Attachment method |
Freestanding only |
Covers attached (ledger) or freestanding configurations |
|
Custom dimensions |
Only covers standard catalog sizes |
Matches your exact structure dimensions |
|
Local amendments |
Doesn’t account for them |
PE familiar with local code amendments addresses them |
You can look up your exact wind speed, snow load, and seismic values for free at the ATC Hazards by Location tool →
A generic Florida stamp on a 10×12 catalog pergola may work fine in suburban Phoenix. But try submitting it for a custom attached pergola in Park City with 60 psf ground snow load and a seismic design category D — and the building official will hand it back with a list of deficiencies longer than the drawings themselves.
Ready to talk through your project?
Whether you want to permit, hold off for now, or you’re still deciding, we’ll walk you through what’s typical for your city and design a structure that’s built — and documented — to the same standard either way. Start with a free design consultation.
How a Manufacturer’s Engineering Changes the Permit Game
Here is the question that separates pergola companies with real engineering from ones selling you a box of lumber with a pretty picture:
“Does your company engineer every structure to code — and can you provide stamped drawings when my building department requires them?”
The answer divides the market into three tiers:
Tier 1: No engineering at all. Big-box kits, Amazon pergolas, most budget aluminum. You’re on your own for permits. If your building department requires engineering, you hire a structural engineer at your expense ($500-$2,000+) and hope they can reverse-engineer the connection details from whatever assembly instructions came in the box.
Tier 2: Generic stamped drawings available. Some mid-range manufacturers offer standardized engineering stamped in one state, usually for an additional fee ($250-$500). It covers their standard catalog sizes. If your project is custom-sized, attached to your house, or in a high-load zone, you’re back to Tier 1.
Tier 3: Engineered to code from the start. The manufacturer designs and engineers every structure to meet structural code requirements as part of the build process — not as an afterthought. When your building department needs stamped drawings, they’re available because the engineering already exists. The PE isn’t starting from scratch; they’re stamping work that was done before the first cut was made.
Western Timber Frame operates at Tier 3. Every structure is engineered to code as part of the design and manufacturing process. The same precision that drives the CNC-cut Dovetail Difference joinery is informed by the same structural engineering that your building department wants to see. When your building department requires a wet-stamped review, it’s handled by a licensed outside engineer working from that already-complete engineering — provided only when it’s genuinely required, as an added cost we clear with you first, and never as a scramble.
That’s the difference between a manufacturer that builds to code and one that builds to a catalog.
What an Engineering-Ready Manufacturer Provides
Because Western Timber Frame is a manufacturer — not a retailer reselling someone else’s product — the engineering is woven into the manufacturing process. The same CNC precision that cuts The Dovetail Difference® joinery to exact tolerances is driven by structural calculations that account for the loads your specific project needs to handle.
When your building department requires documentation, a Tier 3 manufacturer can provide:
- Structural calculations showing the load path from roof to footing — wind, snow, seismic, and gravity
- Plan view and elevation drawings with all structural members, dimensions, and connection locations
- Connection detail sheets specifying proprietary joinery (like The Dovetail Difference), foundation hardware (like EarthAnchor® Structural Knife Plates), and all fasteners
- Footing recommendations based on your load requirements
- Stamped PE drawings when your jurisdiction requires them — produced from engineering that’s already done, not generated from scratch

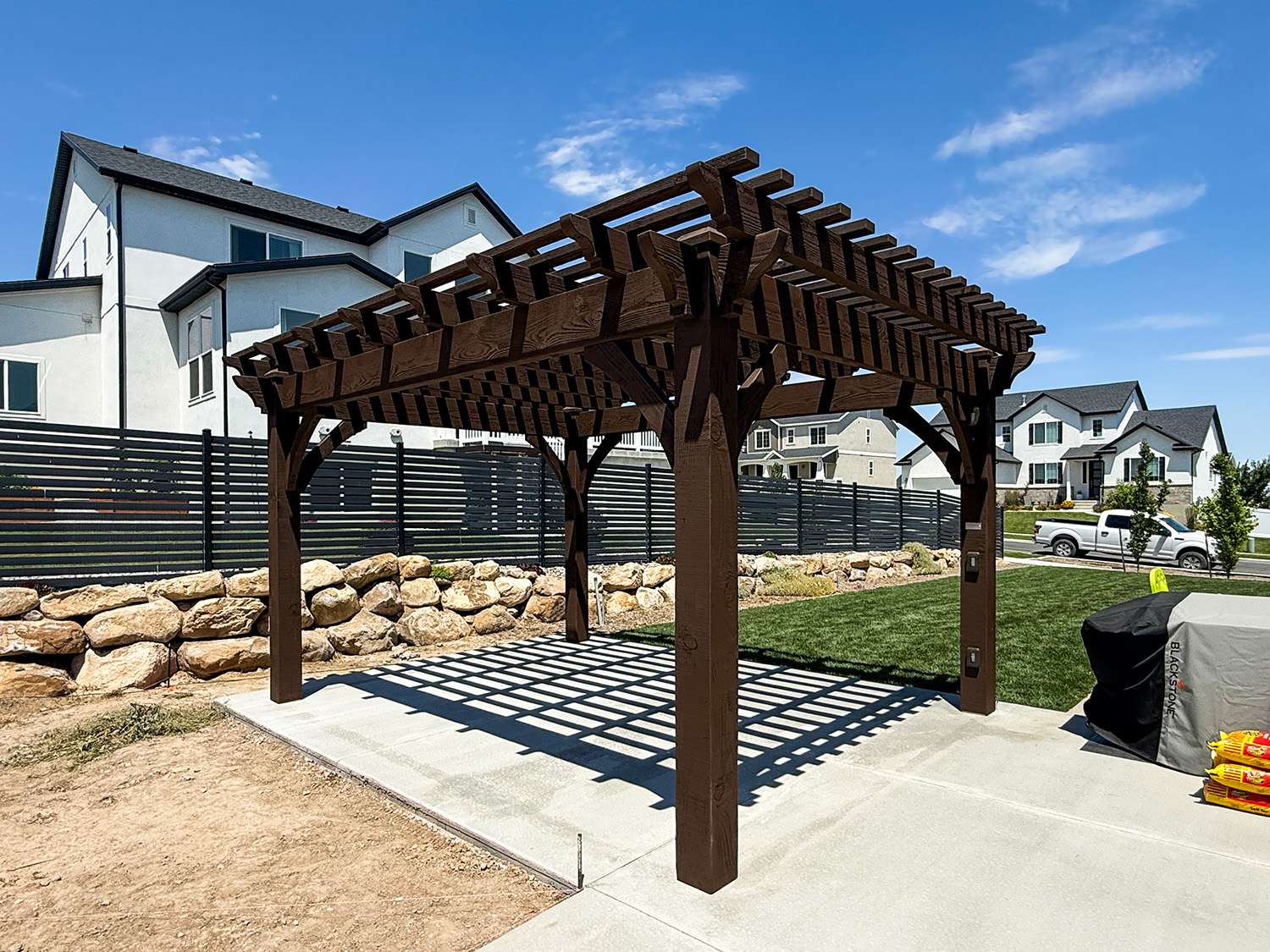

For projects with integrated electrical systems like the TimberVolt® Power Post, a separate electrical permit is typically required. A licensed electrician handles the final connection, but the manufacturer’s documentation shows the electrical pathway design so the building department sees the full scope. The key advantage: a Tier 3 manufacturer’s engineering is done by people who designed the structure, who know exactly how every joint and connection carries load, and who hold the patent on the primary joinery system (US Patent No. 9,797,149 B2). A third-party engineer reviewing a kit pergola cold doesn’t have any of that context — and the building department can tell the difference.
Five Questions to Ask Any Pergola Company About Engineering
Use this checklist with any company you’re evaluating. The answers reveal whether you’re getting real engineering support or a pretty catalog with a permit problem waiting to happen.
- “Do you engineer every structure to code, or only when the client asks?”
Listen for: built into the process vs. available as an add-on vs. “not available.” A company that engineers every project to code has the hardest part done before you ever need a stamp.
- “Can you provide stamped PE drawings when my building department requires them?”
Listen for: yes, from our existing engineering vs. “you’ll need to hire your own engineer.” If the engineering already exists, getting it stamped is straightforward. If it doesn’t, you’re starting from zero.
- “Is the engineering specific to my project, or a generic template?”
Listen for: specific to your structure’s dimensions and configuration vs. “our standard drawings cover most situations.” A generic stamp may not satisfy your local building official, especially for custom sizes or high-load zones.
- “Do the drawings include connection details for your specific hardware and joinery?”
Listen for: proprietary connection details vs. generic fastener schedules. A building official wants to see exactly how the structure transfers load at every joint — not a reference to “use appropriate fasteners.”
- “Will you support the permit process if the building department has questions?”
Listen for: direct support and engineer access vs. “contact a local engineer.” After the sale, will the manufacturer help answer your building department’s questions? Or are you on your own?
A company that answers all five with specifics has already done the engineering work. A company that gets vague after question two is telling you something about how they build.
When You Can Skip Engineering (And When You Can’t)
Not every pergola project requires stamped engineering. The IRC (Section R105.2) exempts certain small accessory structures from permit requirements — typically freestanding structures under 120-200 square feet (the exact threshold varies by jurisdiction).
You probably don’t need stamped engineering if:
- Freestanding structure under your jurisdiction’s exempt size (often 120 sq ft)
- Single story, under height limits (often 10-12 feet)
- No electrical, plumbing, or mechanical systems
- Not in a high-wind, high-snow, or high-seismic zone
- No HOA requiring architectural review
You almost certainly need stamped engineering if:
- Structure is attached to your house (ledger connection)
- Footprint exceeds 200 square feet
- Located in a wind zone above 115 mph basic wind speed
- Ground snow load exceeds 30 psf
- Includes integrated electrical (TimberVolt® or equivalent)
- Your jurisdiction requires engineering on all outdoor structures regardless of size
- Commercial property or multi-family residential
The safe move: call your local building department before ordering anything and ask two questions: “Do I need a permit for a freestanding pergola at [size]?” and “Will you require stamped engineering drawings?” Ten minutes on the phone saves weeks of delay.
Even when your jurisdiction doesn’t require stamped engineering, buying from a manufacturer that engineers to code means your structure is built to those standards anyway. The engineering protects you whether the building department asks for the paperwork or not. The stamp is proof of the work; the work itself is what keeps the structure standing in wind, snow, and time.
What Happens When Permits Go Wrong
A homeowner in one well-documented case purchased a 16×20 motorized pergola and started installation without checking permit requirements. A neighbor complaint triggered a city inspection. The result: a red-tag stop-work order, an immediate fine, and a requirement to provide engineering drawings and a site plan retroactively.
Retroactive permits typically cost more than permitting upfront — and can come with penalties on top. Fines vary widely by jurisdiction and can be steep. Some municipalities require partial or full demolition of unpermitted work before they’ll issue a retroactive permit. The worst outcomes:
- Insurance complications — unpermitted structures may not be covered by homeowner’s insurance. Storm damage to an unpermitted pergola? You may be paying out of pocket.
- Resale problems — when you sell your home, the buyer’s inspector or appraiser flags unpermitted structures. The fix usually involves retroactive permitting at your expense, and some buyers walk.
- HOA enforcement — HOAs can require removal of structures built without architectural approval, regardless of whether the city issued a permit.
None of this happens when the engineering and permit documentation are handled before the first post goes in the ground. It’s the least exciting part of building a pergola — and the part that protects everything that comes after.
Questions Homeowners Ask About Pergola Permits and Engineering
Where the Permit Advantage Comes From
Most pergola content about permits reads like a legal disclaimer: check your local codes, consult a professional, requirements vary. All true. All useless when you’re standing in your backyard trying to figure out who to call next.
Here is what actually matters: when you buy from a manufacturer that engineers every structure to code, the hardest part of the permit process is already done. The structural calculations exist. The connection details are documented. The load path is proven. When your building department asks for stamped drawings, they’re available — because the engineering was part of building your structure, not an afterthought you chase down when the building department sends back an RFI.
Most pergola companies sell a product. The permit is your problem.
A manufacturer that engineers to code sells a structure. The permit documentation is part of the deliverable.
That’s the difference that turns a 5-13 week permit delay into a 1-3 week approval. It’s the difference between scrambling to find a structural engineer who knows timber — and having the manufacturer’s engineering ready to go.
If you’re weighing pergola options and permits feel like the confusing part, start with this: ask the company whether they engineer every structure to code. Not whether they sell stamped drawings as an add-on. Whether the engineering is already done. What that answer tells you about how they build is worth more than any brochure.
When you’re ready to see what that looks like for your project, reach out at westerntimberframe.com. We’ll walk through the engineering, the permit process, and the timeline — so the only surprise is how good the structure looks when it’s up.
Because at the end of the engineering and the paperwork, what you’re really buying is shade — a comfortable, sheltered place to actually use your yard — in a structure built to hold up to whatever your weather sends at it.
Download the checklist: Pergola Permit Application Checklist (PDF) — print it and bring it to your building department.
