Beef-It-Up Remodel: Heavy-Duty Timber Deck With a Pergola Cover

This heavy-duty deck remodel replaced a worn deck and wobbly vinyl railing with 8″ timber posts, metal railings, and a 12′ × 16′ pergola on top. The result is a shaded upper deck and a covered patio below, both finished in Early American stain, with a contrasting light ceiling underneath.

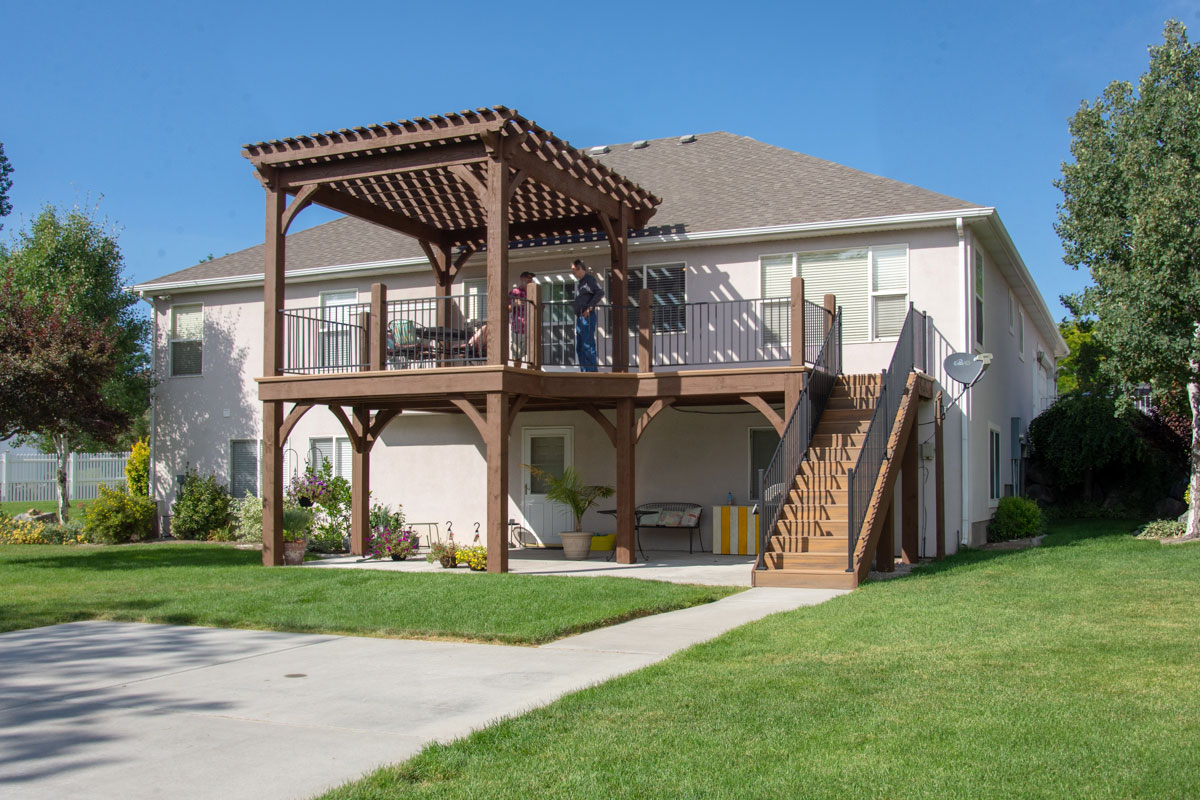

Raised timber deck with a pergola on top and heavy posts below, attached to a light home with stairs to the lawn
The finished deck and pergola.

Key Takeaways

  • Stronger: heavy timber posts and metal railings replaced soft vinyl
  • Two spaces: a shaded upper deck and a covered patio below
  • Pergola: 12′ × 16′ roof on a 10′ × 14′ footprint
  • Finish: Early American stain with a light ceiling underneath

What Did the Deck Look Like Before?

The design consultant on this project sent photos of the original deck before the new one went in. Its vinyl railing moved when someone leaned on it. Vinyl is soft and pliable, and it can break down in the sun over time. Heavy timber and metal railings gave the deck the strength it needed.

Before and after: worn red deck posts over a patio replaced by heavy stained timber posts with arched knee braces
The posts under the deck, before and after.

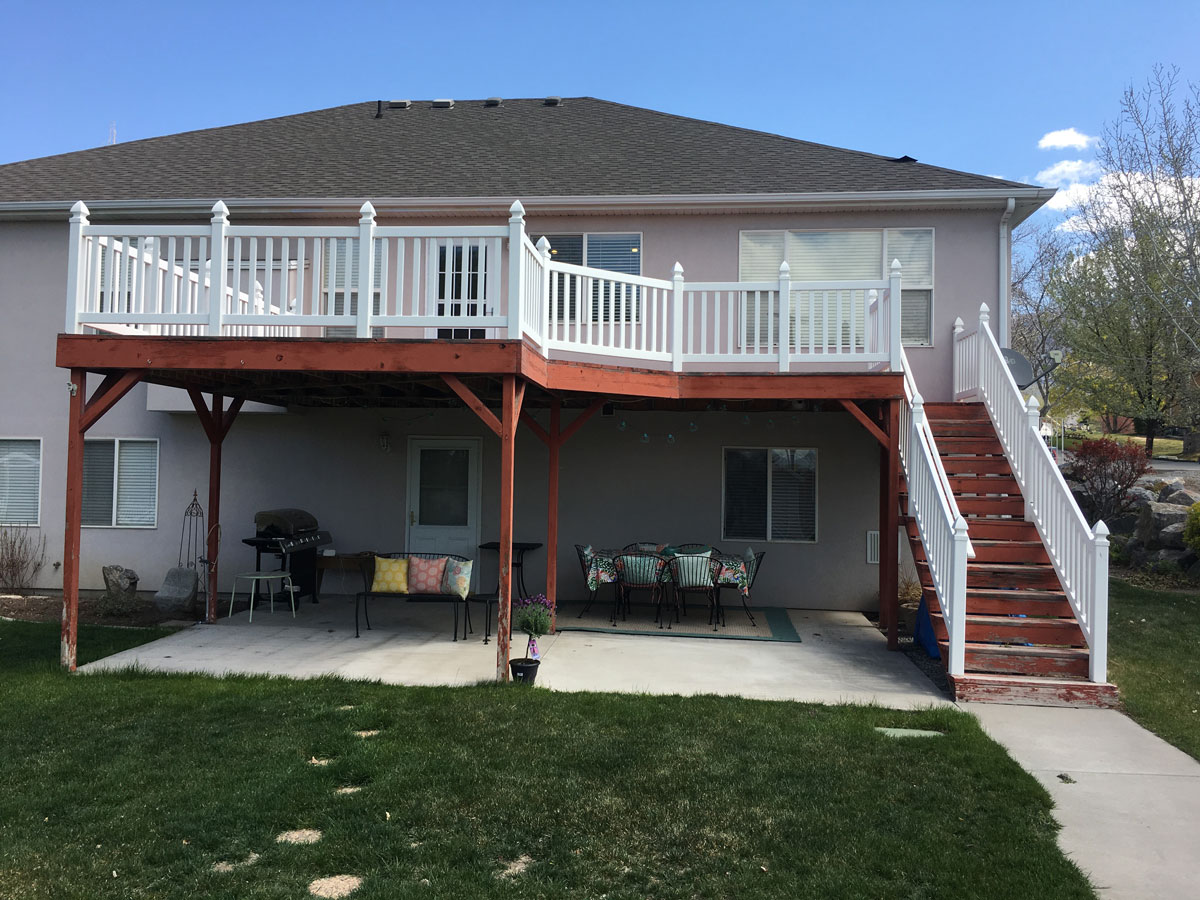

Before: an old red deck with white vinyl railings and stairs above a concrete patio behind a light stucco home
Before.

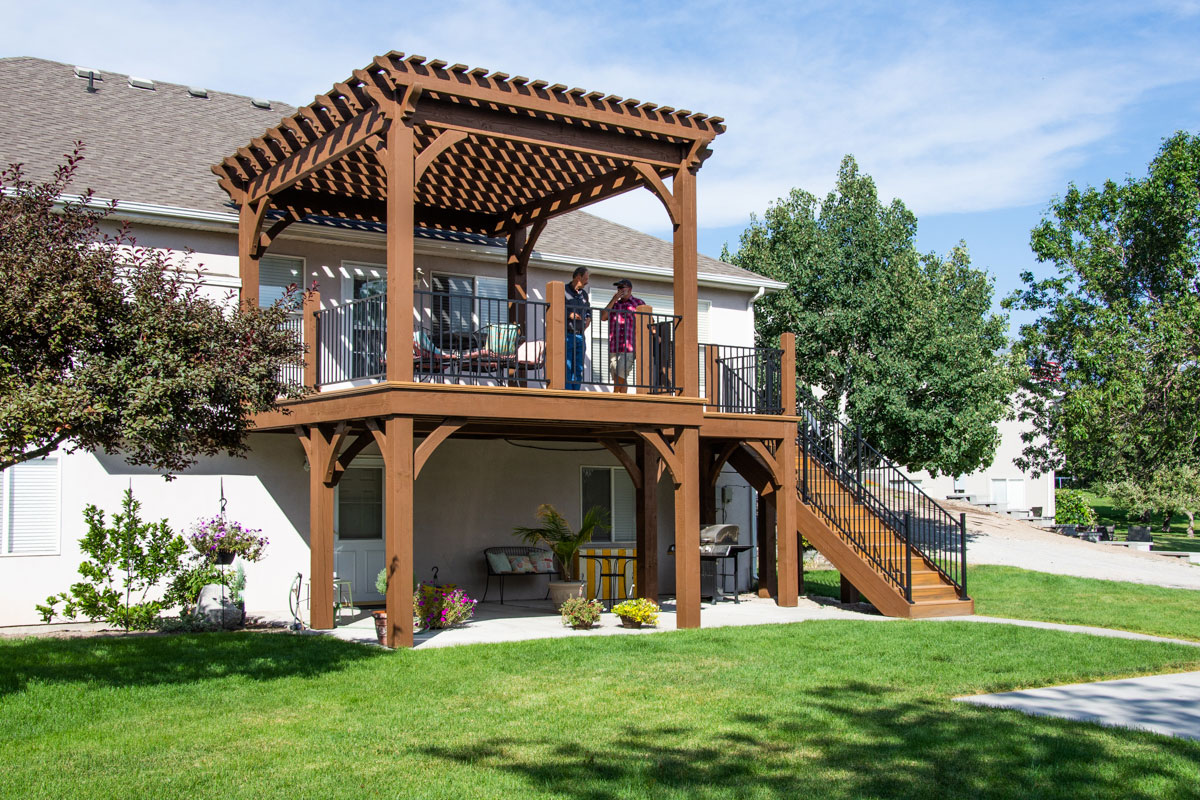

After: a heavy timber deck with metal railings, a pergola on top, and stained stairs down to the backyard lawn
After.

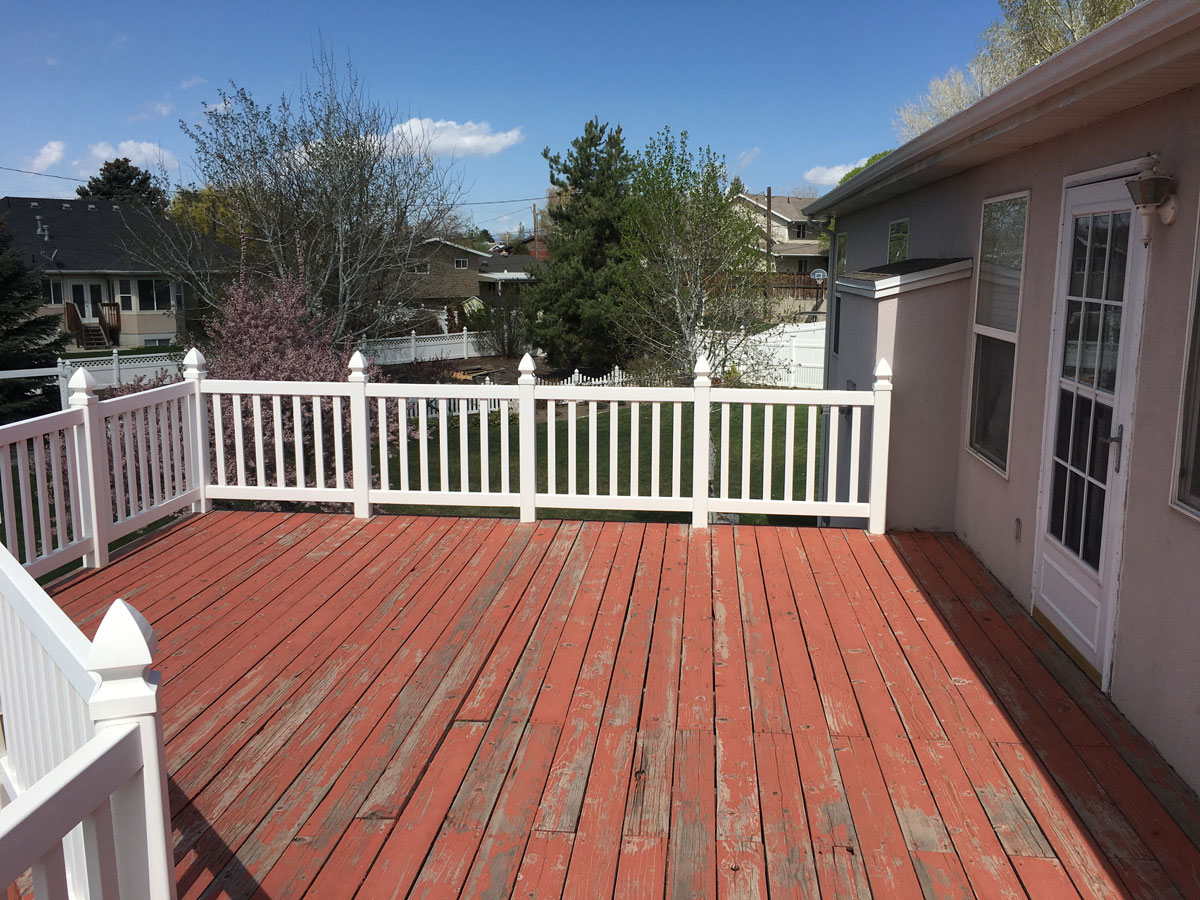

Before: a weathered red deck surface with white vinyl railings next to the back door of a light-colored home
Before.
After: a pergola over a new deck with a light composite floor, black metal railings, and a patio dining set
After.

What Is It Like Under the Deck?

The underside is just as finished as the top. A contrasting light stain on the ceiling keeps the covered patio bright, while the Early American timbers and knee braces frame the space. It feels open even though it is fully covered, with room for a grill and a seating area.

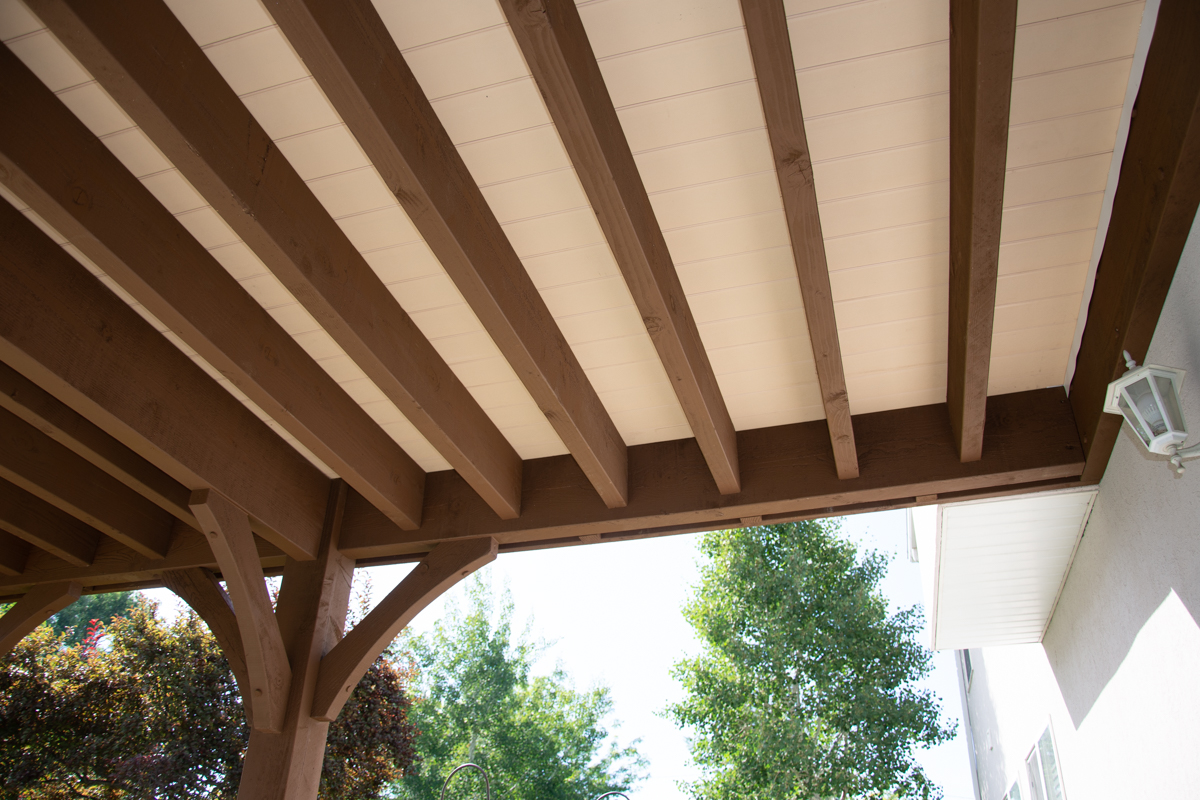

Looking up at the underside of a timber deck with stained beams and joists against a light painted ceiling
Timbers against a light ceiling.
Stained timber beams and a knee brace crossing under a deck ceiling finished in a contrasting light stain
Beams and braces underneath.

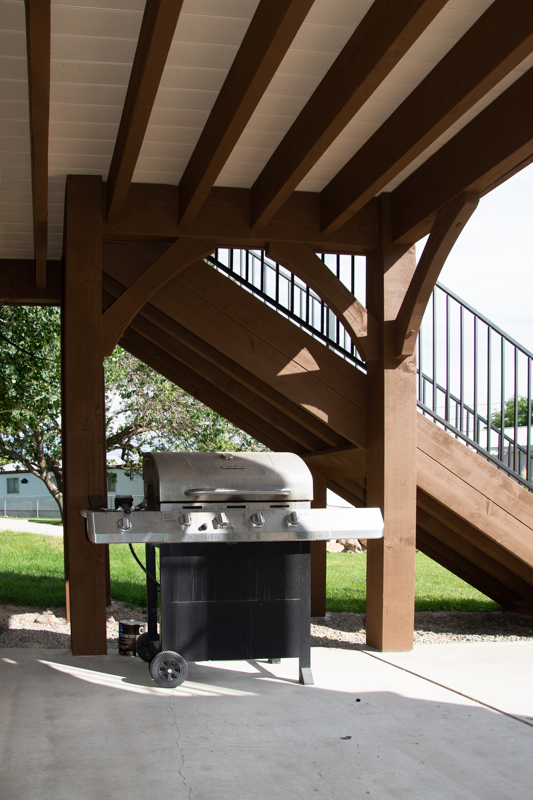

Gas grill on the covered patio beneath a heavy timber deck, beside the stairs with black metal railings
Room for the grill.

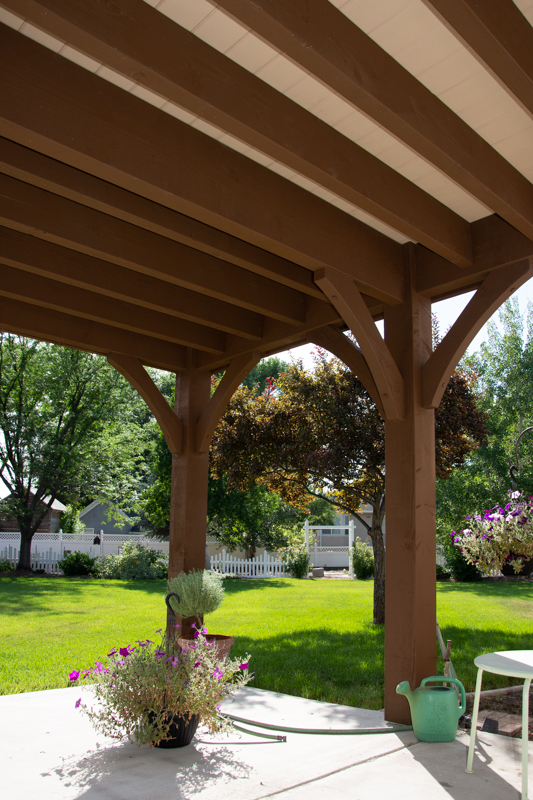

Covered patio under a timber deck with knee braces, a light ceiling, and flowers hanging from a post
A covered patio below.

How Do the Heavy Timbers Feel Up Close?

Photos only tell part of the story. Standing next to these timbers, their size is striking. The wood-to-wood joinery is part of the look, and the frame feels solid from top to bottom.

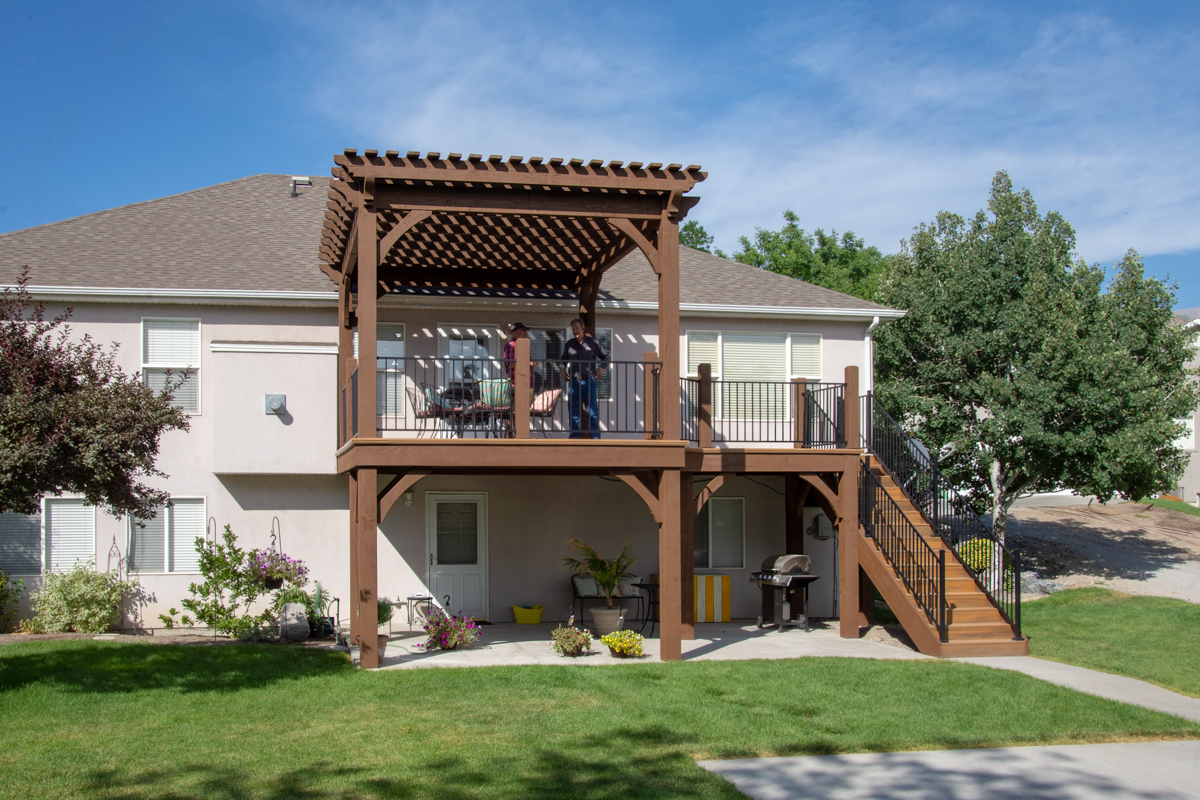

Heavy timber deck and attached pergola after install, with the covered patio below and stairs along the side
After install.

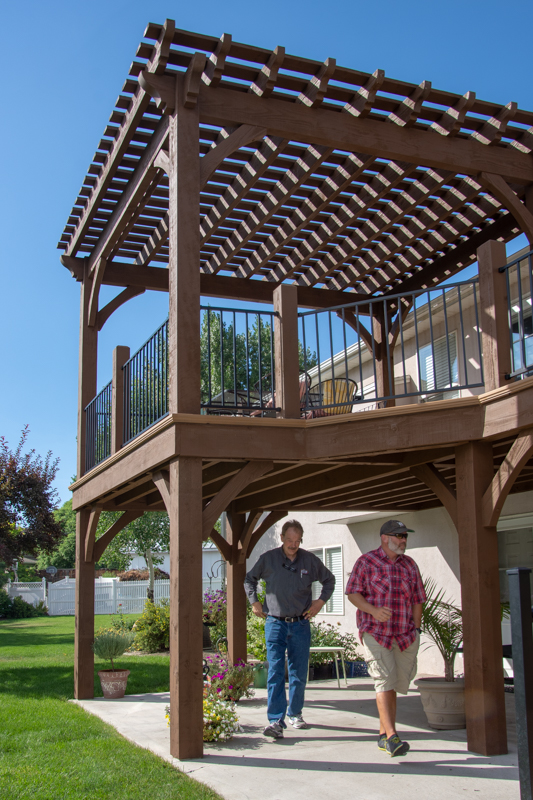

Two men walking out from under a heavy timber deck topped with a pergola, on a sunny day in the backyard
Walking out from the covered patio.

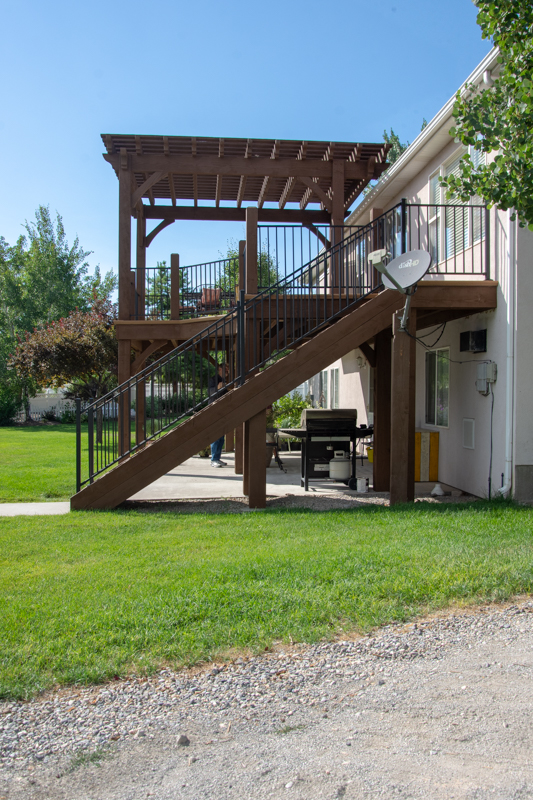

Side view of a raised timber deck with a pergola above and long stained stairs leading down to the lawn
Stairs to the lawn.

What Was in This Deck and Pergola Kit?

StructureAttached pergola on a heavy timber deck
Roof size12′ × 16′
Footprint (post to post)10′ × 14′
Series8000 Series, 8″ posts
WoodDouglas Fir
Beams4″ × 12″
Rafters3″ × 10″
Shade planks2″ × 6″
Bottom of beams8′
Beam and rafter endsRoosevelt Step
Knee bracesClassic
Post bases6 knife plates
StainEarly American

Questions About This Heavy-Duty Deck

Why replace vinyl deck railings?

The old vinyl railing moved when someone leaned on it. Vinyl is soft and can break down in the sun over time. Heavy timber posts and metal railings give the deck a solid, steady feel.

What size is the pergola on this deck?

The roof is 12′ × 16′. The footprint, measured post to post, is 10′ × 14′, because the roof extends past the posts.

What timber is used?

8000 Series Douglas Fir with 8″ × 8″ posts, 4″ × 12″ beams, 3″ × 10″ rafters, and 2″ × 6″ shade planks.

Why is the underside a lighter color?

The ceiling under the deck has a contrasting light stain, which keeps the covered patio bright and open while the timbers stay rich and dark.

Can a deck and pergola be built together?

Yes. Here, the heavy timber structure carries the deck, and the pergola sits on top, so the yard gains a shaded upper deck and a covered patio below.
