Small Backyard Pavilion Ideas: 7 Designs for Tight Yards

What You’ll Learn

Why footprint, roofline, and visual weight matter more than features in a small yard
Seven small-space pavilion designs that consistently work — and where each one fits best
How to pick a size (10×10 pavilion? 10×12 pavilion? 12×14 pavilion?) without crowding the rest of the yard
Four design moves that make a small pavilion feel bigger and more usable
When a pavilion is the right call — and when a gazebo or pergola is enough
What to check before buying a small backyard pavilion kit

In a small backyard, the wrong pavilion does not just take up space — it makes the whole yard feel tighter. The roof reads as oversized. The posts crowd the patio. The lawn that used to feel open suddenly feels boxed in. Most articles on small-space pavilion ideas list designs without explaining why some work and most don’t. The real answer is not which pavilion is biggest or most decorative. It is which one manages footprint, roofline, openness, and function for the yard you actually have.

Timber frame cabana with heavy wood posts and exposed beams attached to a residential home.

timber frame entry cover with exposed beams over front door entrance

Yes — you can put a pavilion in a small backyard. The constraint is not square footage. It is proportion. A well-chosen 10×12 pavilion can transform a townhome patio. A poorly-chosen 14×16 pavilion can swallow a quarter-acre lot and leave the family with less usable yard than they started with. The structure is not the difference. Whether the design respects the space around it is.

This guide breaks down the seven small-space pavilion designs that consistently work, the size ranges that fit different yard shapes, and the design moves that make a small pavilion feel bigger than it measures. It also covers when a pavilion is the right call, and when pergolas, pavilions, or gazebos tilt the answer toward something simpler.

What Makes a Pavilion Work in a Small Backyard?

Before listing designs, it helps to know the criteria a small-space pavilion has to clear. Three variables decide whether a pavilion fits the yard or fights it: footprint, roof shape, and visual weight. Get those three right, and almost any style can work. Get any one of them wrong, and even a beautiful pavilion will feel oversized.

Start with Footprint, Not Features

The single most common mistake on a small lot is choosing the pavilion before measuring the yard. Buyers fall in love with a feature set — outdoor kitchen, fire feature, fan and lighting plan — and back into a footprint that supports all of it. On a small lot, that footprint usually swallows the lawn.

The better order is reverse. Start with the yard. Measure the usable area. Subtract circulation routes (the path from the house to the gate, from the patio to the garden bed). What’s left is the footprint a pavilion can actually occupy without crowding everything else. Then design the structure to fit that number. Most small-yard pavilions land between 100 and 168 square feet — a 10×10, 10×12, 10×14, or 12×14 — for a reason. That is the size range where the structure fits the lot instead of dominating it.

A useful rule of thumb: a pavilion should occupy no more than about 30% of the usable yard area. Past that, the structure starts to read as the yard rather than a feature in it.

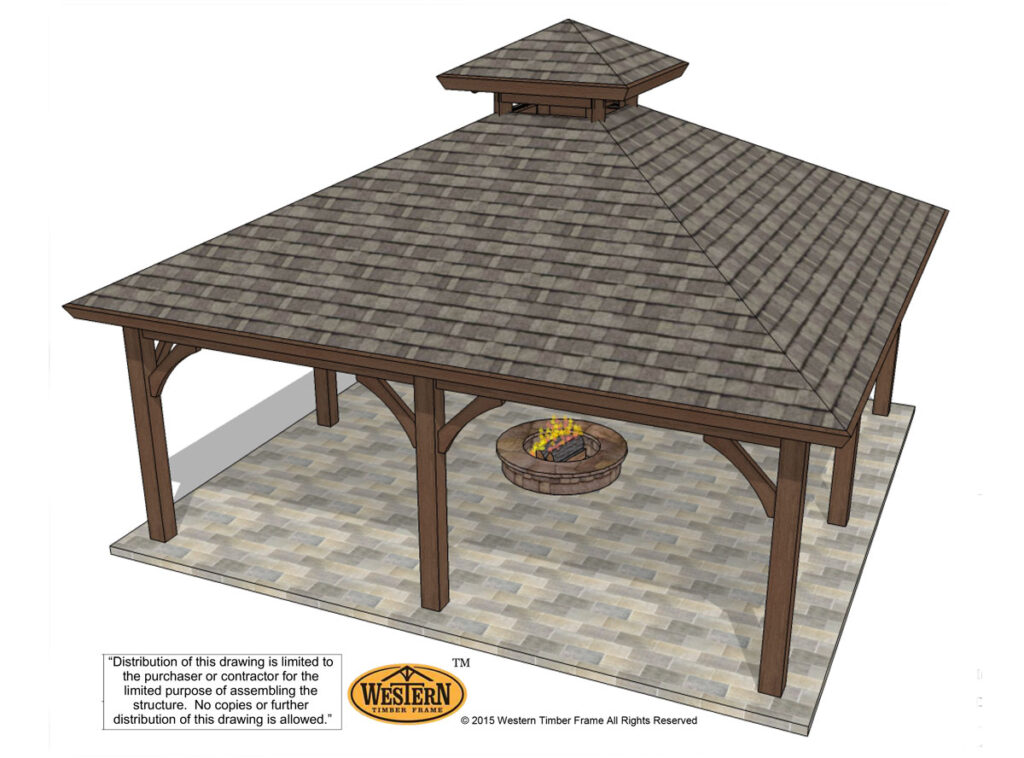

hip roof timber frame pavilion design with tiered roof and open outdoor layout

Why Roof Shape Matters More Than Most People Think

Roof shape decides how heavy a pavilion looks from across the yard. Two pavilions can have the same footprint and the same posts and read completely differently because of how the roof is shaped.

Dual-stain timber frame pavilion with gable roof and arched braces over a stamped-concrete patio in a backyard seating area.

Two-stain 3-gable timber pavilion with arched braces and decorative steel plates over a stamped-concrete patio in a landscaped backyard.

Steep gables read tall. They draw the eye up and add visual height to a structure that is already taking up ground. In a small yard, that extra perceived height can make the pavilion feel like it is leaning into the rest of the space. Low-slope gables, hip roofs, and flat roofs read horizontal — and horizontal almost always sits more comfortably in a small backyard than vertical does. The structure feels like it belongs to the ground plane instead of competing with the house.

The surprising thing about scale is that lowering the roof by twelve inches often does more for a small yard than shrinking the footprint by a foot. The pavilion takes up the same patio. It just stops dominating the skyline.

Open Sides, Sightlines, and Visual Weight

A pavilion with all four sides open, no skirting, and slim posts reads as a frame around the patio. A pavilion with knee walls, half-walls, planter boxes between the posts, and heavy decorative trim reads as a small building. Both can be the same size. They occupy very different amounts of visual space.

In a small yard, openness is the lever. The more of the surrounding landscape you can see through the structure — the lawn, the fence line, the neighbor’s mature tree — the bigger the yard feels and the lighter the pavilion sits. This is the same principle that makes a glass-walled gazebo feel airy and a gazebo with painted lattice infill feel boxy. The footprint is identical. The eye reads them differently because of what they let through.

Integrated Pergola & Pavilion

Beach Sand timber frame pergola with arched beams, built beside a modern stucco home and outdoor fireplace on a stone patio.

The design move that consistently helps: keep at least three of the four sides genuinely open, and put any privacy screening on a single side — the side facing the neighbor or the road. Privacy where you need it, sightlines where you don’t.

7 Backyard Pavilion Design Ideas That Work Best in Small Spaces

These seven designs come up repeatedly in small-yard pavilion projects because each one solves a specific small-space problem. The pattern under each: what it is, why it works in a tight yard, where it fits best, and the trade-off worth knowing.

1. Flat-Roof Pavilion for a Clean, Low-Profile Look

A flat-roof (or very low-slope) pavilion sits roughly two to three feet shorter at the peak than a comparable gable. That difference matters in a small yard because it keeps the structure under the fence line of sight, lets second-story windows still see over it, and reads as architectural rather than residential. Modern homes especially benefit from the clean horizontal silhouette.

modern timber frame pavilion with flat roof on rooftop terrace overlooking city skyline and mountains at dusk — A contemporary timber frame pavilion creates a refined outdoor living space with skyline and mountain views

Where it fits best: contemporary or modern-farmhouse homes, urban patios, and side yards where vertical space is constrained. The trade-off: flat roofs need a clear drainage plan (a slight slope and a routed downspout), and they shed snow load differently than gables — which matters in heavy-snow regions where roof rating must be specified rather than assumed.

2. Lean-To Pavilion Attached to the House

An attached pavilion borrows one wall from the house, which means it occupies roughly half the footprint a freestanding pavilion would for the same usable area. The lean-to roof slope ties into the existing roofline, and the structure reads as an extension of the home rather than a separate building. In small yards, that single move — anchoring to the house — is often the difference between “pavilion fits” and “pavilion does not fit.”

White timber frame cabana providing covered outdoor space beside a residential home. — A handcrafted white timber frame cabana designed to create a sheltered outdoor entry and gathering space.

Where it fits best: when the patio is already against the back of the house, when there is enough roof line to tie into, and when you want the indoor/outdoor flow to be continuous. The trade-off: attaching to the house adds engineering complexity. The connection has to be flashed, sealed, and engineered for combined loads. It is often worth it on a small lot — and it is also a step where shortcut framing causes water intrusion problems years later, so the connection detail matters.

3. Compact 10×10 or 10×12 Pavilion

The 10×10 pavilion is the most under-rated pavilion size in the category. It comfortably covers a four-person dining table or a small conversation seating group with circulation clearance. It fits on most townhome patios. It usually slides under the typical permit threshold for accessory structures (though codes vary — always check). And it costs noticeably less than a larger structure while delivering most of the daily-use benefit.

A 10×12 adds enough length to fit a six-person dining table comfortably. Past 10×14 in a small yard, the math starts to tip — you gain a few square feet of cover and pay for it in lawn space and visual weight. If you are weighing a 10×10 against a 12×12, the 10×10 is almost always the better small-yard choice because the four-foot-larger footprint is what tips the structure from “fits” to “fights the yard.”

For pavilion kit options at this size range, see the build-it-yourself guide for what the install actually involves.

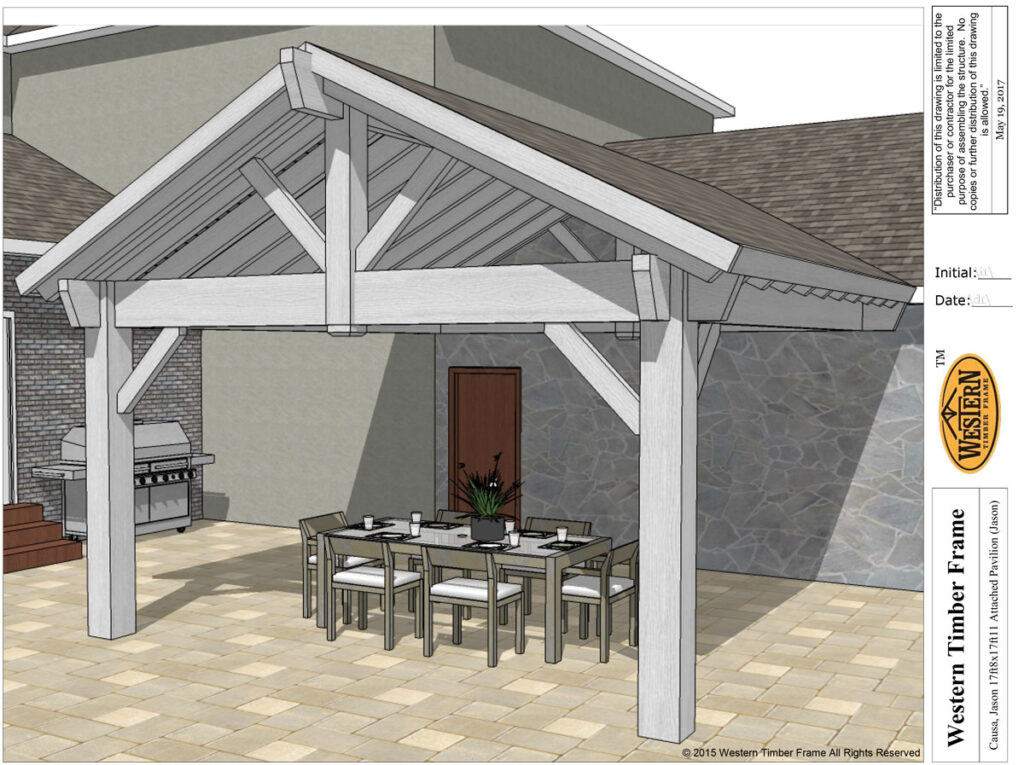

attached timber frame pavilion design rendering with outdoor dining area

4. Corner Pavilion That Preserves Open Lawn Space

Tucking a pavilion into a back corner of the yard preserves the open middle of the lot. The corner location uses two existing fence lines as visual anchors, which makes the pavilion read as a settled feature rather than an object floating in the lawn. It also keeps the sightline from the house’s back windows clean — you see across the lawn to the pavilion, not into it.

Where it fits best: rectangular yards, yards with mature trees in one corner that the pavilion can complement, and yards where preserving lawn for kids or pets is a priority. The trade-off: the corner location often means the pavilion gets less natural shade from existing trees, which makes the roof’s actual shade coverage matter more than it would in a center-of-yard placement.

L shaped attached timber frame pavilion covering backyard patio seating area — An L-shaped attached pavilion creates a fully covered outdoor living space along the home.

5. Louvered Pavilion for Flexible Sun and Rain Control

A louvered roof — adjustable slats that open for breeze, close for rain — is one of the few pavilion types that genuinely benefits from a smaller footprint. The louver mechanism handles a 10×12 or 12×14 well; at larger sizes, the spans get more expensive nonlinearly. In a small yard, louvered tops also preserve more of the open-sky feeling than a closed-roof pavilion does, because you can open the slats whenever rain isn’t an issue.

Timber frame pergola with remote-controlled louvered roof over outdoor kitchen in Ohio by Western Timber Frame — This Ohio outdoor kitchen is shaded by a timber pergola with a remote-controlled louvered roof—offering on-demand comfort and classic craftsmanship.

Where it fits best: rain-heavy climates, year-round-use patios in mild zones, and homeowners who want flexibility without a fully closed roof. The trade-off: louvered systems are mostly aluminum (this is the one place aluminum genuinely earns its place in the category — see the pavilion vs. pergola comparison for where aluminum wins and where heavy timber does), and the mechanisms have a maintenance cycle that fully passive roofs don’t.

6. Pavilion with a Single Privacy Wall or Vertical Screen

Timber pavilion interior with natural tongue and groove ceiling adjustable shutters and outdoor seating

Timber pavilion interior with adjustable shutters lounge chair and patio seating

A small pavilion with one solid wall — slatted timber, stone veneer, or a planted living-wall trellis — adds privacy where you need it without enclosing the whole structure. The wall typically goes on the side facing the neighbor, the alley, or the street. The other three sides stay open, which preserves the sightline benefits that keep the pavilion feeling small.

Where it fits best: zero-lot-line homes, urban yards with close neighbors, and any yard where one direction needs visual screening and the others don’t. The trade-off: a single privacy wall changes the structural load path slightly — wind hits the pavilion asymmetrically — so the engineering needs to account for the wall’s effective wind area, especially in higher-wind zones.

3-gable timber frame pavilion attached to a home, featuring two-tone stains, capped sleeve posts, and a matching privacy panel. — This handcrafted 3-gable pavilion blends contrasting stains for a refined, dimensional look. The capped sleeve posts and integrated privacy panel add comfort, style, and shelter to this beautiful backyard retreat.

7. Multi-Use Pavilion with Built-In Seating

Built-in bench seating around the perimeter is the design move that turns a 10×12 pavilion into a 10×12 pavilion that seats eight. Perimeter benches free the floor area for a single small dining table or coffee table instead of a chair circle. They also store cushions, extra throws, or fire-pit accessories in the seat box. In a small space, the floor square footage you save by switching from chairs to benches is the difference between “tight” and “comfortable.”

timber frame pavilion with built in benches and fire table in landscaped backyard

timber pergola with built in benches along perimeter seating area

Timber frame pergola designed for long term outdoor structure value and daily use

Where it fits best: pavilions used primarily for gathering rather than dining, families that host more than they sit alone, and yards where every square foot of floor needs to do double duty. The trade-off: built-in benches commit you to a layout. If the pavilion’s primary use changes — say, from family gathering to outdoor dining the benches are harder to remove than freestanding seating.

What Size Pavilion Should You Choose for a Small Space?

The right size question is not “what’s the biggest pavilion that fits?” It is “what’s the smallest pavilion that covers the activity I actually do under it?” Most small-yard regret comes from oversizing, not undersizing.

Best Size Ranges for Patios, Corners, and Narrow Side Yards

10×10 (100 sq ft): Covers a four-person bistro table or a small conversation grouping. Ideal for townhome patios, narrow yards, and any situation where the pavilion is one feature among several rather than the centerpiece.

10×12 (120 sq ft): Covers a six-person dining table with chair clearance. The most popular small-yard size in this category for a reason — it hits the function/footprint sweet spot without crossing into “this dominates the yard.”

12×14 (168 sq ft): Covers a dining table plus two extra chairs or a small lounge zone alongside. This is the upper edge of “small-space pavilion” — past it, the structure stops sitting in the yard and starts becoming the yard. On a quarter-acre lot, that may still be fine. On a townhome lot, it usually isn’t.

Narrow side yards (8-foot widths): A long-and-narrow 8×14 or 8×16 attached pavilion can turn an unused side yard into a covered walkway with seating — a small-space win that wider footprints can’t deliver.

timber frame pavilion with hipped roof and asphalt shingle roofing creating shaded backyard outdoor living space

How Much Clearance to Leave Around the Structure

Walking clearance, mowing clearance, and visual clearance are three different things and small yards usually need all three. The working numbers:

36 inches around any seating for chair pull-out and circulation
24 inches between the pavilion and a fence for trim, paint, or stain access
At least 6 feet of sightline from the pavilion’s open side to the next visual feature (fence, garden bed, lawn edge) so the eye doesn’t feel pinched

Pavilions that fail in small yards usually fail one of these clearances. The structure fits on the ground but reads as crowded because the eye has nowhere to land beyond the post.

When a Pavilion Starts to Overpower the Yard

Three signals that the pavilion is too big for the lot:

The pavilion is visible from every window of the house (it has become the view rather than a feature in the view)
Standing at the back door, you can no longer see the rear fence line (the structure has cut off the depth of the yard)
The lawn area between the patio and the fence is narrower than the pavilion is wide (the pavilion is now the yard)

Any one of these in isolation can be acceptable on the right lot. All three together usually means the structure is over-sized. The fix is not to give up the pavilion — it is to drop one size class. A 10×12 instead of a 12×14. A 12×14 instead of a 14×16. The function loss is small. The yard recovery is large.

How Do You Make a Small Pavilion Feel Bigger and More Comfortable?

Once the size is right, four design moves make the pavilion read as bigger than it actually measures.

Use Light Materials and a Lighter Color Palette

Dark stains read heavy. Natural mid-tones — warm cordoba, espresso-over-fir, weathered cedar — read lighter without going pale. White-painted pavilions look bigger from a distance but show every drip and scuff at close range; for small yards where the pavilion sits within ten feet of a path, mid-tone stained timber tends to age better than paint. The palette principle: contrast the pavilion against the house just enough to make it read as a feature, not so much that it becomes the focal point of the yard.

timber frame pavilion covering hot tub with gable roof and privacy screen

For more on the trade-offs between paint, stain, and natural finishes, see the WTF pergola stain color guide.

timber frame sunroom with large windows and gable roof attached to home

Interior view of a hipped timber pavilion roof with exposed dark-stained beams and a light tongue-and-groove ceiling.

Completed backyard transformation with 3-gable timber frame pavilion, white Trex deck railing, and outdoor fire lounge.

Alpine White timber pavilion with string lights and family gathered beneath in a backyard setting

Build in Seating Instead of Filling the Floor with Furniture

A small pavilion with four chairs and a coffee table reads as crowded. The same pavilion with a built-in bench along the back wall and one or two pull-up chairs reads as roomy. Perimeter seating works because it pushes the bodies to the edge of the structure and leaves the middle of the floor open. The visual center of the pavilion stays clear. The eye reads it as larger.

Add Lighting Without Adding Clutter

Lighting layers expand a small pavilion at night the way a mirror expands a small room during the day. The principle: light the structure, not the air. String lights pulled across the open span add visual chaos and read as a temporary feature. Recessed downlights in the rafters, post-mounted sconces washing the columns, and a single overhead pendant or fan light feel architectural and disappear when off. The pavilion reads as built-in rather than decorated.

Black timber pavilion with American flag, outdoor dining table, and string lights in a backyard patio setting.

Illuminated timber frame pavilion built by Western Timber Frame in Daybreak, Utah, overlooking a calm lake with a stone bridge and mountain views at dusk.

A pre-wired post system — timber posts with internal electrical pathways routed at the factory, like WTF’s TimberVolt® — is the difference between a pavilion that supports clean lighting and one with conduit clipped to the post faces. On a small structure, where every inch of the post is visible, the difference shows.

Use Vertical Privacy, Greenery, and Storage

Small yards reward vertical thinking. A six-foot-tall slatted privacy panel on one side adds screening without taking floor area. A climbing plant on a single trellis post adds softness without overgrowing the structure. A built-in storage box doubling as bench seating turns the pavilion into both a gathering spot and the outdoor closet the yard didn’t have. Each of these reclaims ground-plane space by moving function up or onto the structure itself.

Pavilion vs. Gazebo vs. Pergola: Which One Makes the Most Sense in a Small Backyard?

The three terms get used interchangeably and shouldn’t be. A pavilion has a solid roof and (usually) open sides. A gazebo has a closed or near-closed roof and is typically octagonal or rounded with partial walls or railings. A pergola has an open rafter top — slats, beams, sometimes louvers, but no fully solid roof.

When a Pavilion Is the Better Choice

Pick a pavilion when shade and weather protection are the daily priority. A solid roof gives you a usable space in summer heat, light rain, and afternoon sun without a moving part to maintain. In a small yard where every square foot of cover counts, the pavilion’s full coverage is hard to beat.

Ebony-Stained Timber Pavilion with Privacy Wall

timber frame entryway porch cover with gable roof over front door

When a Gazebo May Make More Sense

A gazebo’s rounded or octagonal footprint can fit irregularly-shaped corners that a rectangular pavilion can’t. The closed-roof shape adds visual interest in yards where the architecture leans traditional or romantic. And gazebos read as a destination feature — the kind of structure people walk to — which can give a small yard a sense of depth that a patio-mounted pavilion doesn’t. For more on gazebos in family use, see the WTF guide to gazebos for events and gatherings.

Timber gazebo with lattice-style railing panels in a landscaped backyard on a sunny day. — A custom timber gazebo with lattice-style panels offers shade and structure in a bright backyard setting.

When a Pergola Is Enough and a Pavilion Is Overkill

In a small yard with light shade requirements and no rain-protection priority, a pergola may be the right answer. Open rafter tops keep the sky visible, weigh less visually than a pavilion roof, and cost less to build. A pergola also lets a climbing vine (wisteria, grape, climbing hydrangea) play a structural role in the look — which a closed pavilion roof cannot. The trade-off is real: a pergola does not protect from rain or hail, and its shade coverage is partial rather than full.

rooftop pergola with seating area and open slatted roof design overlooking landscape — A large Western Timber Frame roof top pergola shades an expansive rooftop terrace featuring an outdoor kitchen, lounge seating, and dining area with scenic views.

Are Backyard Pavilion Kits a Good Option for Small Spaces?

A pavilion kit is a pre-engineered, pre-cut, pre-stained structure shipped flat to the site for owner or contractor assembly. For small-space pavilions, kits often make more sense than they do at larger sizes — but not always.

When a Kit Makes Sense

The yard is a standard rectangle with a level pad already in place
The size you need (10×10, 10×12, 12×14) maps cleanly to a 10×10 pavilion kit, 10×12 pavilion kit, or 12×14 pavilion kit configuration
You or your contractor are comfortable with timber assembly, anchoring, and finish work
You want stamped engineering on a structure under permit threshold for accessory buildings
Cost predictability matters — kits ship at a fixed price; custom builds quote per project

For a step-by-step on what kit assembly involves, see Can You Build a Pavilion Kit Alone? and the DIY pergola kit reviews write-up of real installs.

When Custom Design Is Worth It

Dark timber frame porch entryway on a modern suburban home.

The yard is irregularly shaped, on a slope, or has site constraints (utilities, existing trees, a retaining wall)
You want the pavilion attached to the house and the connection needs to match the existing roofline
You need a non-standard size or asymmetric footprint to fit the space
The pavilion has to integrate with an existing outdoor kitchen, fire feature, or pool surround
You want to specify the species, joinery, and finish details beyond what kits offer

Custom design costs more and takes longer. On most small lots without site complications, a kit gets you 90% of the design quality at 60% of the price and timeline. On lots with real constraints, custom wins.

What to Check Before Buying a Small Pavilion Kit

Stamped engineering for your wind and snow zone (not generic “rated for most regions”)
Species and finish: Douglas fir, cedar, or coast redwood with a UV-rated stain system, not pine with a single coat
Joinery type: mortise-and-tenon or true timber-frame joinery, not screw-and-bracket assembly
Anchoring system: structural anchors rated for the substrate (concrete, footing, deck — they’re different)
Permit support: kits should ship with stamped drawings sufficient for your local permit office

Realistic install time: small-pavilion kits typically run two to four days for a two-person crew. Anything advertised as “weekend assembly, no experience needed” usually isn’t, on the structures that matter

FAQ: Small Backyard Pavilion Design Questions Homeowners Ask Most

Yes — and small yards are often where pavilions deliver the most value, because every square foot of covered, comfortable outdoor space matters more on a tight lot. The constraint is proportion, not square footage. A 10×10 or 10×12 pavilion fits most townhome and quarter-acre yards without crowding. The key is matching footprint, roof shape, and visual weight to the yard you have, not the pavilion you saw in a magazine.

For most small backyards, A 10×10 pavilion cover to 12×14 is the working range. A 10×10 pavilion covers a four-person table or seating group. A 10×12 pavilion fits a six-person dining table comfortably. A 12×14 handles a dining table plus a small lounge zone. Past 12×14 on a small lot, the structure starts to dominate the yard rather than complement it. Use the 30%-of-usable-yard rule as a check: if the pavilion footprint is more than about 30% of the lawn area, it is probably one size class too big.

Four moves do most of the work: keep at least three sides genuinely open, use mid-tone stains rather than dark or stark white, build in perimeter seating to free up floor space, and layer architectural lighting (recessed, post-mounted, or pendant) instead of string lights. Together these moves make a 10×12 pavilion read closer to 12×14 in usable feel without changing the footprint.

A pavilion is better when shade and weather protection are the daily priority and the yard is a standard rectangle. A gazebo can be better when the yard has an irregular corner, when traditional architecture sets the tone, or when you want a destination feature that pulls people across the lawn. Functionally, pavilions deliver more daily-use square footage. Visually, gazebos can make a small yard feel deeper.

For small-space pavilions, yes — usually. Kits hit a sweet spot of stamped engineering, predictable cost, and tight install timelines that custom design rarely beats at the 10×10 to 12×14 pavilion kit size range. Where kits fall short is on irregular lots, sloped sites, attached-to-the-house designs, or non-standard sizes. The decision rule: standard yard with a level pad, kit. Site complications or custom integration needed, custom build.

Low-slope gables, hip roofs, and flat (or near-flat) roofs all work well in small yards because they read horizontal rather than vertical. Steep gables can work when the home’s architecture supports them, but they add visual height that compresses the yard. The general rule: in a small yard, a roof that lays down sits more comfortably than a roof that stands up.

The Best Small-Space Pavilion Is the One That Solves the Right Problem

The right pavilion for a small backyard is not the biggest one or the most decorative one. It is the one that fits the yard’s footprint, the home’s architecture, and the family’s actual use pattern. Footprint discipline, roofline restraint, openness, and built-in function do more for a small yard than feature stacking ever will.

Covered Walkway Solution Between Buildings — A problem solving architecture approach transformed a narrow, exposed corridor into a covered walkway solution that protects daily movement between buildings.

The mistake most worth avoiding: choosing the pavilion before measuring the yard. The yard tells you what footprint is available. The use pattern tells you what size delivers the function. The home’s architecture tells you what roof shape and stain finish will sit comfortably. Let those three constraints set the design, and the small-space pavilion almost designs itself.

Western Timber Frame, Inc. has shipped 7,000+ heavy-timber structures across all 50 states and is the recipient of the 2026 SBA Manufacturing Award, with U.S. Patent No. 9,797,149 B2 protecting The Dovetail Difference® joinery system used in every kit. The design conversation we have with families starts with the yard, not the catalog — because a pavilion that fits the lot is the only kind that gets used four nights a week.

If you’re sizing a small-space pavilion and want a design conversation grounded in the yard you actually have, WTF’s design team offers a free consultation — we’ll walk through your footprint, your sightlines, and which of the seven designs above fits your specific lot.
