Pavilion Plans: A Covered Dock and an Outdoor Reception Center

Drawing of a timber pavilion covering a pier deck over water, with railings along both sides and a gable facing shore
A covered dock pavilion, drawn before anything was built.

Pavilion plans are where a structure gets decided. Long before timbers are cut, a concept drawing shows the roof pitch, the post spacing, the ceiling, and how the whole thing sits on its site, from the top, the side, the back, and from where people will actually stand.

This one covers a dock on a lake. A bridge leads out to it, railings run down both sides, and the roof turns an exposed pier into a place you would stay for an afternoon. It is the kind of drawing that makes a project feel real to the people paying for it.

A Pavilion Over the Water

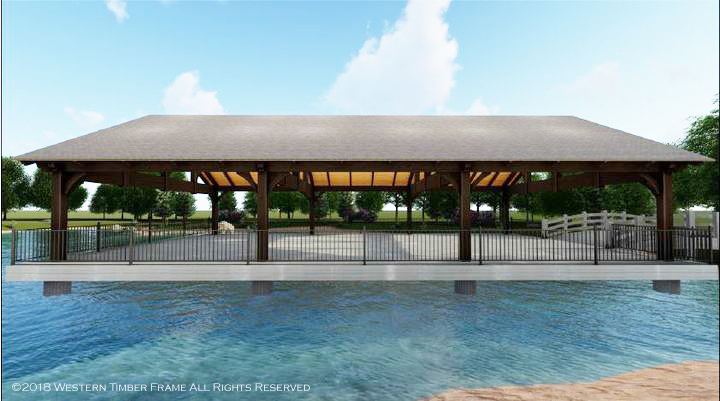

Drawing of a long pavilion roof over a lakeside deck seen from the water, with fencing along the edge
Seen from the water, the roof reads as one long line above the deck.

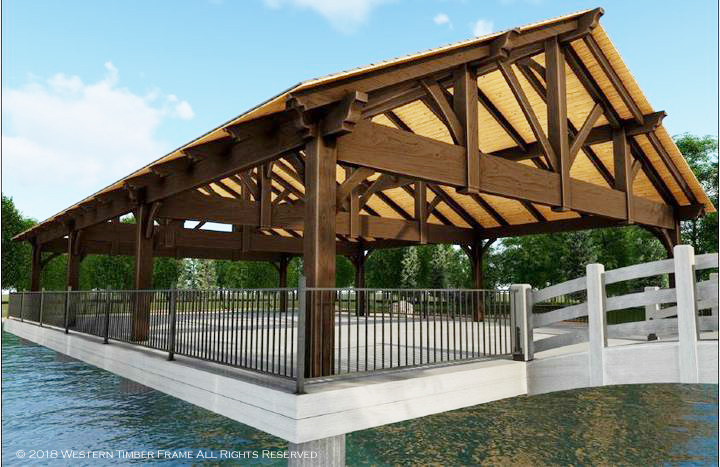

Drawing from under the dock pavilion, its dark timbers and light plank ceiling above an open deck
Underneath: dark timbers against a light plank ceiling.

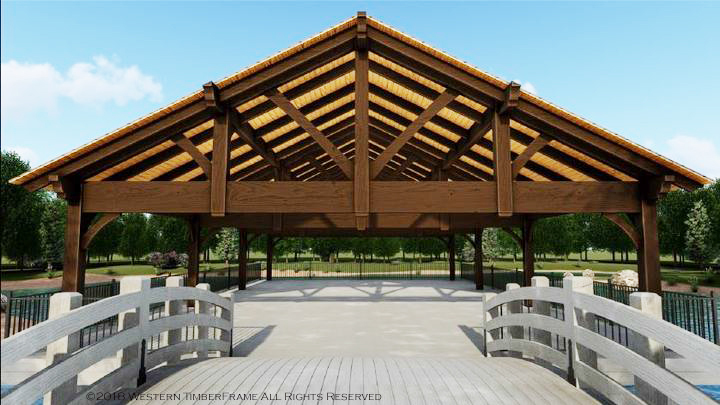

Drawing of a bridge leading to the covered dock pavilion, with white railings curving toward the deck
The bridge approach, which sets how people arrive.

Drawings answer questions that are expensive to answer later. Does the roof block the view from the shore? Is there headroom at the gable end for people standing at the rail? Does the bridge land where the deck is widest? Those get settled on screen, not on site.

The Same Process on a Reception Center

This second set belongs to an outdoor reception center: a steep timber gable over the main floor, pergola wings running down both sides for shaded seating, and a stone wall sheltering the back.

The wings matter more than they look. They roughly double the usable space without doubling the roof, and they give guests somewhere to sit that is out of the sun but still outside.

Every structure is drawn to its own site, its own measurements, and the way the space will be used, whether that is a business, a recreational facility, or a backyard. The kit that ships is cut from the drawing everyone has already agreed on.

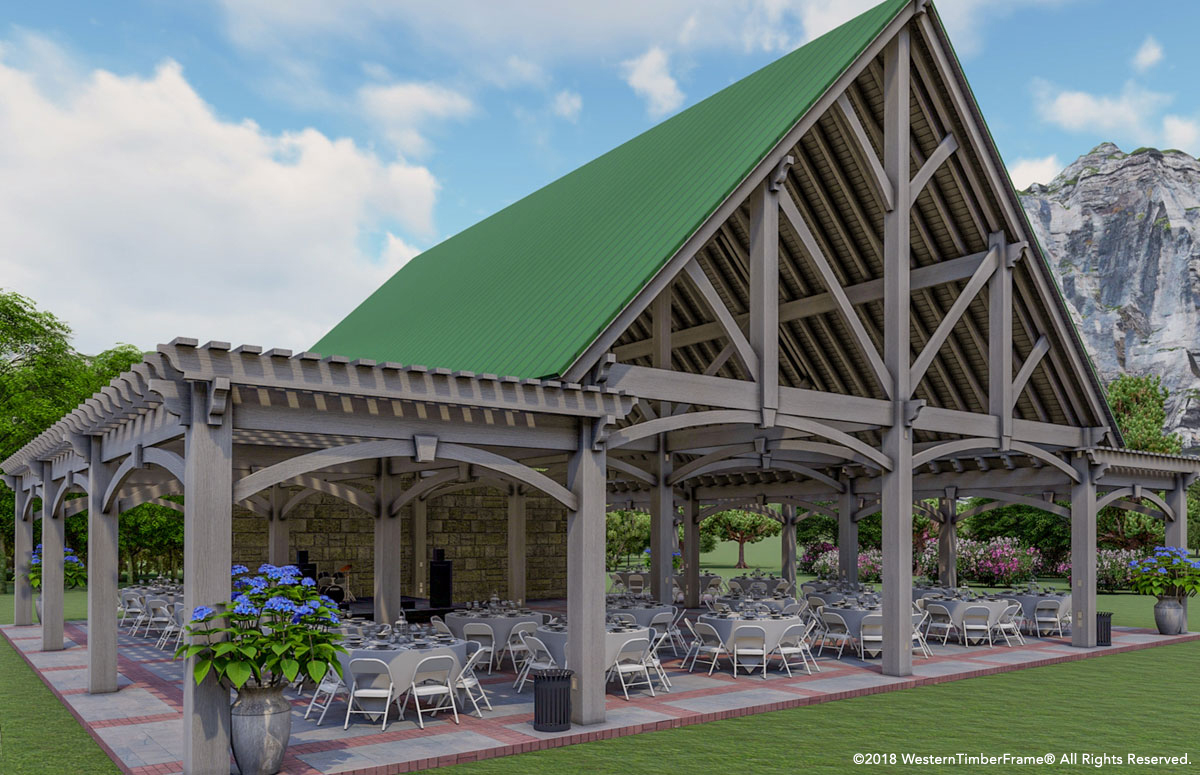

Concept drawing of a gray timber reception pavilion with a green metal roof and pergola wings over banquet tables
Reception center concept, with pergola wings on both sides.
Front view drawing of a timber reception pavilion with a steep gable, exposed trusses and covered seating on both sides
Front elevation.
Side view drawing of the reception pavilion showing the long pergola wing and the green roof behind it
Side elevation.
Aerial view drawing of the reception pavilion with round banquet tables under the gable and pergola wings
From above, with the tables laid out.
Rear view drawing of the reception pavilion with a stone wall, green roof and covered seating along one side
From the back, showing the stone wall.
Drawing from under the pergola wing, showing arched braces, lattice rafters and tables set along a stone wall
Standing under the wing.
Interior drawing looking up at the pavilion's timber trusses, with mountains framed through the open end
Looking up at the trusses from the floor.

Pavilion Plans Are Not Only for Big Projects

The same drawing process covers the small ones. This entry awning is a few timbers over a doorway, and it still gets drawn against the actual brick, at the actual height, with the roof color chosen before anything ships.

That is the useful part of a concept drawing at any size: it turns an idea people are describing differently in their heads into one picture everyone can point at.

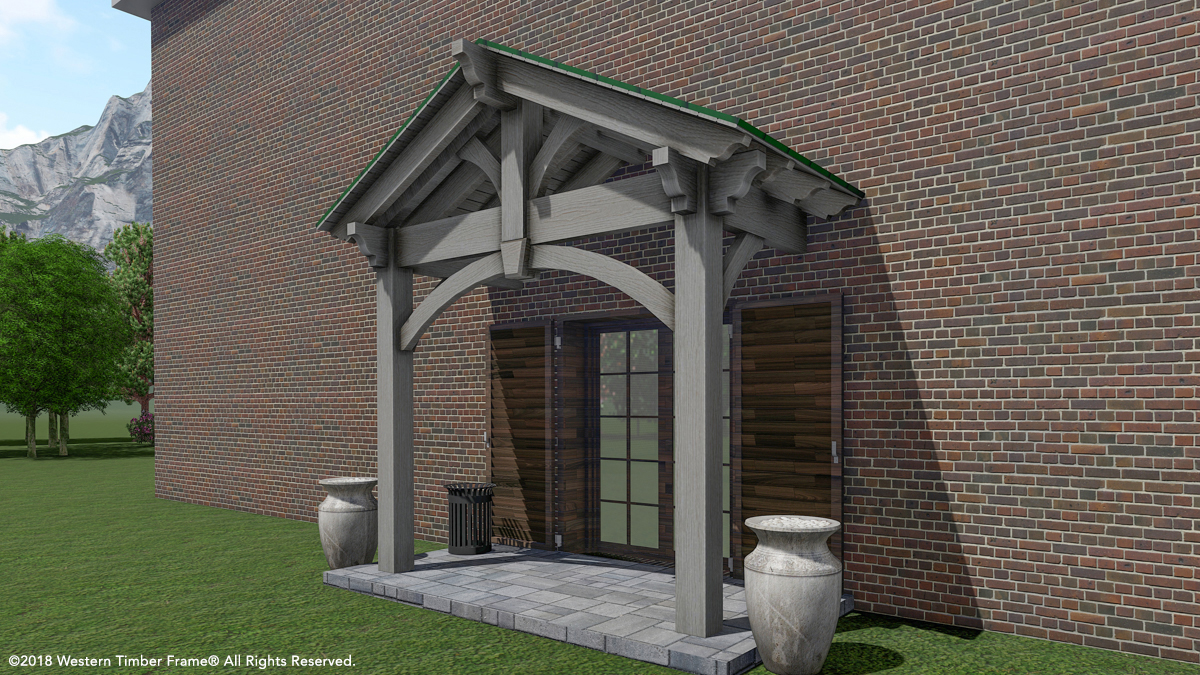

Drawing of a small timber entry awning with a green roof over a doorway in a brick wall, with urns to each side
An entry awning, drawn to the same standard.
