Poolside Ramada and Pergola: Two Arizona Timber Installs

These two Arizona pool projects show the two ways to shade a backyard: a 16′ × 16′ hip roof ramada with a solid metal roof, and a 12′ × 14′ timber pergola with open shade planks. Both have TimberVolt® power posts, so the lights and outlets are built right into the timber for evening entertaining.

Hip roof timber ramada with a red metal roof and arched knee braces standing beside a backyard pool in Arizona
A timber ramada beside the pool.

Key Takeaways

  • Ramada: 16′ × 16′ hip roof with a solid metal roof
  • Pergola: 12′ × 14′, 6000 Series, open shade planks
  • Power: TimberVolt® posts with hidden wiring
  • Purpose: shade and shelter beside the pool, day and night

Why Add Shade Beside an Arizona Pool?

A shaded area that also protects from the weather lets a family use the whole backyard at any hour. A gazebo, pavilion, pergola, or ramada all do the job, and with lights and power built in, the space works for evening entertaining too. The tight timber joinery keeps the look clean, with little visible hardware.

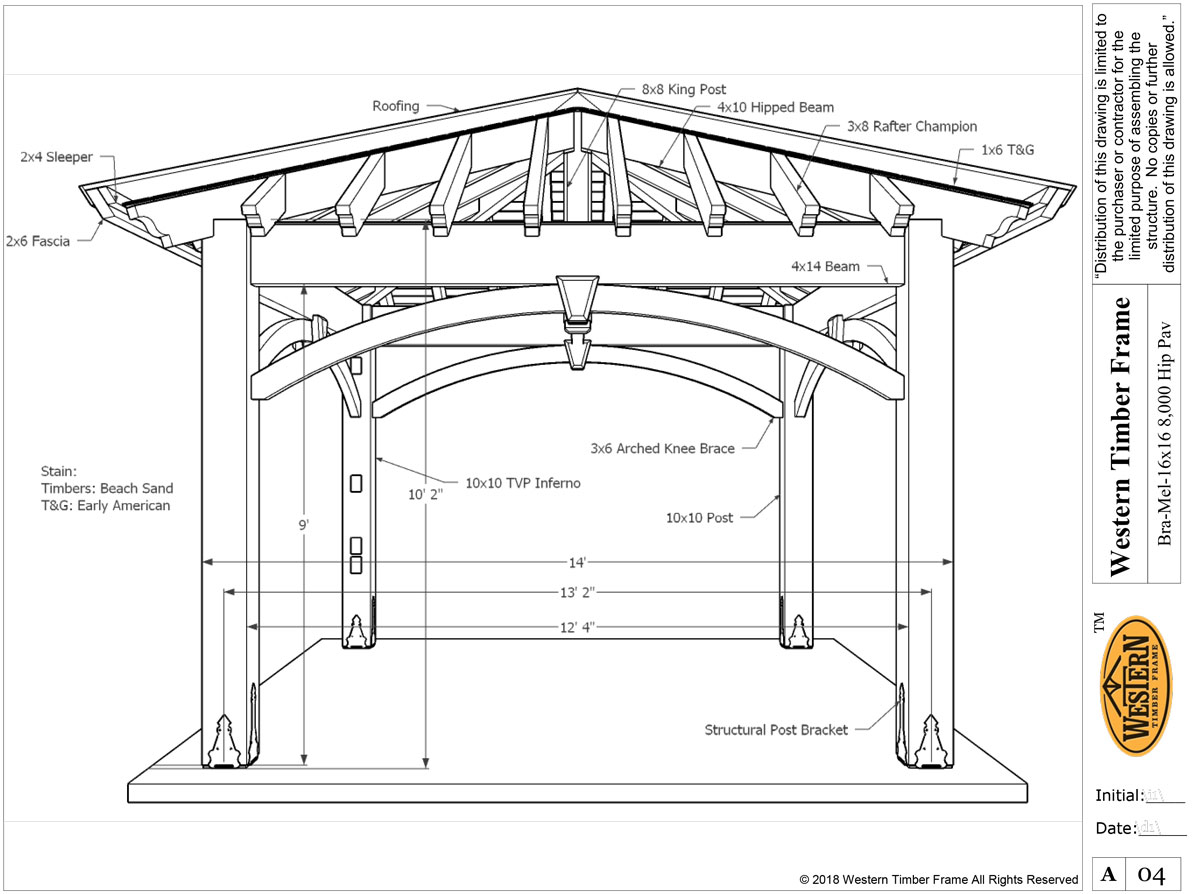

What Is a 16′ × 16′ Hip Roof Ramada?

A ramada is an open-sided shelter with a solid roof. This one has a hip roof covered in red metal, a tongue and groove ceiling, and arched knee braces, so it blocks both sun and rain beside the pool.

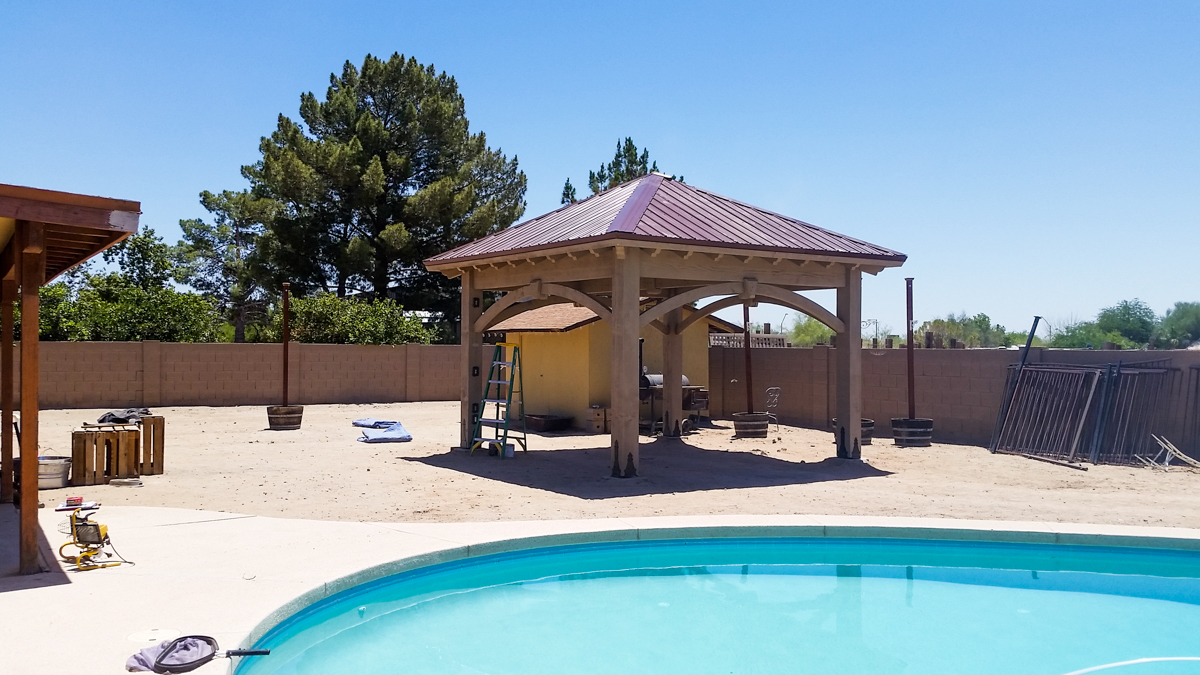

Newly built 16 by 16 foot hip roof ramada on a sandy desert yard next to a kidney-shaped pool and a block wall
Just installed.

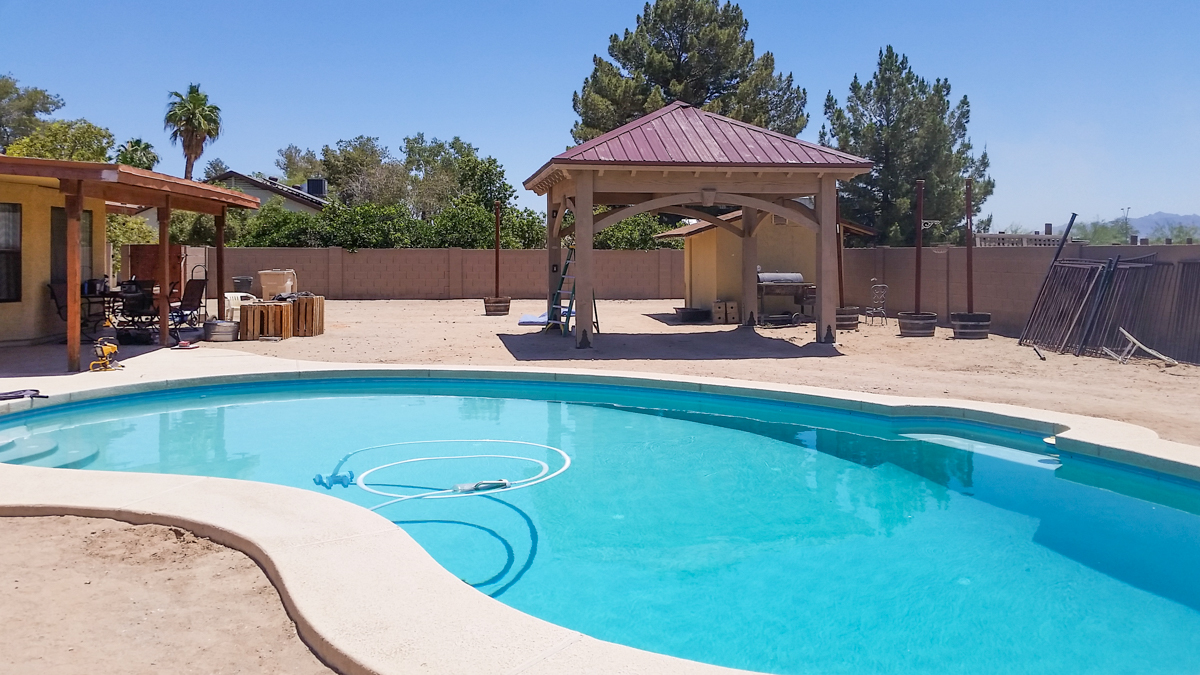

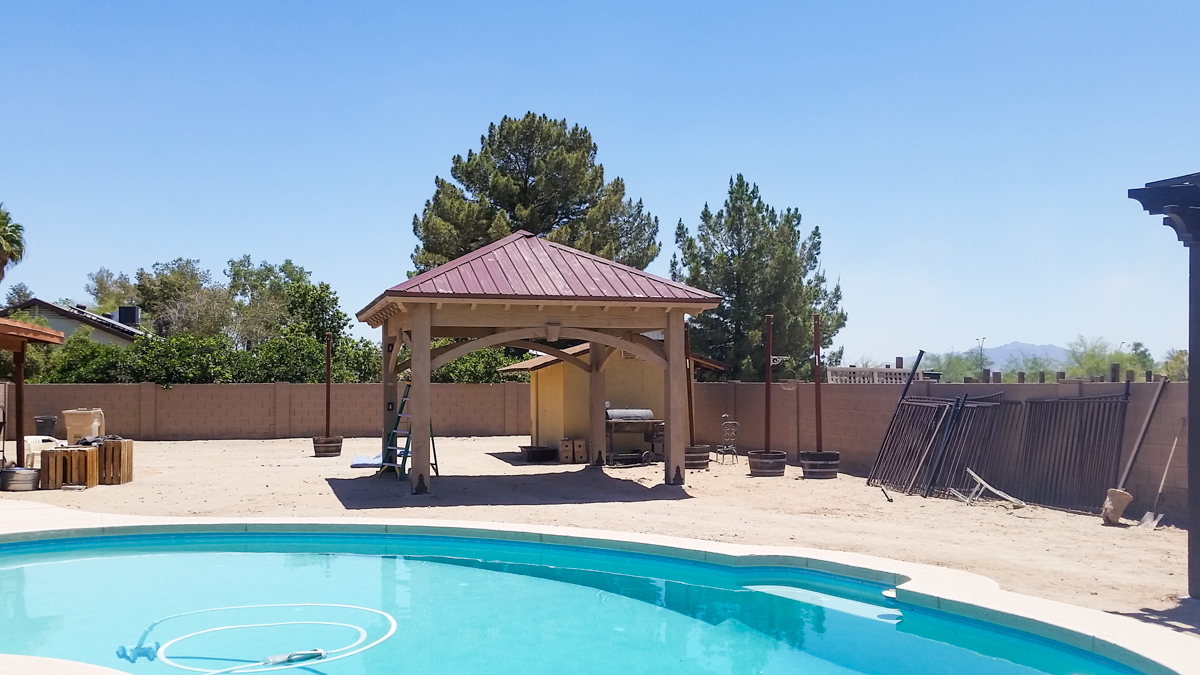

Timber ramada with a red metal hip roof seen across a sparkling backyard pool on a sunny Arizona day
Across the pool.

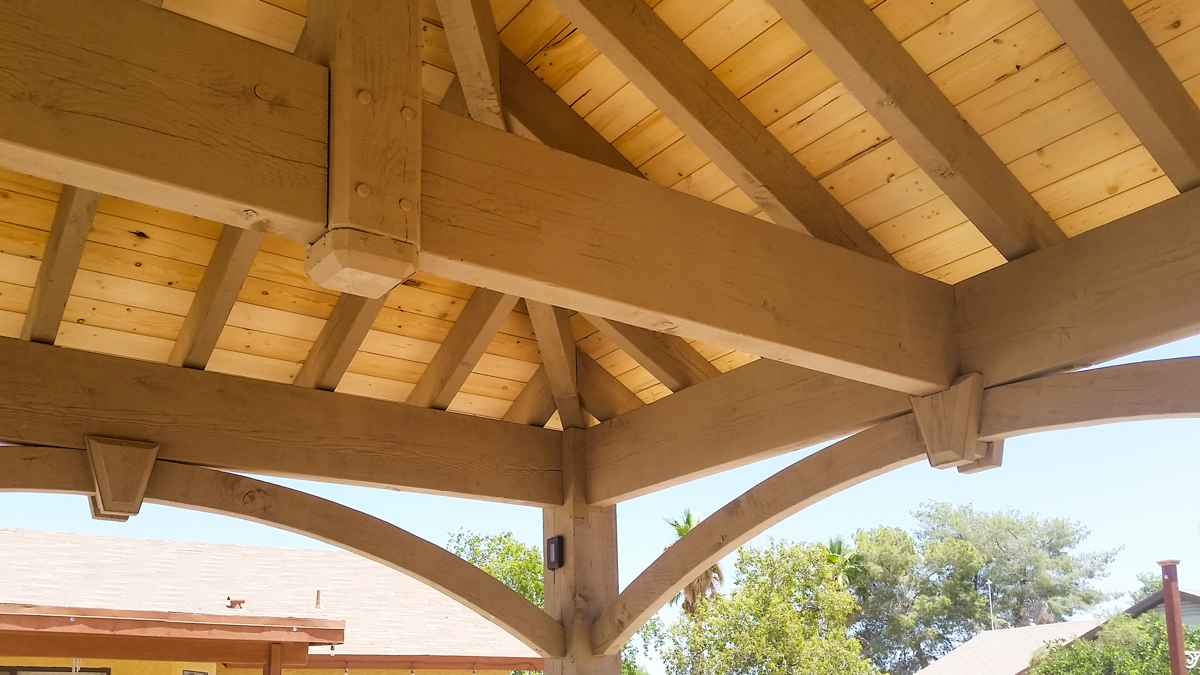

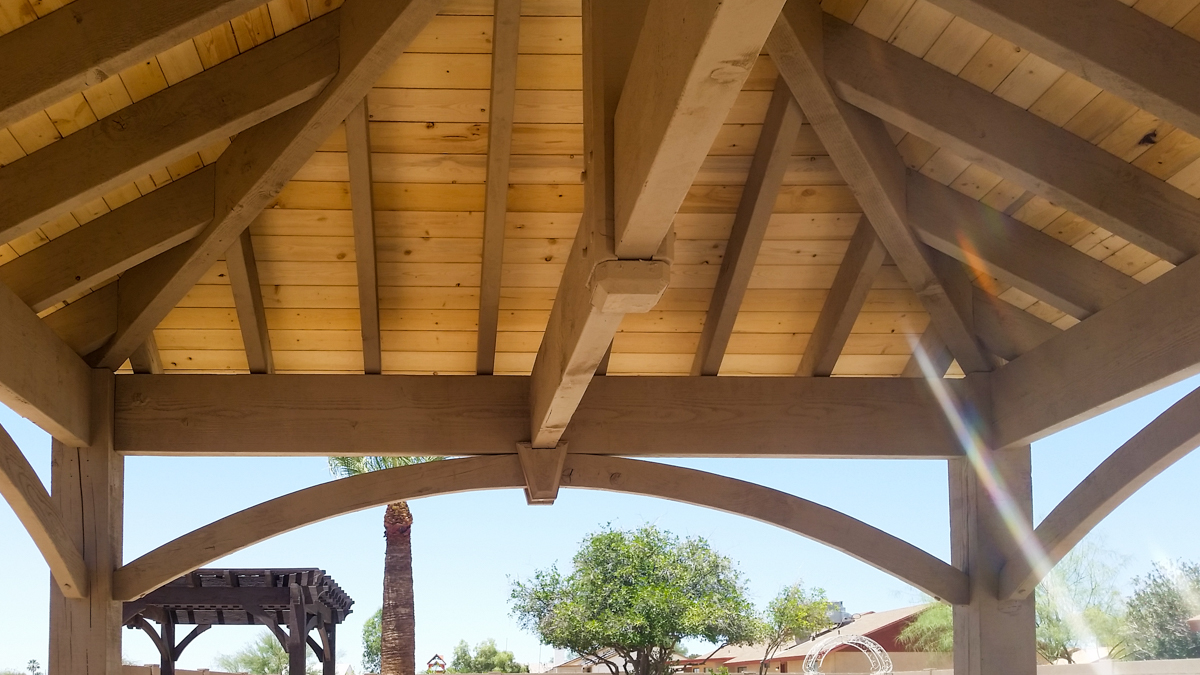

Looking up at the tongue and groove ceiling, hip rafters, and arched knee braces inside a timber ramada
The tongue and groove ceiling.
Underside of a timber ramada roof showing the hip framing, beams, and a curved knee brace against blue sky
Hip framing overhead.

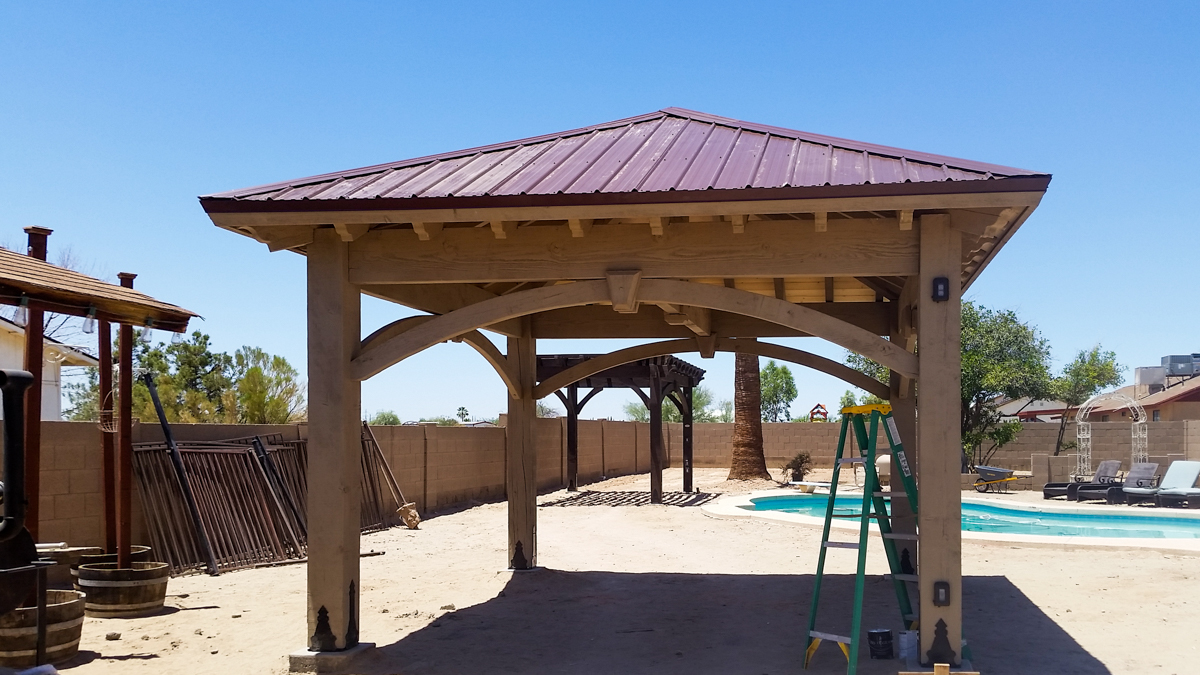

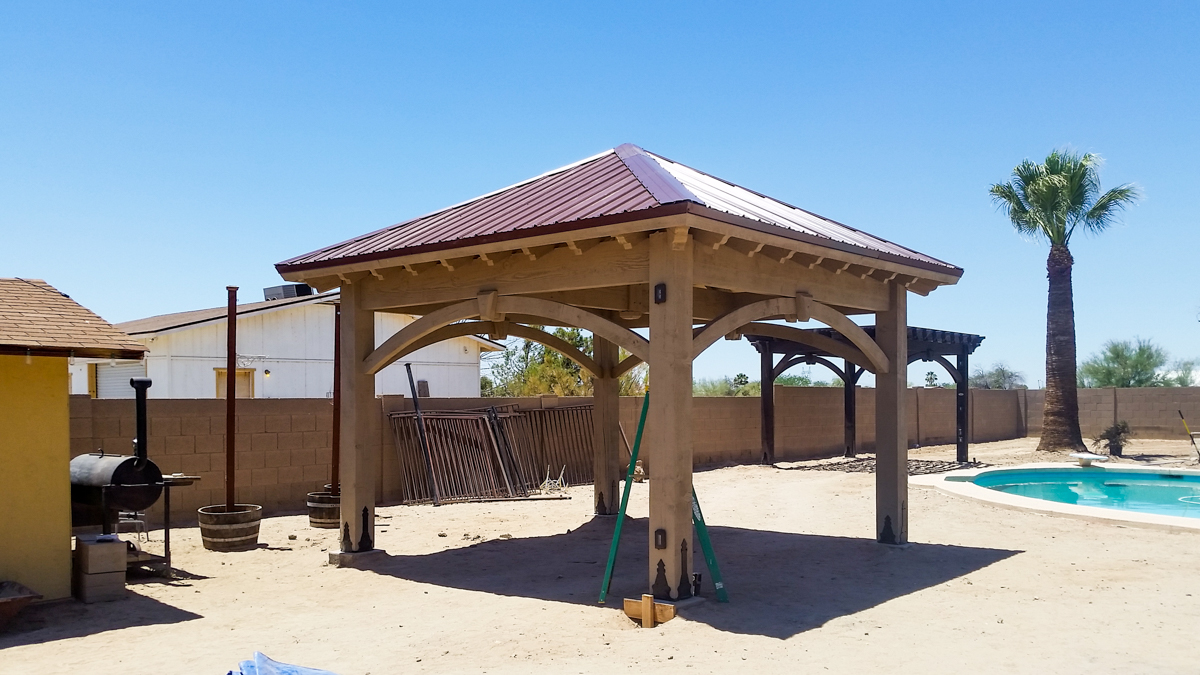

Front view of a timber ramada with arched knee braces and a red metal hip roof beside a pool in a sandy yard
Arched knee braces.
Hip roof ramada at the far end of a backyard pool, with a pine tree and a tan block wall behind it
At the end of the pool.

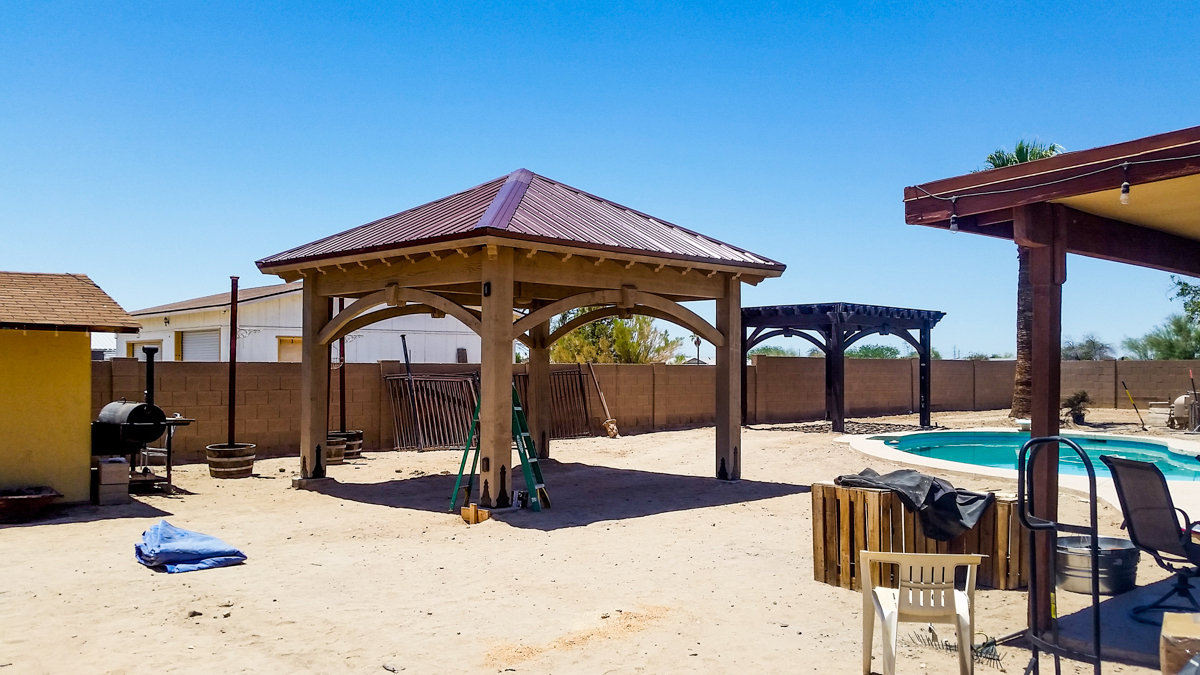

Front view of a timber ramada with arched braces, a smoker grill beside it, and a palm tree behind it
Next to the grill.

What Does the 12′ × 14′ Pergola Look Like Before and After?

The 6000 Series pergola went into a bare, sandy corner beside the pool and diving board. Its open shade planks filter the sun while letting air move through.

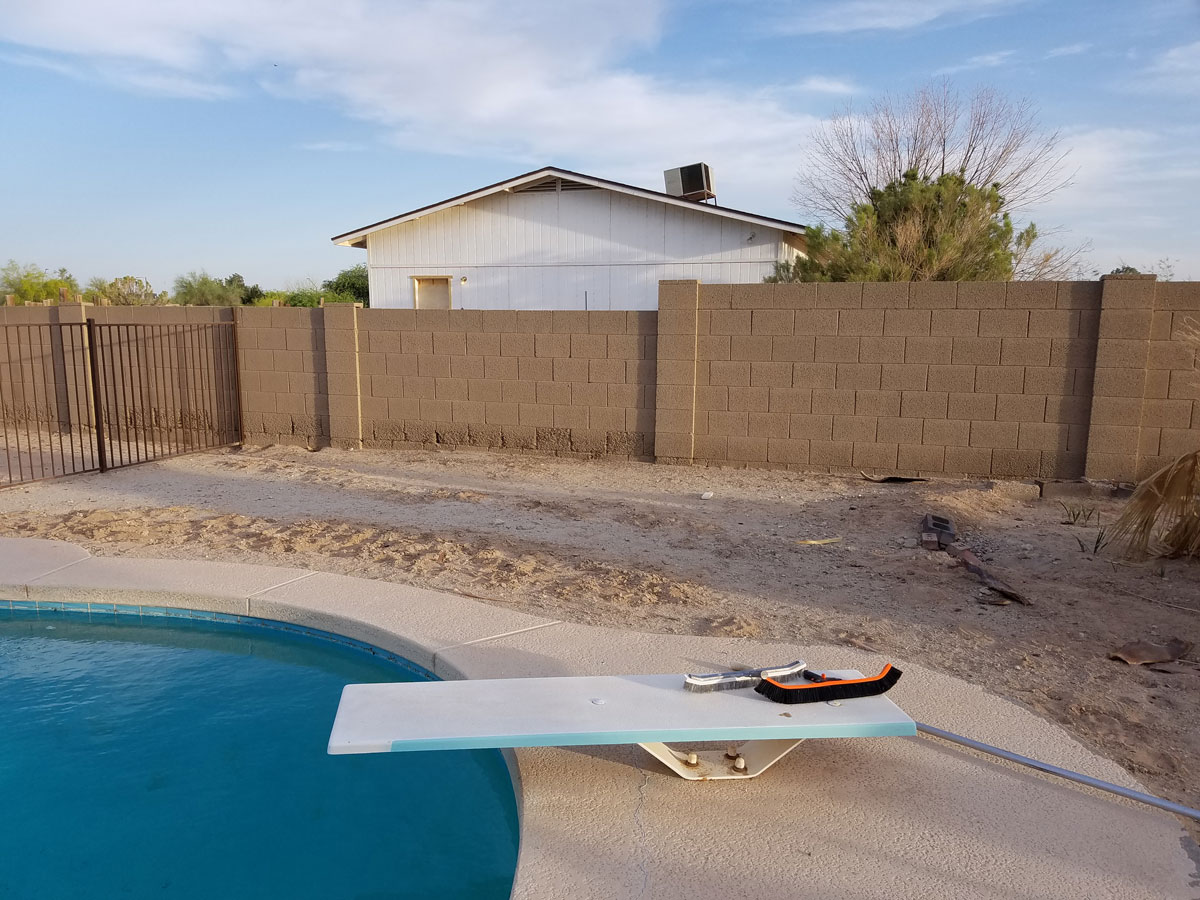

Before: a bare sandy corner beside a backyard pool with a diving board and a tan block wall, waiting for a pergola
Before.

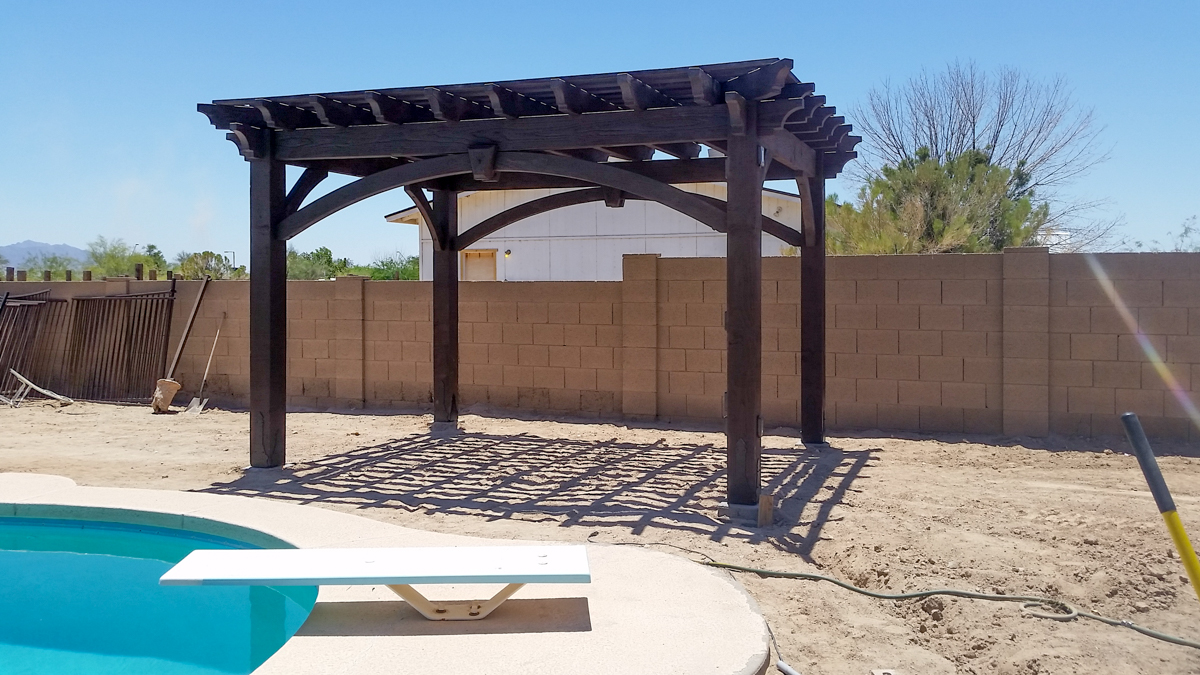

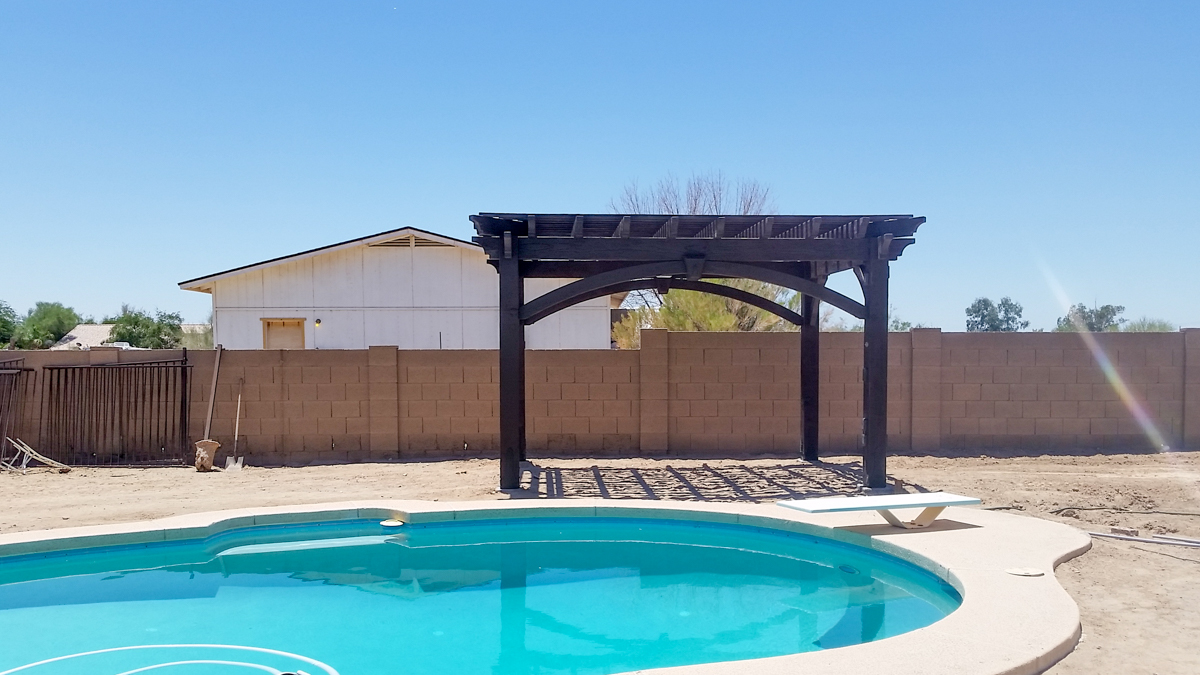

After: a dark timber pergola casting striped shade over the sandy corner beside the pool and diving board
After.

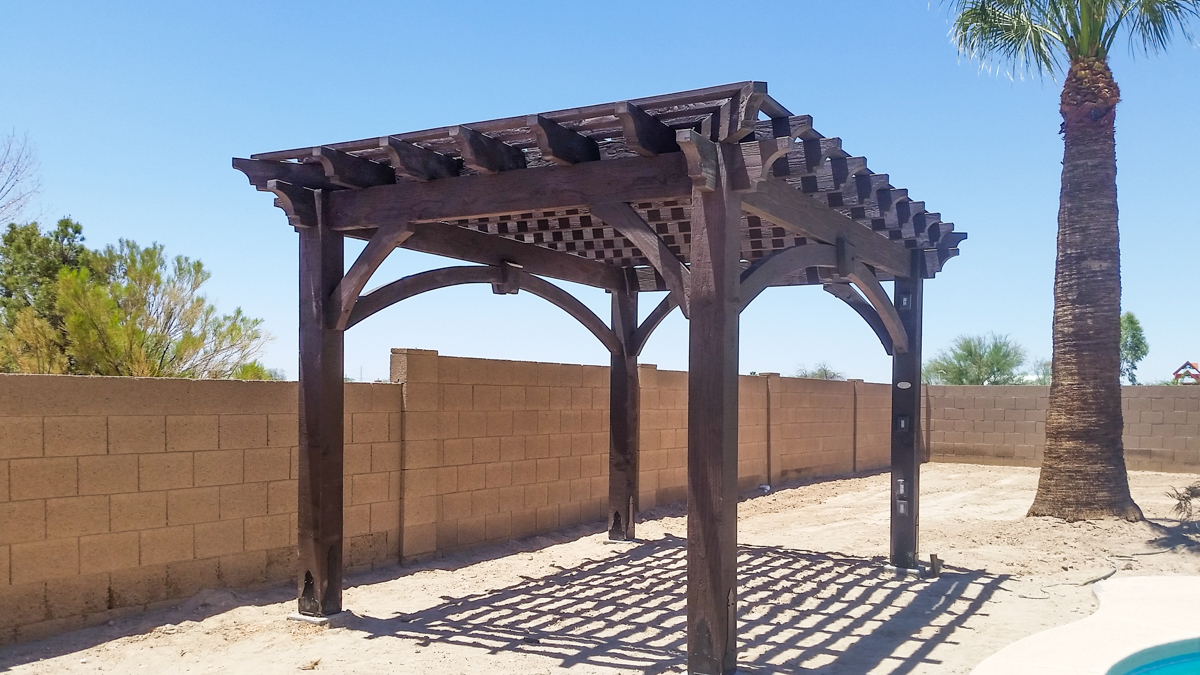

Dark-stained 12 by 14 foot timber pergola with arched braces standing beside a backyard pool and block wall
The finished pergola.
Timber pergola with shade planks seen across the pool from the diving board in a desert backyard in Arizona
Seen from the diving board.

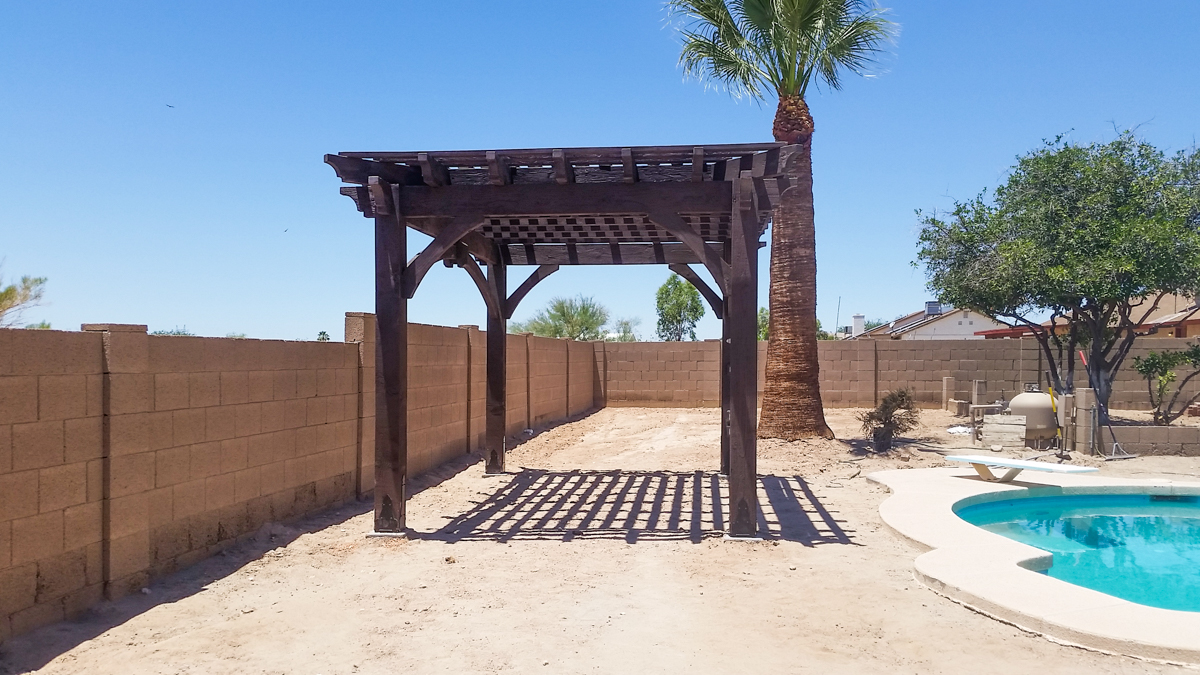

Side view of a 6000 Series timber pergola near the pool, with a palm tree and a block wall behind it
Side view.

How Does TimberVolt® Power Work?

The TimberVolt® power posts are drilled through their full length, so the wiring and outlets are hidden and protected inside the timber. That makes it easy to add lights for evenings by the pool.

Questions About Ramadas and Pool Pergolas

What is a ramada?

A ramada is an open-sided shade shelter with a solid roof, common in the Southwest. A timber ramada works much like a pavilion.

What is the difference between a ramada and a pergola?

A ramada has a solid roof that blocks sun and rain. A pergola has open rafters and shade planks that filter the sun.

What size are these structures?

The ramada is a 16′ × 16′ hip roof structure, and the pergola is a 12′ × 14′ kit from the 6000 Series.

How is power added?

TimberVolt® power posts are drilled through their full length, so the wiring and outlets are hidden inside the timber.

Is timber comfortable in the Arizona heat?

Wood is a low conductor of heat, so the posts get warm in the sun but not hot enough to burn on contact the way metal can.
