Plan For An Easy 16′ x 20′ DIY Solid Wood Pergola or Pavilion
A 16×20 pavilion gives you 320 square feet of outdoor living space — but numbers only tell part of the story. It’s the size where everyone stops squeezing around the table, the outdoor kitchen finally has room to breathe, and no one has to wonder where to put one more chair. Roughly the size of a generous indoor living room, a 16′ x 20′ pavilion gives you room to entertain, cook, relax, or add features like privacy walls, screens, or an outdoor fireplace without the space ever feeling crowded.
Since 2008, Western Timber Frame™ has delivered more than 7,000 heavy timber structures to all 50 states — and among freestanding pavilions, the 16′ x 20′ has become one of our most requested sizes. Every structure is made to order and engineered for your property, arriving precision-cut, pre-drilled, and factory pre-stained with a premium UV-protective finish, so you’re assembling craftsmanship — not figuring it out as you go. Most are installed in a single day.
Quick Overview
- A 16′ x 20′ pavilion or pergola is a full-size outdoor living room — 320 sq ft with wide-open air on every side.
- Western Timber Frame™ kits arrive ready to assemble: pre-cut CNC joinery, pre-drilled, pre-stained. Installation typically takes an afternoon to a day.
- The Dovetail Difference® uses an interlocking wood-to-wood connection that becomes tighter under load, creating exceptional structural strength without nails, glue, or exposed metal brackets.
- EarthAnchor™ structural knife plates come standard on every pergola — rated for 120+ mph winds, engineerable to 160+ mph.
- Todd Fratzel, a licensed contractor and founder of Home Construction Improvement, chose a Western Timber Frame™ kit because it cost him less than sourcing his own materials — even with his industry contacts.
A Builder Who Ran the Numbers
Todd Fratzel is a licensed contractor and construction engineer from New Hampshire. He ran Home Construction Improvement, where he spends his days evaluating building methods, materials, and costs. So when it came time to build a solid wood pergola for his own backyard, he approached it the way any experienced builder would: he did the math.
He priced the Douglas Fir. The hardware. The stain. The fasteners. The milling. The time. Then he called Western Timber Frame.
The surprise wasn’t that he bought a timber pergola kit. The surprise was why.
Even with access to contractor pricing and supplier discounts, the complete Western Timber Frame structure cost less than sourcing the materials himself. It also arrived precision-cut, pre-drilled, and factory pre-stained, eliminating days of layout, cutting, drilling, and finishing. With help from his sons, the structure went together like a giant set of Lincoln Logs, and by the end of the day it was standing in his backyard.
That says something worth paying attention to. If a builder with industry pricing decides the numbers favor a complete timber structure over buying raw materials, the economics are likely even more compelling for a homeowner paying retail prices. It’s one advantage of building more than 7,000 heavy timber structures since 2008.
Western Timber Frame purchases premium Douglas Fir in mill-direct volumes that simply aren’t available to a single backyard project.

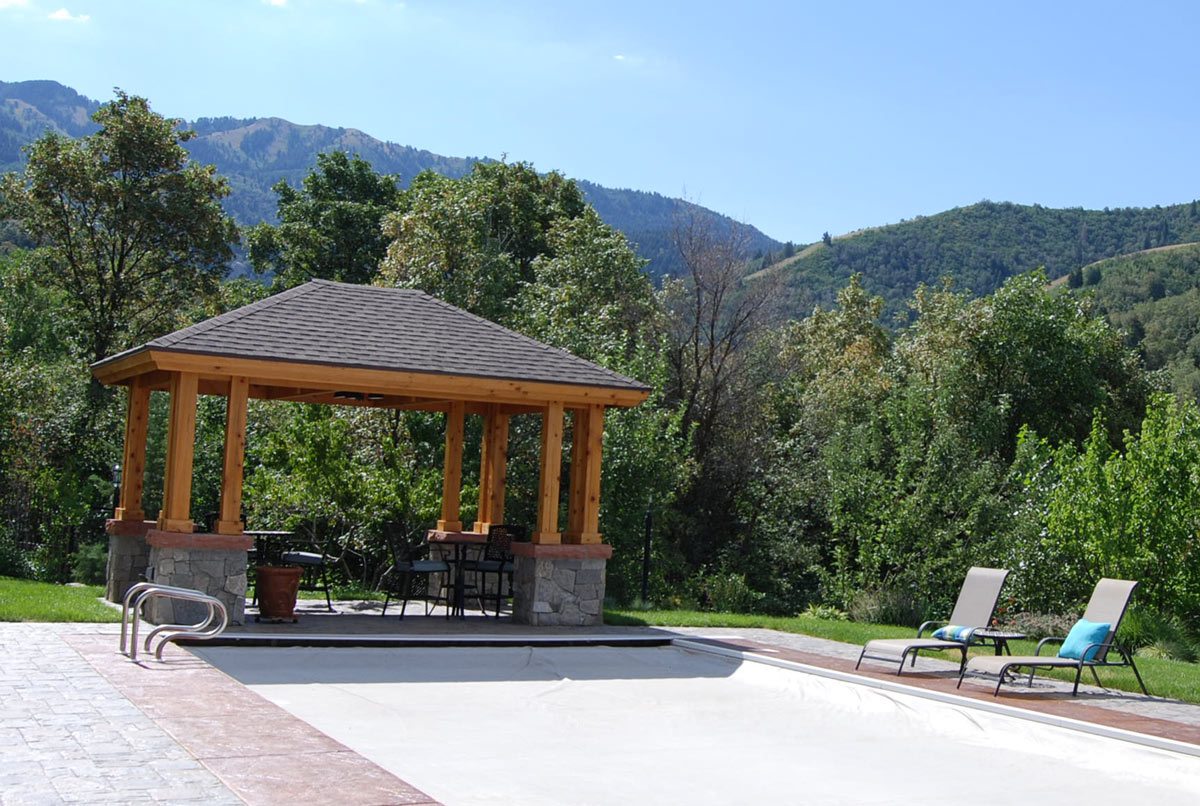

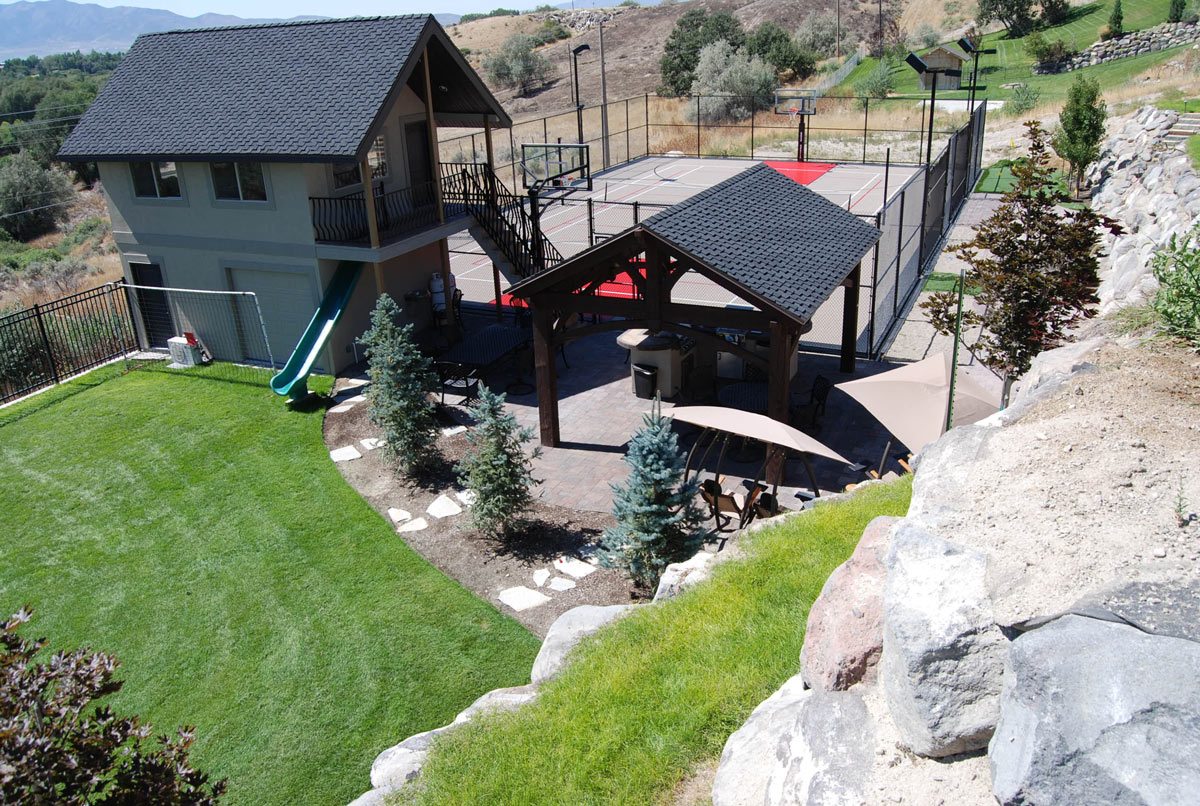

A 16×20 Pavilion That Becomes the Backyard
A great pavilion doesn’t compete with the rest of your landscape—it brings everything together. This 16′ × 20′ design connects the pool, patio, retaining wall, and seating areas into one outdoor living space where people naturally gather. It’s one reason this footprint is so popular. Large enough to create a true outdoor room, yet proportioned to fit comfortably in most backyards, a 16′ × 20′ pavilion often becomes the place where family dinners, game days, and quiet evenings all happen in the same space.
Why a 16′ × 20′ Pavilion Feels Bigger Than It Is
The average indoor living room in a mid-size American home measures about 16′ × 16′—roughly 256 square feet. A 16′ × 20′ pavilion gives you 320 square feet, about 25% more space than many living rooms. But what makes this size feel different isn’t the extra square footage. It’s what that extra room allows you to do.
You stop arranging furniture around limitations and start arranging it around the way you actually live. There’s room for the dining table and the conversation area. The grill isn’t competing with the seating. Someone can carry a tray through the space without asking everyone else to move. You stop deciding what your outdoor space can’t do and start discovering everything it can.
That’s one reason the 16′ × 20′ has become one of our most popular freestanding pavilion sizes. Not because it’s the right size for every backyard, but because it often strikes the balance between generous and practical. Every Western Timber Frame structure is made to order and engineered for its specific site, so the dimensions, roof design, and architectural details are tailored to your home, your property, and the way you want to live outdoors.
See real installations in the project gallery.
What Ships in a 16′ x 20′ Kit
Every Western Timber Frame™ kit arrives as a complete package. Nothing to source separately, nothing to figure out on site:
- Pre-cut solid timber — CNC-milled Douglas Fir (standard) with precision joinery. No field cuts needed.
- Pre-drilled connections — every bolt hole placed in the shop, not on a ladder.
- Pre-stained finish — premium UV-protective stain applied before shipping. No separate stain bill.
- All structural hardware — including EarthAnchor™ structural knife plates (corrosion-resistant aluminum) and the patent-pending moisture cap system, both standard on every pergola.
- The Dovetail Difference® — Our patented (U.S. Patent No. 9,797,149 B2) interlocking wood-to-wood connection transfers loads efficiently through the timber itself, creating an exceptionally strong structural joint without nails, glue, or exposed metal brackets.
- Engineering and stamped drawings — where required by your jurisdiction.
- Assembly guide, plans, photos, and phone support — call during install if you need a hand.
For pavilions and gazebos (roofed structures), you’ll source roofing materials locally. Local sourcing always costs less than having roofing shipped, and your roofer can match whatever style fits your home.
Timber Series at a Glance
Western Timber Frame™ offers four timber series, each engineered for the same ShadePrint™ coverage of 80–85% (varies by orientation, time of day, and time of year). The difference between series is timber mass and the visual presence that comes with it:
|
Series |
Post Size |
Character |
|---|---|---|
|
6,000 Series |
6×6 posts |
Clean, streamlined profile — great over patios and dining areas |
|
8,000 Series |
8×8 posts |
Substantial timbers with real visual weight |
|
10,000 Series |
10×10 posts |
The size that stops traffic — unmistakable timber-frame presence |
|
12,000 Series |
12×12 posts |
Grand-scale timber — commercial feel for residential spaces |
How Fast Does a DIY Install Actually Go?
Faster than you’d guess. Because every joint is pre-cut with CNC precision and every bolt hole is pre-drilled, the on-site work is assembly, not construction. The hard thinking happened in the shop before the kit shipped.
A typical DIY install with a few helpers takes a day to a weekend, depending on size and crew experience. Hire a local contractor and most finish in a day. Western Timber Frame’s own install crew? Usually an afternoon to a full day.
The gap between what people expect (a multi-day construction project) and what actually happens (a day of assembly) is one of the most consistent things we hear from families after the install. Pre-cut joinery is the reason. When the timbers slide together the way they’re supposed to, you’re not fighting the build — you’re just following the plan. Read more about what to expect on install day.
16′ x 20′ Pavilion and Pergola Showcase
Below are real 16′ x 20′ installations from families across the country. Pull up these photos and look at the details — the board thickness, the post dimensions, the arched knee braces, the connection points. Compare them side by side with any other kit on the market. You don’t have to take our word for it.

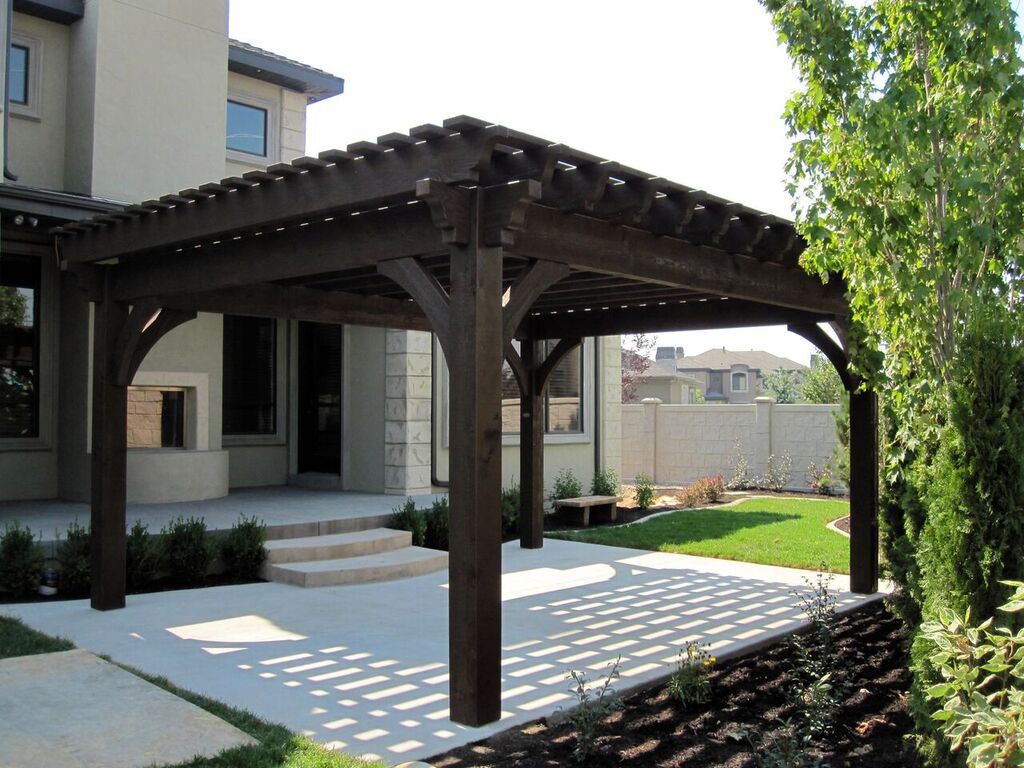

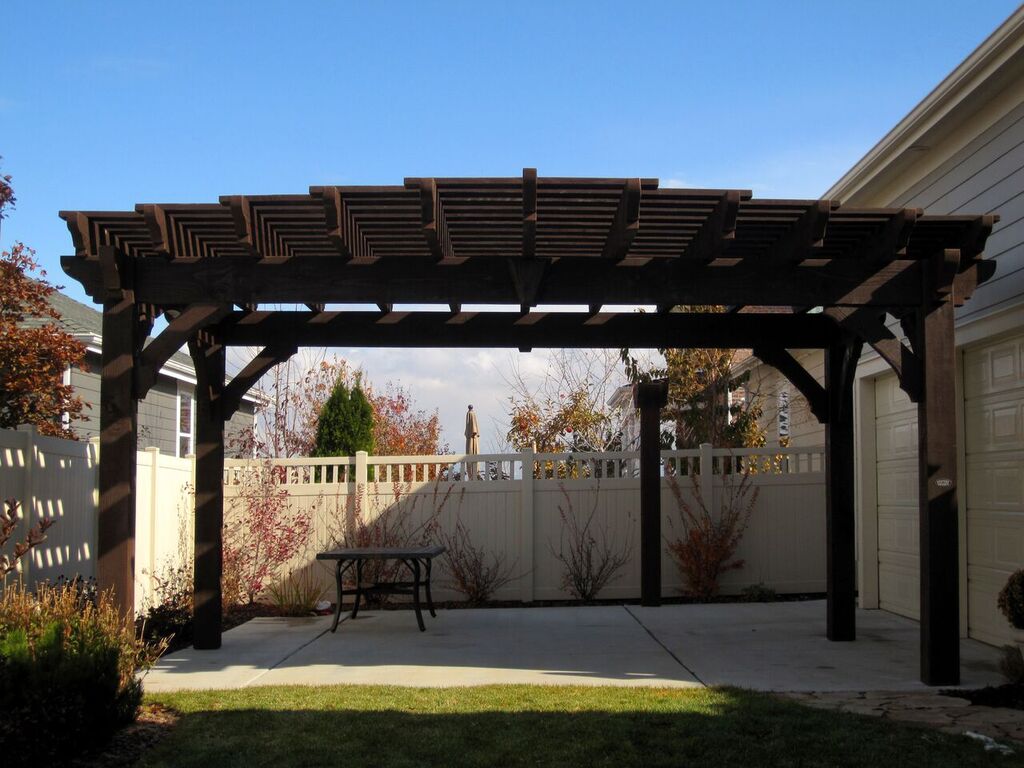

An Attached Pergola That Extends Your Home
A 16′ × 20′ attached pergola creates more than shade—it creates another place to live. This custom Douglas Fir pergola transforms a simple concrete patio into a comfortable outdoor room with space for a porch swing, outdoor seating, and everyday relaxation. Because every Western Timber Frame pergola is made to order and engineered for its specific site, homeowners can customize the dimensions, timber details, beam end profiles, stain color, and shade coverage to complement both their home and the way they enjoy their backyard.

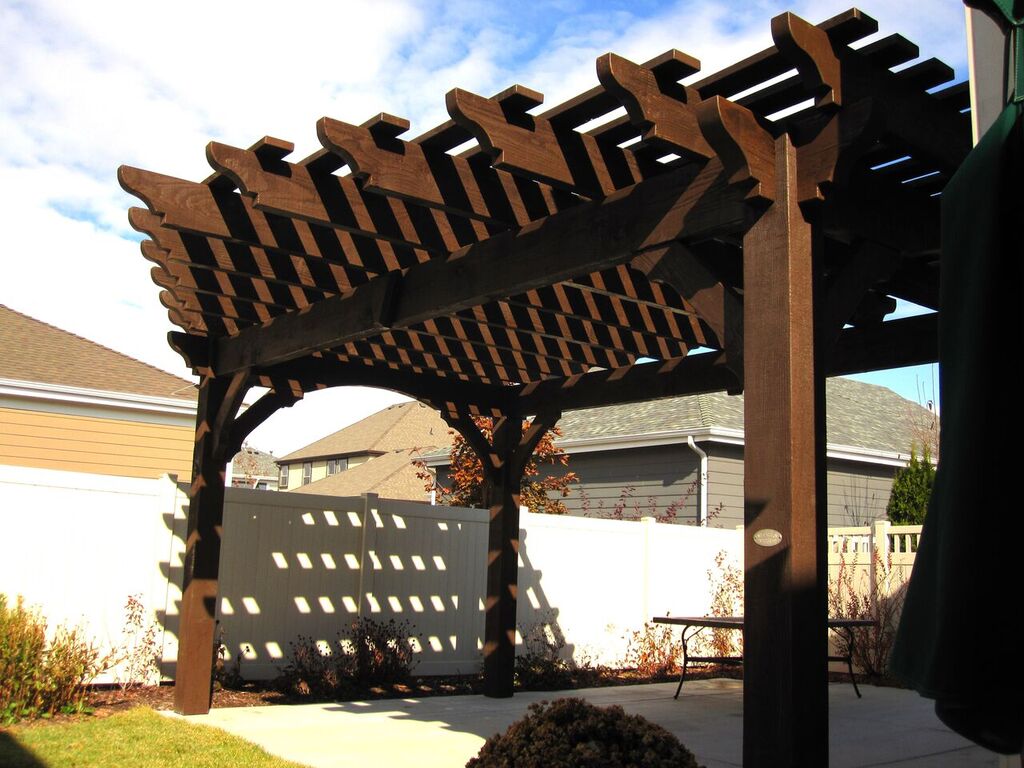

A 16×20 Pergola That Creates Outdoor Privacy
A 16′ × 20′ pergola kit provides enough space to do more than add shade. It gives you room to create distinct outdoor living areas with features like an integrated timber privacy screen, making the space feel comfortable and secluded without sacrificing openness. Because every Western Timber Frame pergola is made to order and engineered for its specific site, the size, privacy walls, beam details, and finishes can all be customized to fit your home, your landscape, and the way you live outdoors.

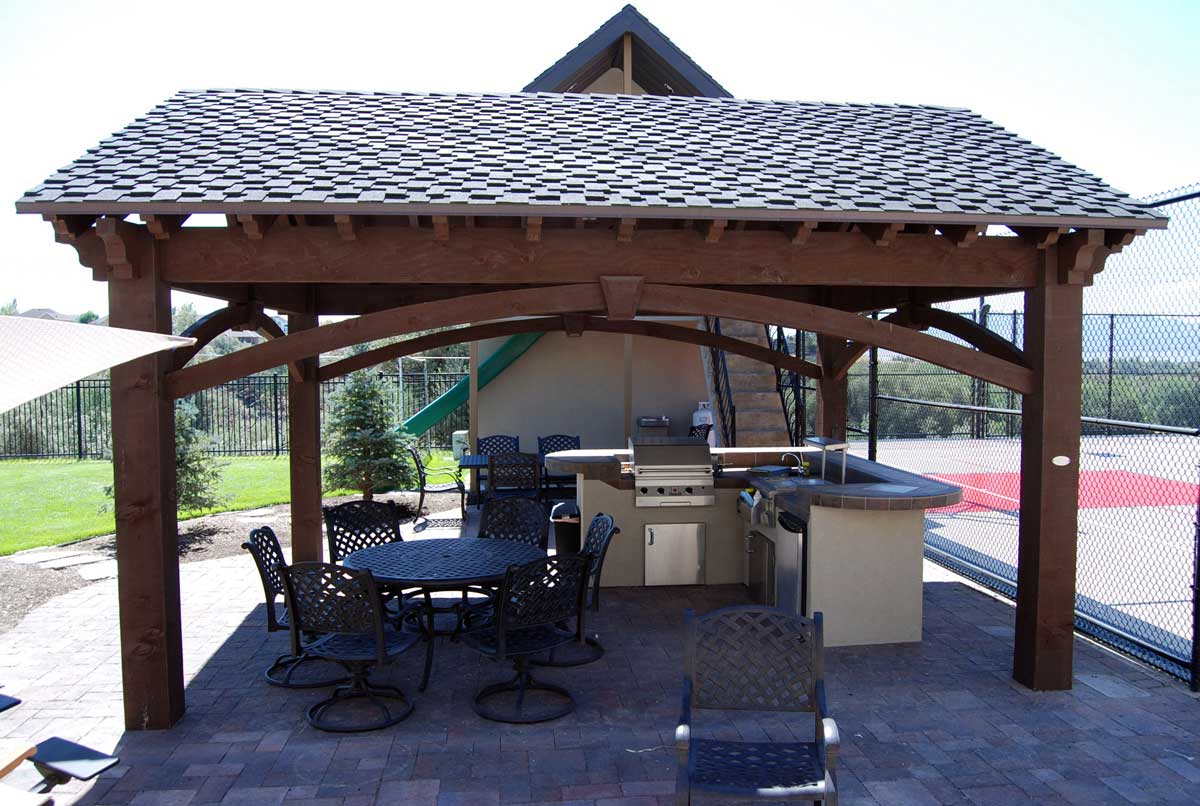

A 16×20 Pavilion with an Outdoor Kitchen
A newly installed 16′ × 20′ pavilion kit comfortably covers more than just a table. It provides room for a complete outdoor kitchen, dining area, and gathering space while keeping everything protected beneath a solid roof. Because every Western Timber Frame pavilion is custom designed, homeowners can tailor the layout, roof style, timber details, and utilities to match the way they cook, entertain, and live outdoors.

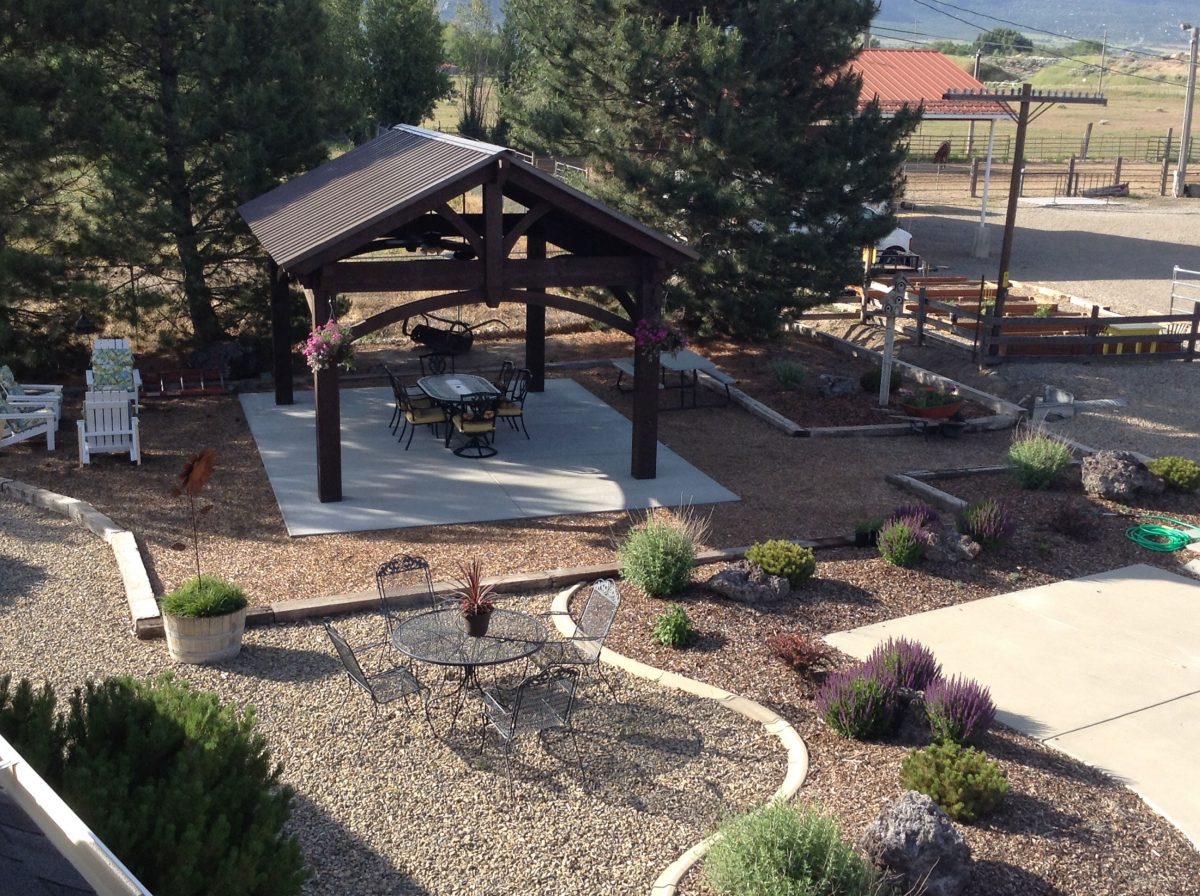

A 16×20 Pavilion in a Real Backyard
One reason a 16′ × 20′ roof size is so popular is its versatility. Large enough to cover a dining set, lounge furniture, or even an outdoor kitchen, it creates a defined gathering space without overwhelming the landscape. Because every Western Timber Frame structure is made to order, the roof size, post placement, timber details, finishes, and overall layout can all be customized to complement the home and property.

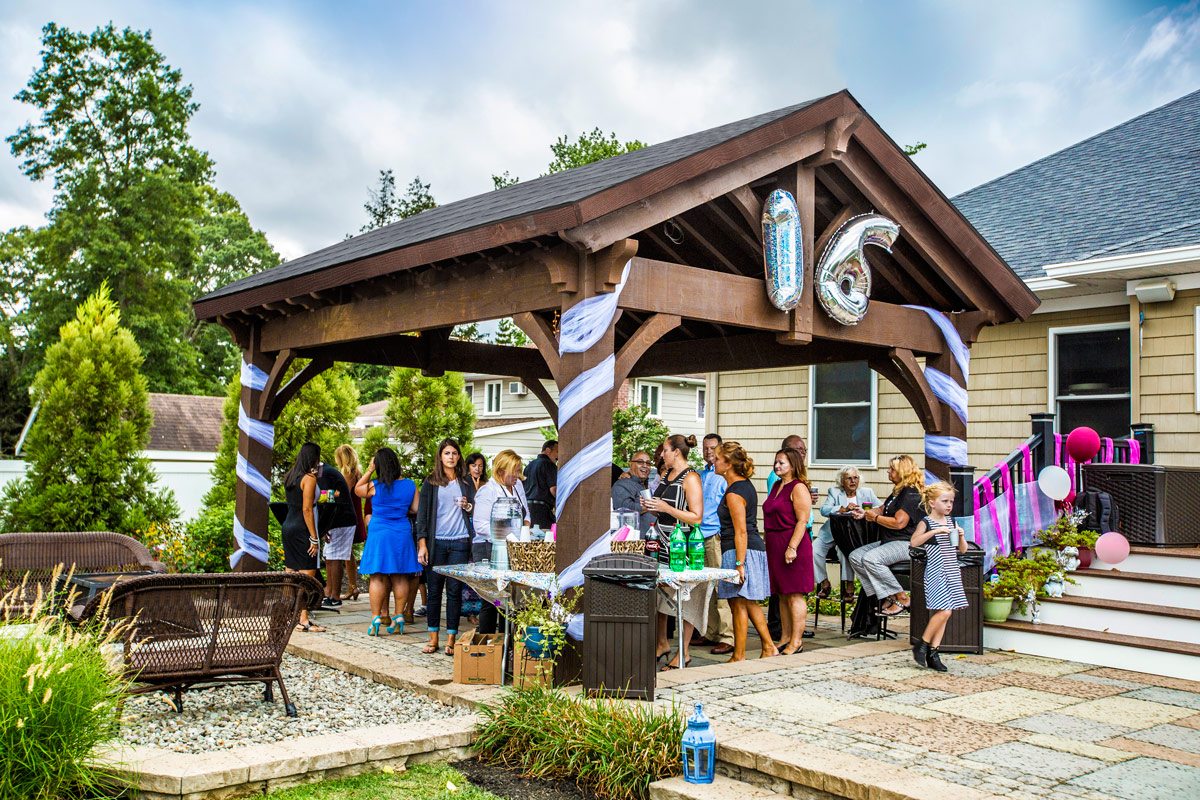

A 16×20 Pavilion Made for Gathering
The best way to understand a 16′ × 20′ pavilion is to see it in use. Whether it’s a birthday celebration, a family dinner, or friends stopping by on a summer evening, this footprint comfortably brings people together. It’s one reason the 16′ × 20′ remains one of our most popular pavilion sizes. Every structure is custom built and engineered for its specific location, creating an outdoor space that’s designed around the people who will enjoy it for years to come.
Built for the Way People Actually Use It
There’s a difference between a pavilion that looks substantial and one that actually is.
A Western Timber Frame pavilion isn’t decorative timber held together with brackets and fasteners. It’s built from solid Douglas Fir and joined with The Dovetail Difference®—our patented, interlocking wood-to-wood connection that transfers structural loads through the timber itself. No nails. No glue. No exposed metal brackets.
That kind of strength changes what the structure can become. Porch swings. Outdoor lighting. Ceiling fans. An outdoor kitchen beneath a full roof. The confidence to use the space without wondering whether the structure is up to the task. Beneath it, EarthAnchor™ Structural Knife Plates, concealed structural anchoring — standard on every pergola — are rated for 120+ mph winds and can be engineered for 160+ mph in hurricane zones.
If you’ve invested in a well-built home, the last thing you want beside it is a structure that feels temporary. A pavilion should belong with the house—not look like an accessory added later. That’s why we build with solid heavy timber, not lightweight components engineered to meet a price point. The result isn’t simply a stronger structure. It’s one that feels right from the day it’s installed and continues to feel that way years later.
The Wood: Douglas Fir, Coast Redwood, and Cedar
Douglas Fir is the standard on roughly 95% of Western Timber Frame™ structures. It’s strong, straight-grained, and takes stain beautifully. For coastal environments, Coast Redwood is the recommended species — naturally resistant to moisture and insects. Cedar is another option for moisture-heavy climates.
Wood regulates temperature in a way that metal and vinyl can’t. In direct sun, a solid timber beam stays warm to the touch while a metal pergola becomes a griddle. Under shade, the wood cools naturally. The USDA Forest Products Laboratory has documented for decades why solid wood outperforms engineered alternatives in outdoor structural applications.
Planning Questions About a 16′ × 20′ Pavilion
Ready to Build Around Your Life?
Every project begins with a conversation about your space, your style, and how you want to use it — so the structure you get is sized right for the way you actually live, not oversized for the sake of it.
