Easy Pre-Cut Drop-In Rafter Beams for DIY Timber Frame Arbor and Pergola Kits

Pre-cut drop-in rafter beams make a DIY timber frame arbor or pergola kit simple to install. Each layout beam arrives with slots precisely cut at the right spacing, so every rafter drops neatly into place with no measuring and no guesswork, and the slots help keep the rafters straight for years.

Illustration of a 4 by 12 timber layout beam with evenly spaced pre-cut slots for drop-in pergola rafters
A layout beam with pre-cut rafter slots.

Key Takeaways

  • No measuring: rafter spacing is cut into the layout beam in the shop
  • Straighter rafters: the slots help prevent twisting and warping over time
  • No visible hardware: built on the same idea as The Dovetail Difference®
  • Every kit: arbors, pergolas, pavilions, and gazebos

How Do Drop-In Rafter Beams Work?

For a timber frame arbor, gazebo, pavilion, or pergola kit, the drop-in rafter layout is one of the design features that makes a DIY kit so easy. Each layout beam is precisely cut so every rafter lays neatly into place. The corners interlock, and the rafter slots are already marked and cut, so the hard work is done by experienced craftsmen before the kit ships.

Illustration of a slotted timber layout beam with a dovetail notch at the end and rafter slots along the top
Rafter slots along the layout beam.
Illustration of a timber post with interlocking beams and a slotted rafter dropping into place at the corner
A rafter dropping into place at the corner.

What Are the Benefits of a Drop-In Rafter Layout?

There are two main benefits. The first is easy installation: because the beam that supports the rafters is already marked and slotted, you do not have to measure anything or figure out rafter spacing. The second is long-term straightness: the slots help keep rafters from twisting and warping year after year.

The drop-in layout is built on the same principle as The Dovetail Difference®, Western Timber Frame’s patented joinery, which gives each structure strength and a clean, old-world craftsman look without unsightly bolts, lags, hangers, and hardware.

Cedar-toned 12 by 16 timber pergola with arched braces and evenly spaced rafters sheltering a hot tub
Evenly spaced rafters over a hot tub.

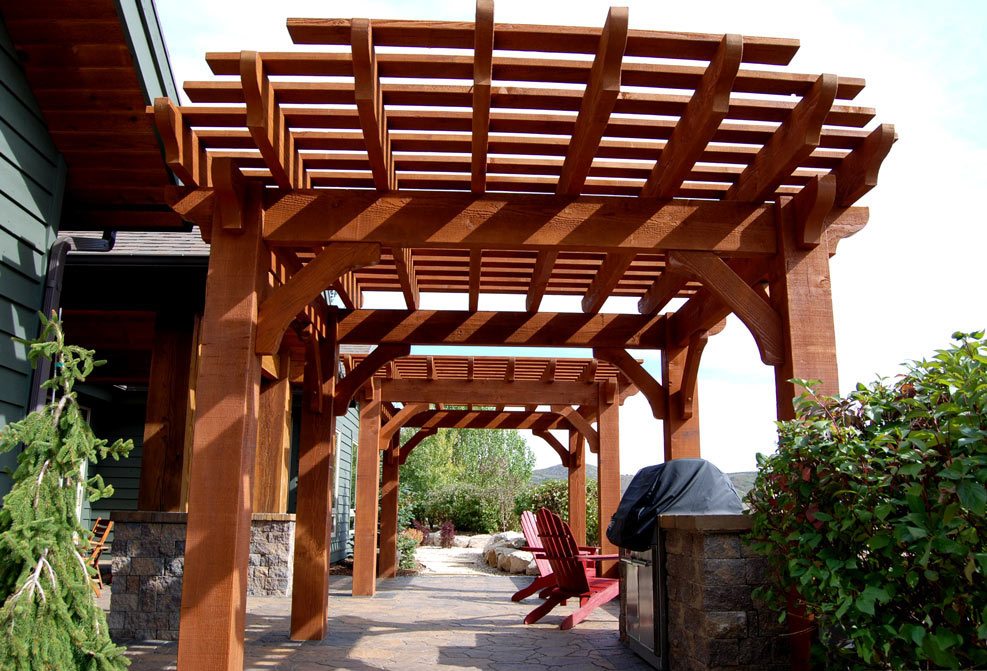

Series of linked 13 by 13 timber pergolas with evenly spaced rafters over a paver patio and outdoor kitchen
Linked pergolas with drop-in rafters.

What Do Homeowners Say About Installing These Kits?

“I am so impressed with the craftsmanship. The beams fit together perfectly and I can’t even tell where the joints are. All the timber was pre-cut and stained, ready to be installed. Nothing had to be re-cut. It had all been measured perfectly.” — Devon O’Brien, Holladay, Utah
“The pergola looks great! It went up very nicely. Everything was well marked with no guesswork!” — Helen O.W., Rochester, Minnesota
Long dark timber pergola on stone pillars shading lounge chairs beside a backyard pool with a water slide
The O’Brien pergola by the pool.

Questions About Drop-In Rafter Beams

What is a drop-in rafter layout?

The beam that carries the rafters arrives with slots already cut at the right spacing. During installation, each rafter simply drops into its slot, with no measuring or guesswork.

What are the benefits of drop-in rafters?

Faster, easier installation, because the spacing is done in the shop, and straighter rafters over time, because the slots help keep them from twisting and warping.

Does a drop-in rafter layout need visible hardware?

No. Like The Dovetail Difference® joinery it is based on, the drop-in layout avoids unsightly bolts, lags, and hangers.

Which structures use drop-in rafters?

Western Timber Frame arbor, pergola, pavilion, and gazebo kits all use pre-cut layout beams for easy assembly.

Do I need special skills to install a kit?

No. Every piece is pre-cut, pre-stained, and marked, so installation is assembly. Do-it-yourself installs usually take a day to a weekend, depending on size and crew.

Western Timber Frame has designed, handcrafted, and delivered more than 7,000 outdoor structures in all 50 states since 2008. See the story of The Dovetail Difference® and how fast a DIY shade structure goes up, or request a free design consultation and call 877-870-8755.
