Cedar City Attached Pergola with Translucent Corrugated Roof
Most pergolas give you one of two things: shade or rain protection. Doug wanted both — without closing in his view of the Cedar City landscape or turning his patio into a box. What he got was a heavy timber pergola that handles Southern Utah’s full range of weather while staying open, airy, and architecturally beautiful.
This project is a little different from most of our builds. Instead of open shade planks on top, Doug chose a translucent corrugated polycarbonate roof — a rain-proof system that still lets natural light filter through while keeping the space usable in any weather. Here’s exactly what went into it, why the corrugated roof works here, and what you should know if you’re considering the same.
Doug Says
“The clear roofing material creates adequate shade due to its shape.” — Homeowner, Cedar City, UT
Why a Corrugated Roof on a Timber Pergola?
It’s a fair question. A corrugated or translucent panel roof changes the character of a pergola in meaningful ways — and it’s not the right choice for every project. But for Doug’s site, it solved a specific set of problems that open rafters couldn’t.
The Problem: Weather + View
Up at 5,800 feet, the weather doesn’t really ask permission. Summer thunderstorms roll in fast, winter brings real cold, and the UV hits hard enough that an open pergola can leave you at the mercy of whatever the sky decides to do that day. Doug wanted a space that worked in every season, not just on calm June afternoons.

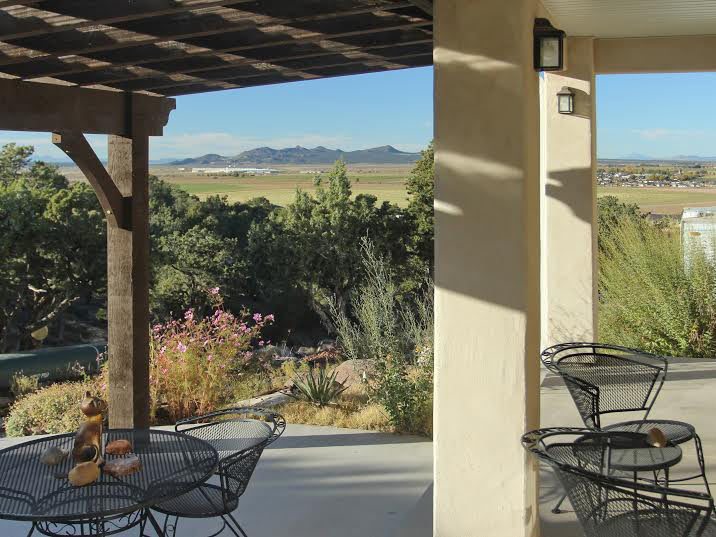

But he also had a view worth defending. The xeriscape yard, the high desert backdrop, that wide-open horizon — sealing it off with a solid roof would have missed the whole point. He needed protection without feeling enclosed.

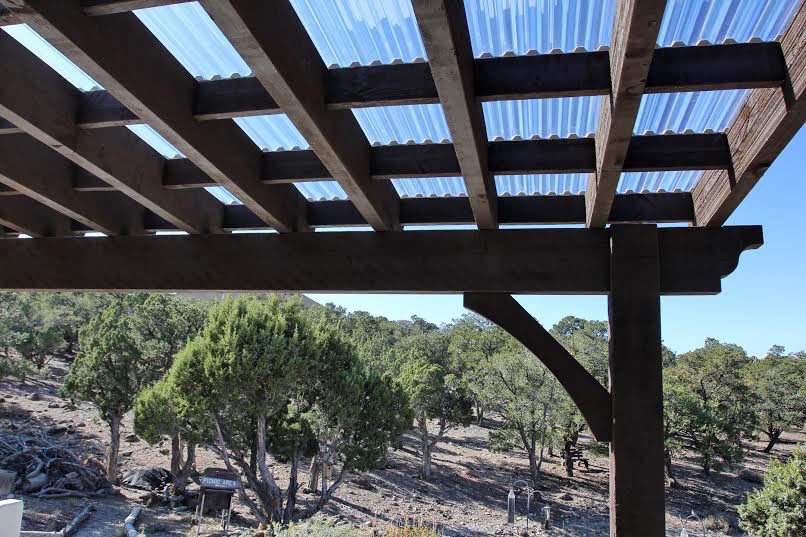

The Solution: Translucent Corrugated Polycarbonate
Translucent corrugated roofing panels solve this elegantly. They shed rain and soften UV exposure while still letting in bright, diffused daylight — so the space stays airy, not dim. And that wave-shaped corrugation is doing real work: it adds stiffness to the panel, helping it span across the rafters with minimal extra framing.
The end result is a pergola that still feels open and light-filled, even while it’s performing like a true roof. Doug noticed it right away. The corrugated profile breaks up the sun enough that the space stays more comfortable on bright days — often without needing additional shade systems.
What You Should Know Before Choosing This Roof Type
We’re big believers in telling you what corrugated roofing doesn’t do just as clearly as what it does. Here’s the honest version:
Rain noise.
Corrugated panels can amplify the sound of rainfall compared to a built-up roof. Some homeowners love it — that rain-on-the-roof ambiance you can’t really fake. Others find it distracting. It’s worth knowing which camp you’re in before you commit.
Heat gain.
Translucent panels handle sun differently than open rafters and shade planks. In direct-sun summers, a roof like this can hold heat underneath unless airflow is part of the plan. Doug’s layout works well because it’s open on three sides. A tighter or more enclosed space may need intentional ventilation.
Aesthetics.
The corrugated profile is distinctive. When it matches the architecture, it reads as intentional and clean. When it doesn’t, it can lean a little industrial — especially against a more traditional craftsman-style home.
Light and shade behave differently.
Open rafters with our 8,000 Series shade planks create strong functional shade (80% plus ShadePrint) while keeping the pergola fully open to the sky. Corrugated roofing gives you true rain protection, but it changes how light and air move under the structure. Same goal — comfort — but a different approach depending on what matters most.
ShadePrint™
Standard WTF 8,000 Series open-rafter DIY pergola kits achieve 80%+ ShadePrint™ — functional shade comparable to a large tree. A corrugated roof delivers 100% rain protection with diffused light transmission. Different tools for different goals.
Project Specifications at a Glance
|
Specification |
Detail |
|---|---|
|
Location |
Cedar City, Utah |
|
Configuration |
Attached to home |
|
Timber Series |
8,000 Series (Oversize) |
|
Species |
Douglas Fir — Grade A, direct from mill |
|
Roof Dimensions |
10′ × 18′ |
|
Post Footprint |
9′ × 15′ (posts 12″ in from corners) |
|
Posts |
8″ × 8″ |
|
Beams |
4″ × 12″ |
|
Knee Braces |
3″ × 8″ |
|
Roof System |
Translucent corrugated polycarbonate panels |
|
Hardware |
EarthAnchor™ Structural Knife Plates + engineer-grade timber lags |
|
Moisture Protection |
EarthAnchor™ (post base) + patent-pending cap system (post-to-beam joint) |
|
Stain |
Sherwin-Williams UV-rated exterior, shop-applied, 2 backrolled coats |
|
Engineering |
Stamped structural drawings included |
What’s Holding This Structure Up — and Why It Matters
Photos show the corrugated roof. What photos don’t show is the engineering underneath it. For an attached pergola with a rain-shedding solid roof, the structural requirements are meaningfully higher than for an open-rafter design. A roof system adds real load, and attaching to the home isn’t just “fasten and hope” — it requires a properly engineered ledger connection.
EarthAnchor™ Structural Knife Plates
Every post base in this structure is anchored with our EarthAnchor™Structural Knife Plates — custom-engineered structural aluminum concealed inside each timber post.
They do two critical jobs at once:
They eliminate wood-to-concrete contact, which is one of the most common causes of post-base decay.
They anchor the structure to its footings with a 120 plus mph wind rating.
This matters even more on a solid-roof structure than an open one. A solid roof can behave like a sail in high winds, catching uplift and lateral forces that open rafters largely let pass through. The EarthAnchor™ system transfers those forces down through the timbers and into the concrete — and once installed, the hardware disappears inside the post.
The Dovetail Difference™ Joinery
The timber-to-timber connections in this structure use The Dovetail Difference™ precision joinery — CNC-cut, interlocking wood-to-wood joints, hand-fit in our shop in Payson, Utah.
The result is clean timber work without the look (or long-term loosening) of exposed bolt hardware. No rattling connections. No squeaking. No gradual shifting over seasons. The structure ships ready to assemble, with every joint already precision-cut for a tight, confident fit.
5 Questions to Ask Any Company Before Adding a Corrugated Roof to Your Pergola
Whether you’re talking to us or anyone else, the roof type changes the engineering requirements. Here’s what to ask:
- What is the structural rating of the corrugated panels, and how are they fastened to the rafters?
Panel spanning capacity varies widely by material and thickness. “Corrugated” is a shape, not a strength rating. You want to understand what the panels are engineered to span and how the fastening system handles wind uplift and thermal movement. - What protects the post bases from moisture?
A solid roof concentrates runoff at the drip edge. That water has to go somewhere — and the last place you want it lingering is at a post base. Without a true moisture break between wood and concrete, decay becomes a long-term risk. - What protects the post-to-beam joint from water intrusion?
This is the highest-risk moisture point on a timber structure, and almost nobody asks about it. Horizontal joints collect moisture. Smart design protects that connection before problems ever begin. - Does the structure come with stamped structural engineering drawings?
Adding a solid roof often changes permitting requirements. In many jurisdictions, an open-rafter pergola and a roofed structure are not treated the same. Engineering drawings can make the difference between a smooth approval and a stalled project. - What is the UV rating of the panels, and how do they perform after 5 to 10 years of direct sun exposure?
Lower-grade polycarbonate can yellow and become brittle. Quality UV-stabilized panels are designed to maintain clarity and performance over time. It’s worth asking how the product performs after several summers — not just how it looks on installation day.
Why This Design Works Especially Well in Southern Utah
Cedar City sits in what engineers call a mixed-climate zone: hot summers with intense UV, cold winters with real snow load, and high-elevation storms that show up fast. It’s one of the more demanding environments in the country for an outdoor timber structure.
That’s where heavy Douglas Fir quietly proves its value. Timber has real thermal mass — it absorbs heat instead of throwing it back at you. Even on a high-desert afternoon when the air pushes into triple digits, a timber post stays safe to touch. Metal components in the same sun can turn into a branding iron. The corrugated roof manages the weather from above; the timber keeps the space comfortable and livable at hand level.
Finish matters just as much at this elevation. Our shop-applied Sherwin-Williams UV-rated stain is designed for Southern Utah’s intensity, and it’s applied the right way: two backrolled coats in a controlled environment before the kit ships. That means every surface of every timber is coated — including the undersides and interior faces of joints that you simply can’t reach once the structure is assembled on-site.
Thermal Mass
Even at 115°F ambient air temperature, a Douglas Fir post stays safe to touch. Metal pergola posts in the same conditions radiate heat and can cause contact burns. The material does more than look good — it performs.
This Is a DIY PERGOLA Kit — Here’s What That Means
Doug’s structure arrived as a complete, precision-engineered kit — every component pre-cut, pre-drilled, and shop-stained. The engineering made assembly manageable without a contractor. Here’s what ships with every pergola kit like this one:
- Pre-cut, pre-drilled Douglas Fir timbers in all structural dimensions
- Shop-applied Sherwin-Williams stain with two backrolled coats — no field staining required
- EarthAnchor™ Structural Knife Plates for every post base
- Engineer-grade timber lags, sized specifically for this structure (5 to 14 inches depending on the joint) — not off-the-shelf substitutions
- Patent-pending cap system protecting the post-to-beam connection from moisture intrusion
- All required connector hardware and driver bits included — nothing left to source
- Matching touch-up stain for any installation marks
- Stamped structural engineering drawings for permitting and peace of mind
Footings, electrical connection (if TimberVolt® Power Posts are included), and the corrugated panels themselves are sourced and installed separately — the pergola kit provides the complete timber and hardware system.
Frequently Asked Questions
Can any timber pergola kit be fitted with a corrugated roof?
Not without an engineering review. A solid or semi-solid roof changes wind load, snow load, and deflection requirements for rafters and beams. The structure needs to be engineered for the added weight and wind uplift before panels are specified. Our kits that include this roof option are engineered for it from the start.
Will the translucent panels yellow or cloud over time?
Quality polycarbonate panels with UV-stabilized coatings are designed to maintain clarity for 10 to 15 plus years under normal conditions. Budget panels without UV protection can yellow and become brittle within 3 to 5 years in direct sun. Always confirm the UV rating and manufacturer warranty before you choose a panel product.
Is an attached pergola harder to permit than freestanding?
Attached structures typically require a permit because they transfer loads into the home’s framing. Adding a solid or corrugated roof can also shift the project into a patio cover classification under the IRC, which carries specific structural requirements. Our stamped structural engineering drawings typically provide the documentation most jurisdictions ask for.
Does the corrugated roof affect the TimberVolt Power® Post option?
No. TimberVolt® posts are drilled and pre-wired in our shop before shipping, independent of roof type. In fact, a covered structure with a corrugated roof is an ideal fit for TimberVolt® because the electrical infrastructure stays inside the posts, invisible, and protected from the rain the roof is shedding.
How does maintenance work for a structure like Doug’s?
The timber framework follows the same maintenance rhythm as any Western Timber Frame™ structure: inspect the Sherwin-Williams stain every 2 to 3 years, touch up as needed with the included matching stain, and check corrugated panel fasteners annually for any movement. EarthAnchor™ Structural Knife Plates protect the two highest-risk moisture points without requiring ongoing maintenance.
