Back Deck Pergola: A 12×23 Kit Over a Raised Deck, Before and After

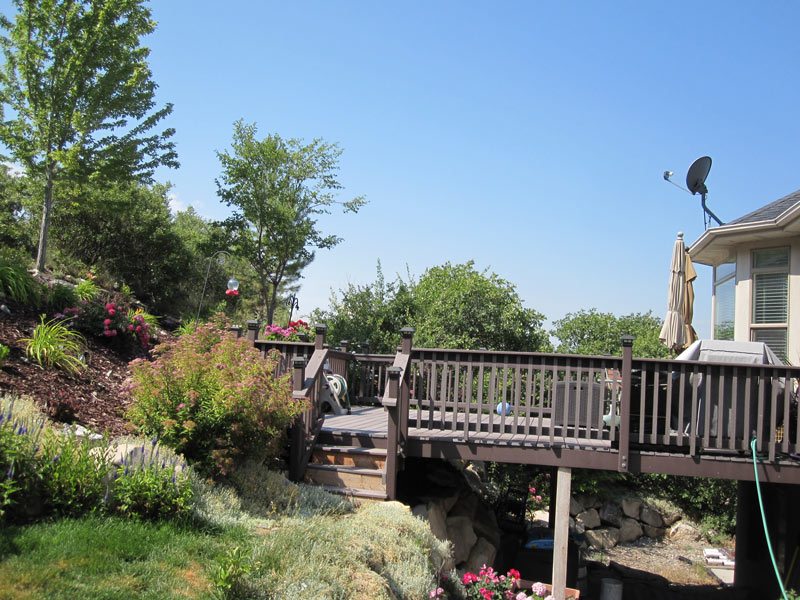

Side view of a raised deck on posts above a rocky garden slope, open to the sky before the pergola

Same raised deck from the side after install, a dark timber pergola now shading its far end above the garden slope

A back deck pergola finishes the side of a house most people never dress up. The front of a home gets the curb appeal. The back, where the family actually lives, is often left plain, and a raised deck in full sun is one of the least comfortable places on the property by mid-afternoon.

This 12′ × 23′ pergola changed that in a few hours. It stands on the end of a raised deck above a garden slope, stained Rich Cordoba, and it gives the table and chairs underneath real shade while adding the kind of architecture the back of the house was missing.

The Deck Before

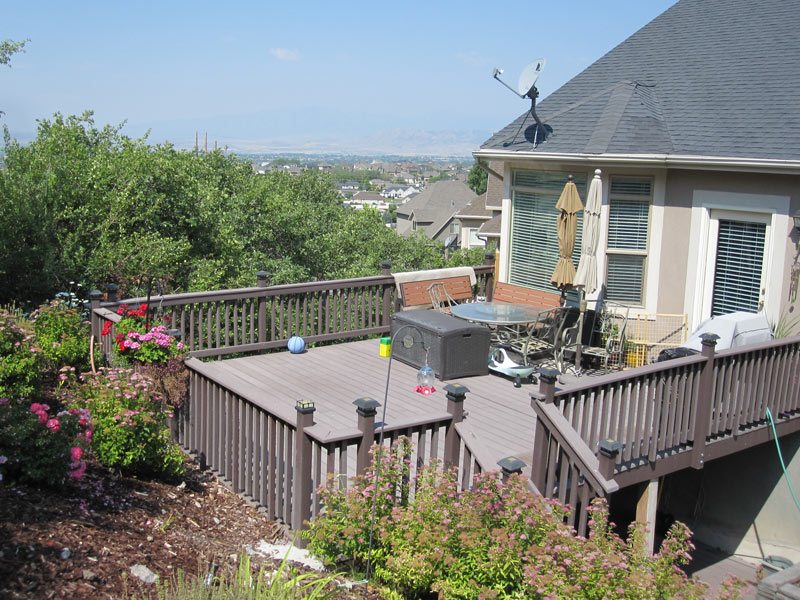

Raised back deck with dark railings and patio furniture above a landscaped slope, before a pergola was added — From above the slope, before.

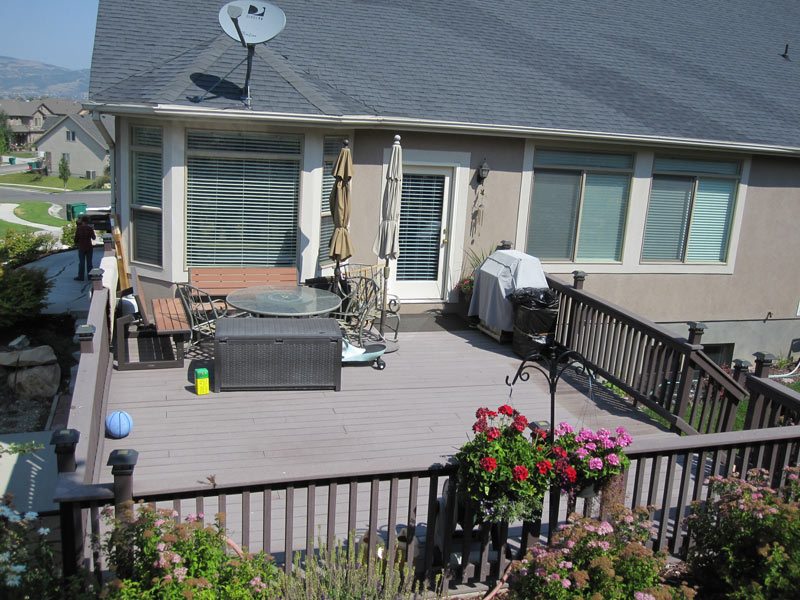

Back deck of a stucco home with a table, umbrellas and a grill in full sun, before a timber pergola — Umbrellas doing the work a roof should.

Two patio umbrellas and a grill in full sun: the deck had everything except a reason to sit on it after lunch. Umbrellas move with the wind and shade one chair at a time. A timber roof shades the whole table, stays put, and makes the deck read as part of the house.

After: A 12′ × 23′ Back Deck Pergola

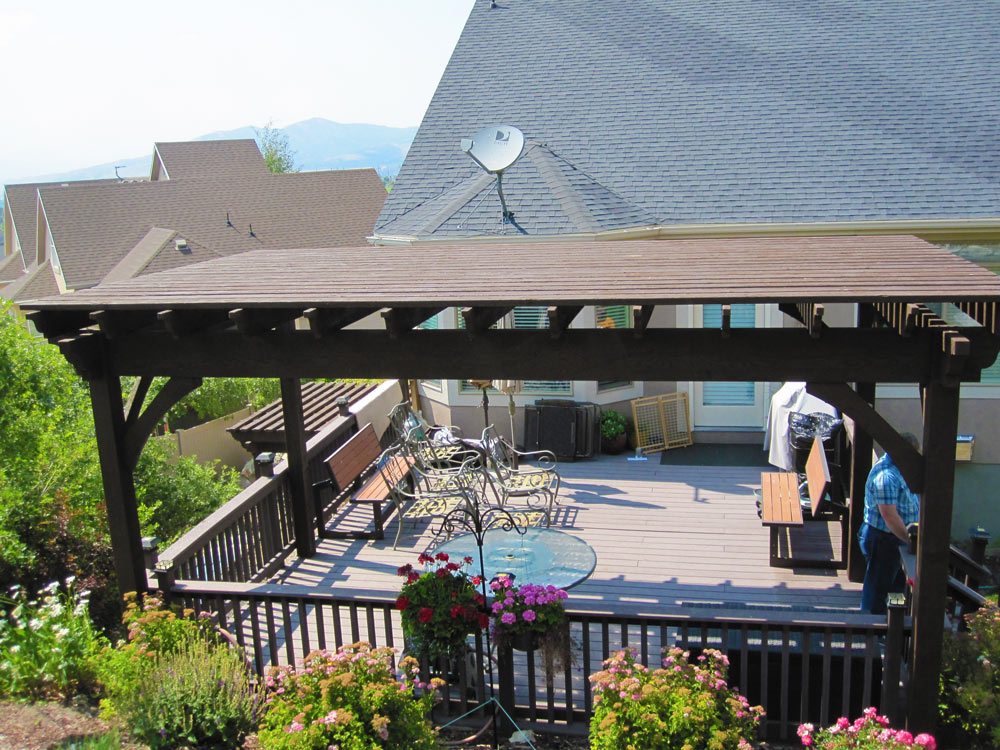

Looking across the deck under a dark-stained pergola, with patio chairs, a round table and flowers along the rail

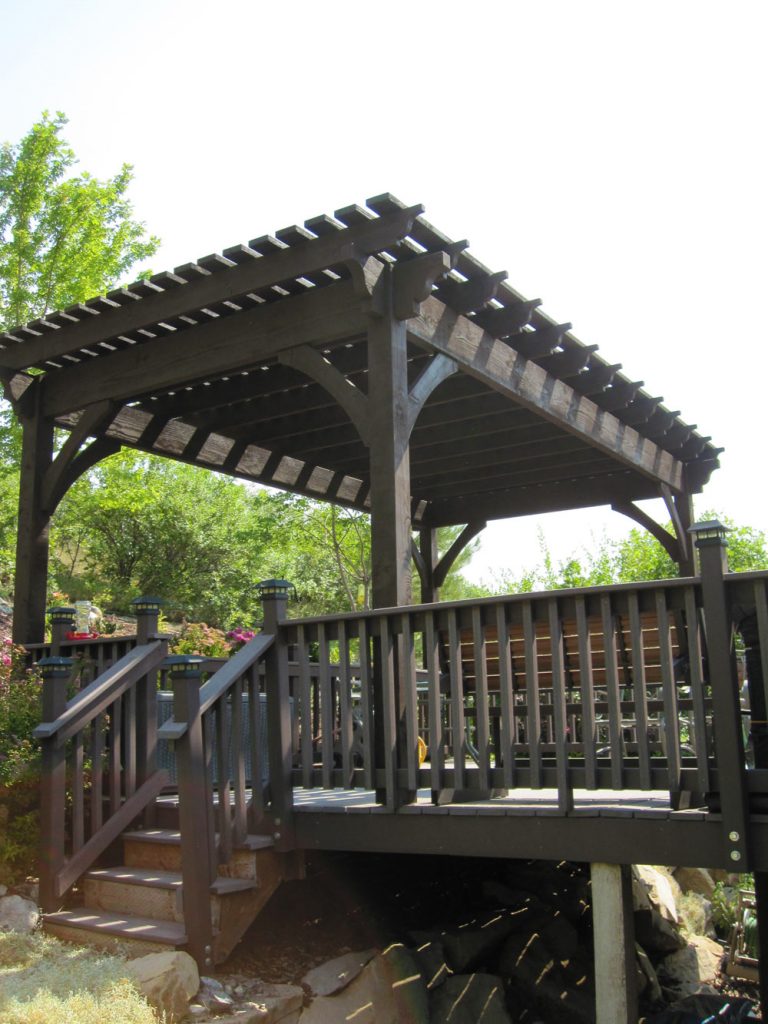

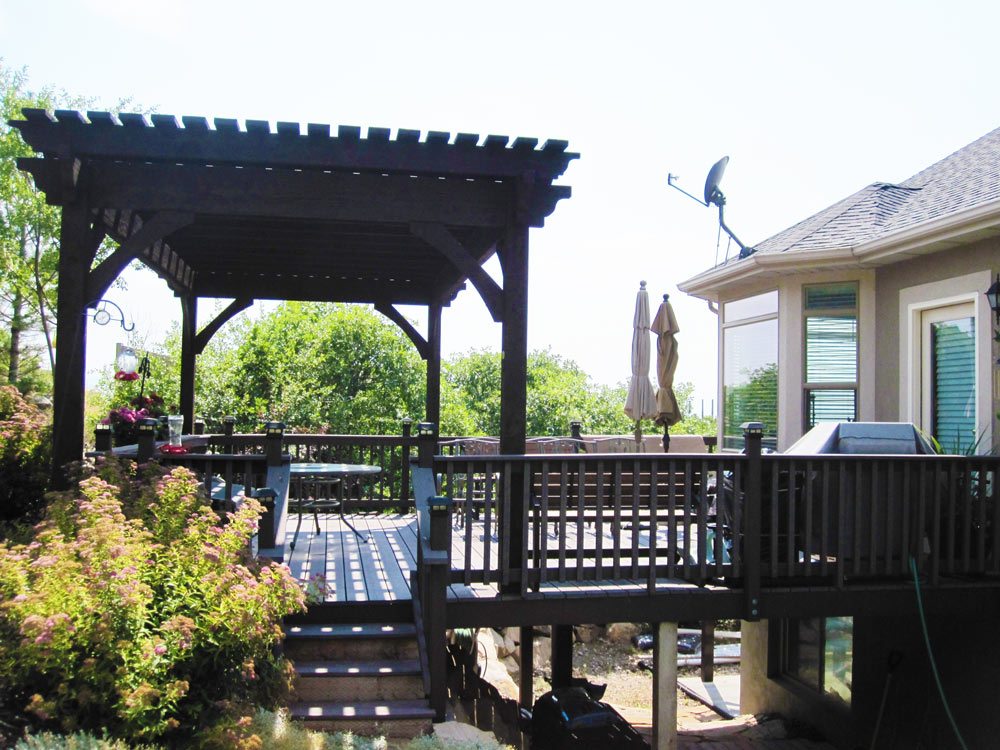

Dark timber pergola standing on the corner of a raised deck, with stairs and flowering shrubs below

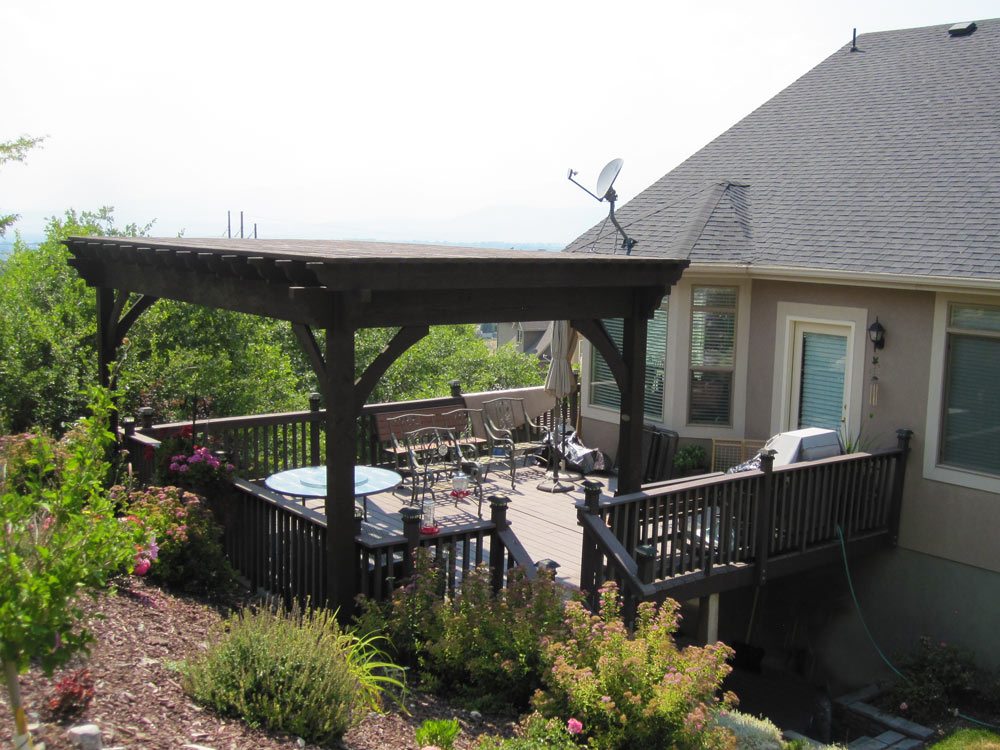

Timber pergola over a deck dining area beside a stucco home, seen from the garden below

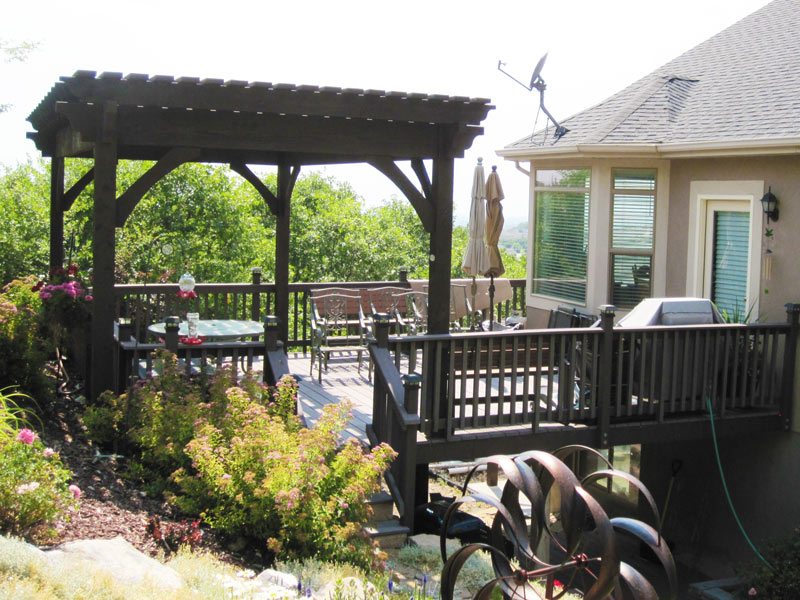

Wide view of a pergola on a raised back deck, with the house, patio furniture and landscaped slope around it

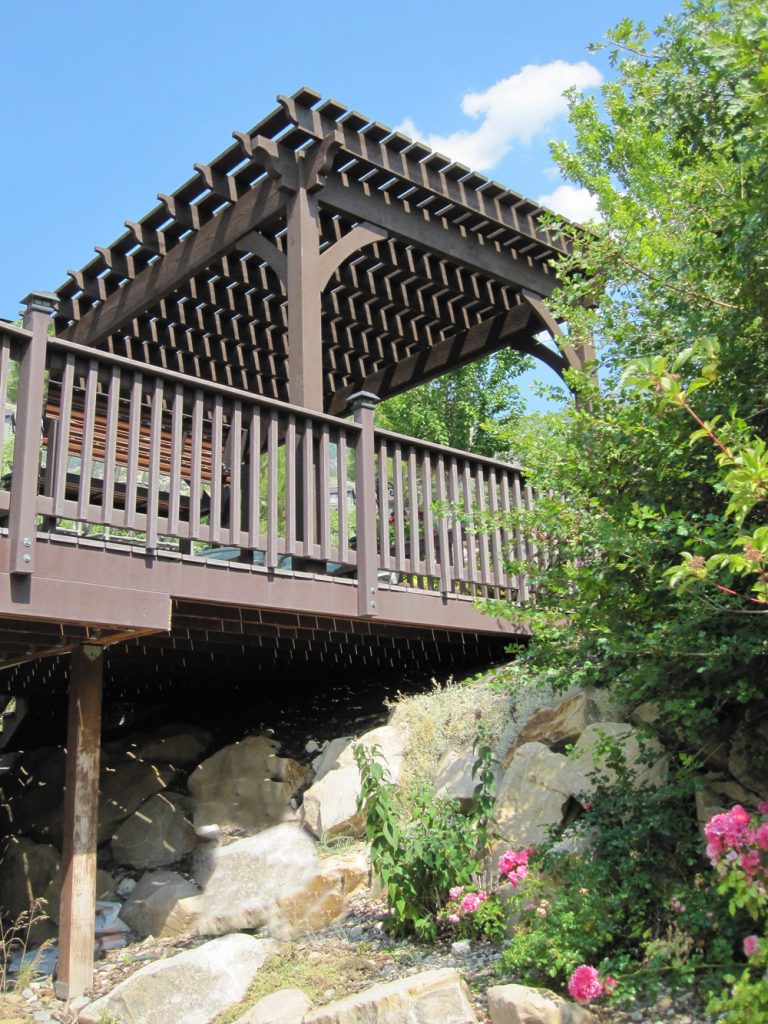

Tall view of the pergola on its raised deck, standing above a rock garden and pink flowering shrubs

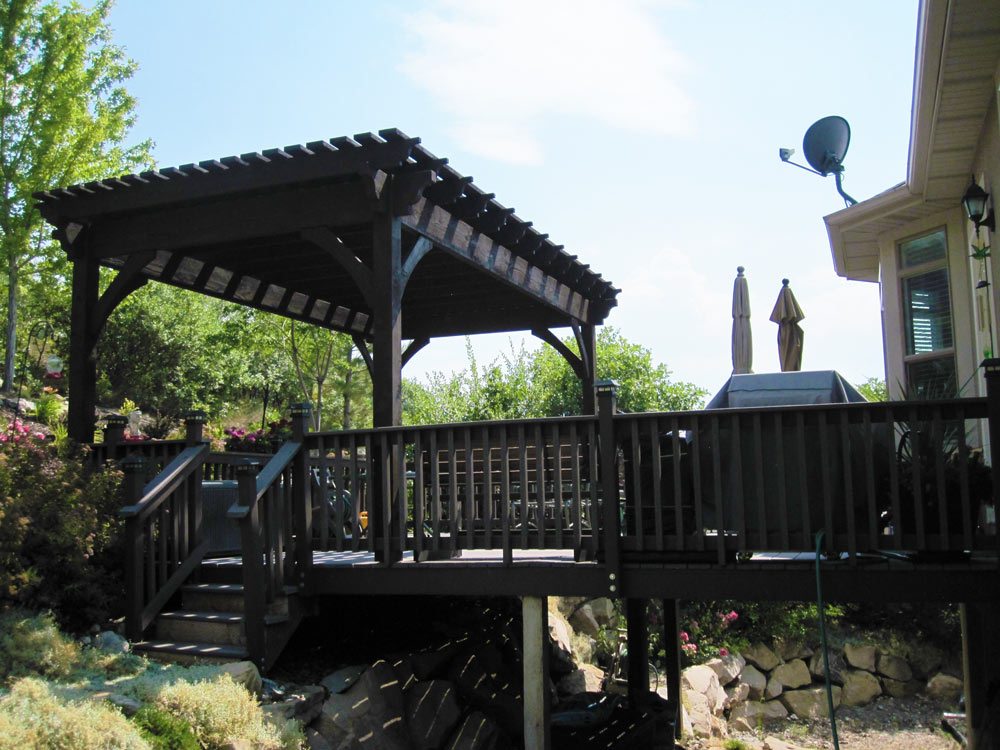

Dark timber pergola above a raised deck and its stairs, with trees and blue sky behind

Why It Went Up in a Few Hours

Every piece arrives pre-cut, pre-marked and pre-fit in the shop, so the work on site is assembly, not carpentry. Most installs take an afternoon to a day with a crew, and a day to a weekend for a DIY build. Longer only for complicated jobs.

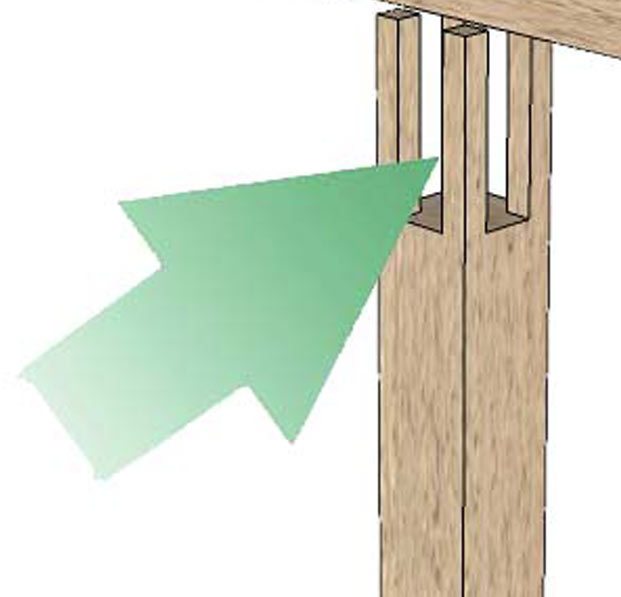

The frame is joined with the patented Dovetail Difference®, U.S. Patent 9,797,149 B2. It interlocks the timbers wood to wood without metal brackets, which is also why the finished pergola has no visible hardware.

Each structure is engineered to the snow and wind loads at its site. Our standard engineering starts at 115 mph. Where the project requires a higher design wind speed, the structure is engineered for that requirement.

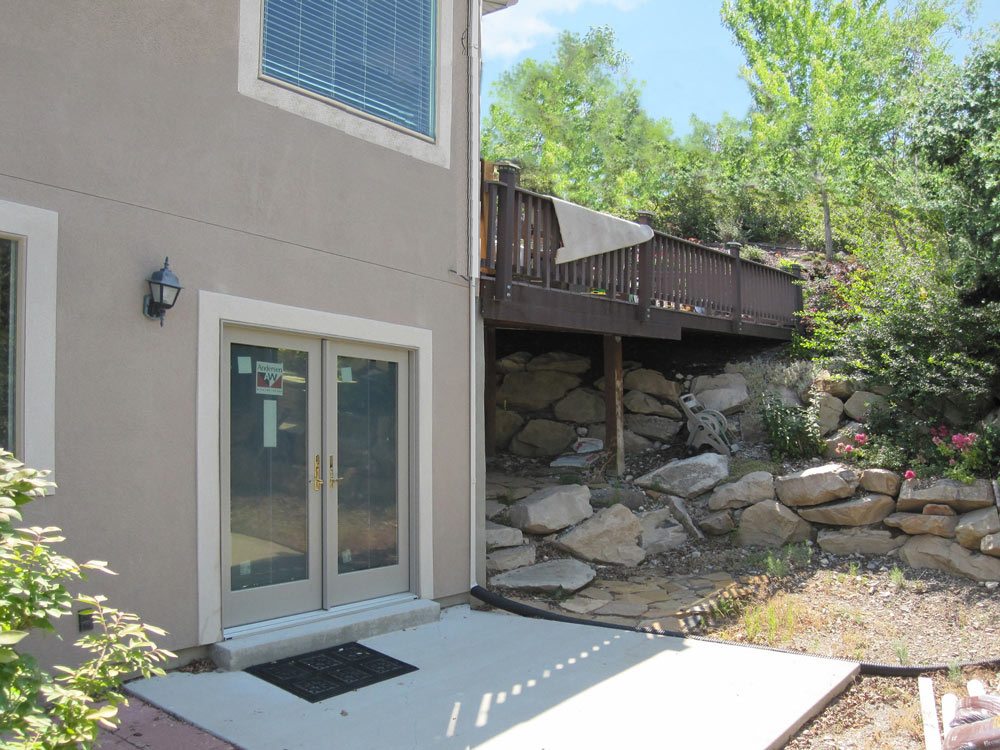

Small concrete patio at basement French doors below an upper deck, with a rock retaining wall, before a pergola — The walkout entrance below the deck got its own 10′ × 10′ pergola. See 9 more before and after projects.

With 28 Best of State Awards, multiple Inc. 5000 honors, an HGTV Design Excellence Award, 2026 SBA Utah District Manufacturing Small Business of the Year, and 7,000+ structures built nationwide since 2008, Western Timber Frame is a national authority on custom, structural, handcrafted, real-wood timber frame pergolas and outdoor structures for homeowners who want true craftsmanship, not mass-produced, cookie-cutter kits.
