TIMBERVOLT® POWER
BUILT-IN POWER:
THOUGHTFULLY DONE.

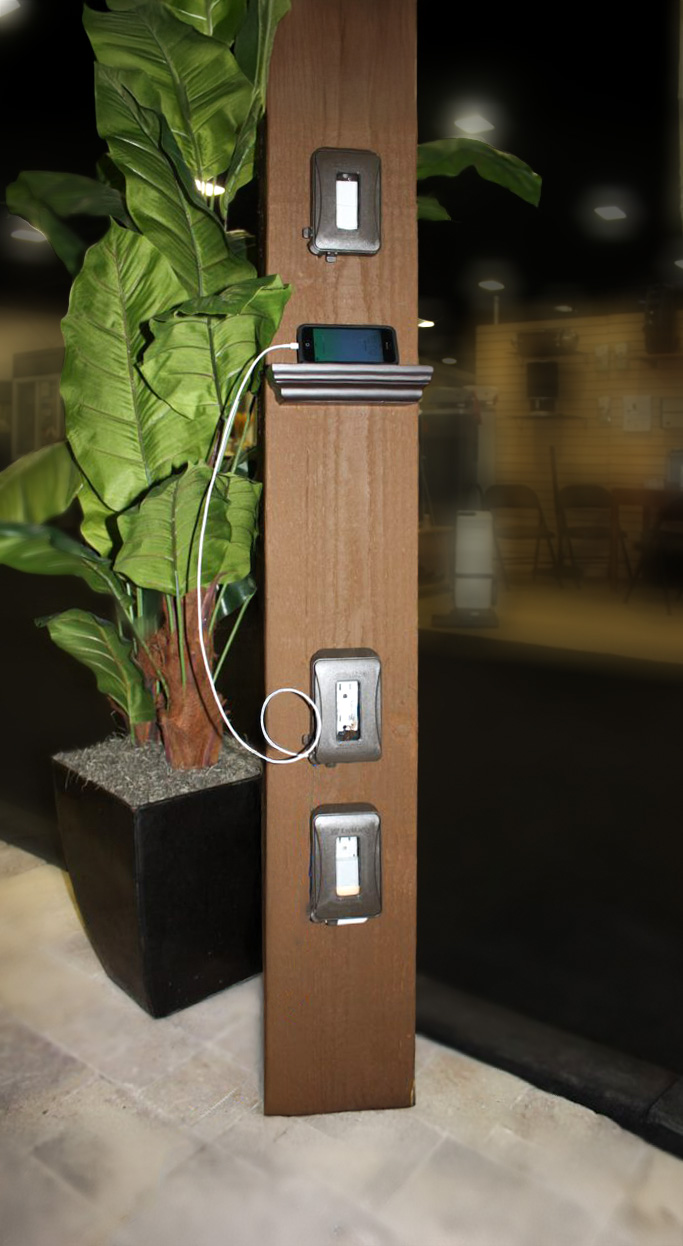

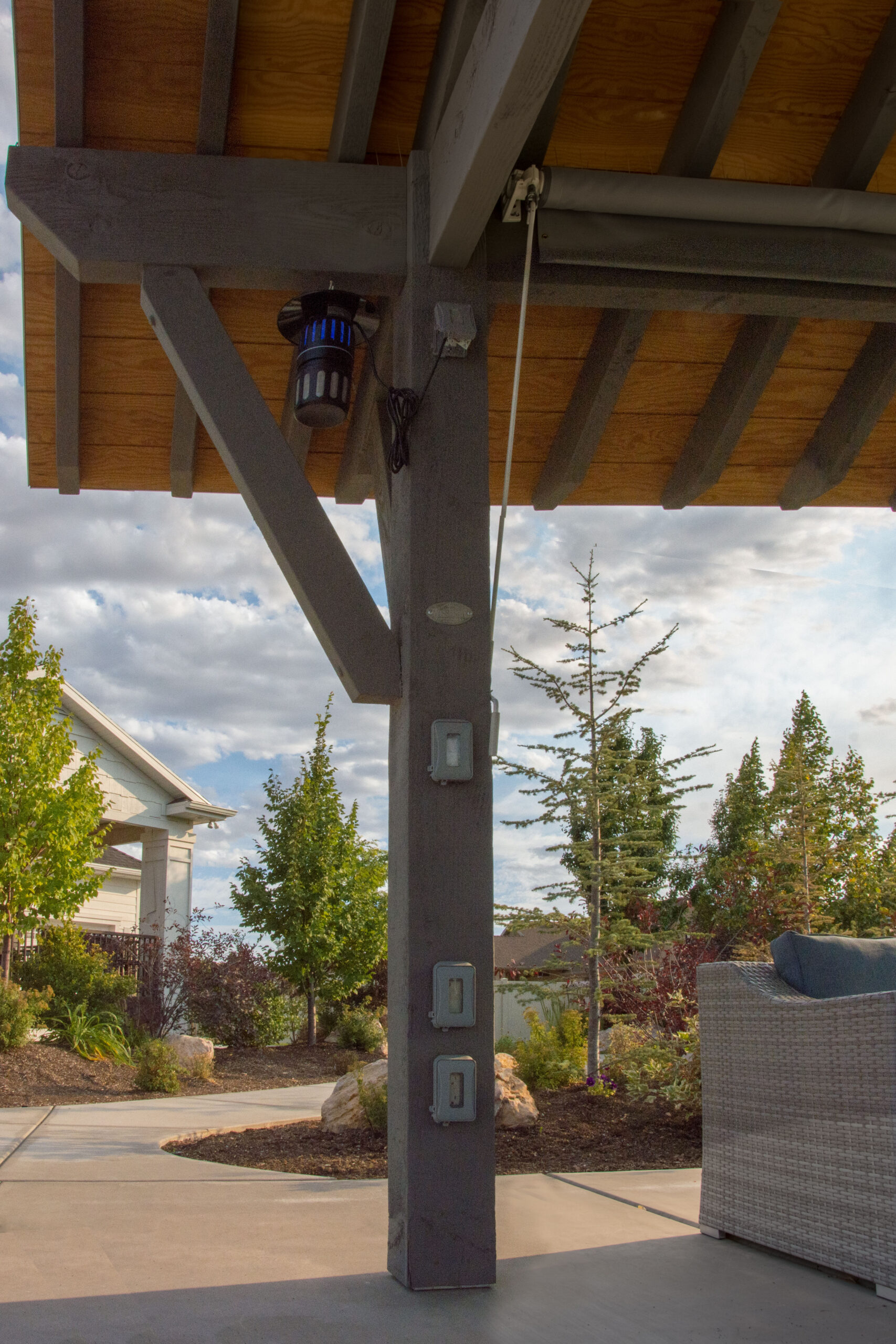

Perfect for exposed timbers and post-to-beam applications, TimberVolt® posts arrive pre-wired with protected internal channels—no visible conduit, no trenching, and no guesswork. Just clean, reliable energy built right into the timber.

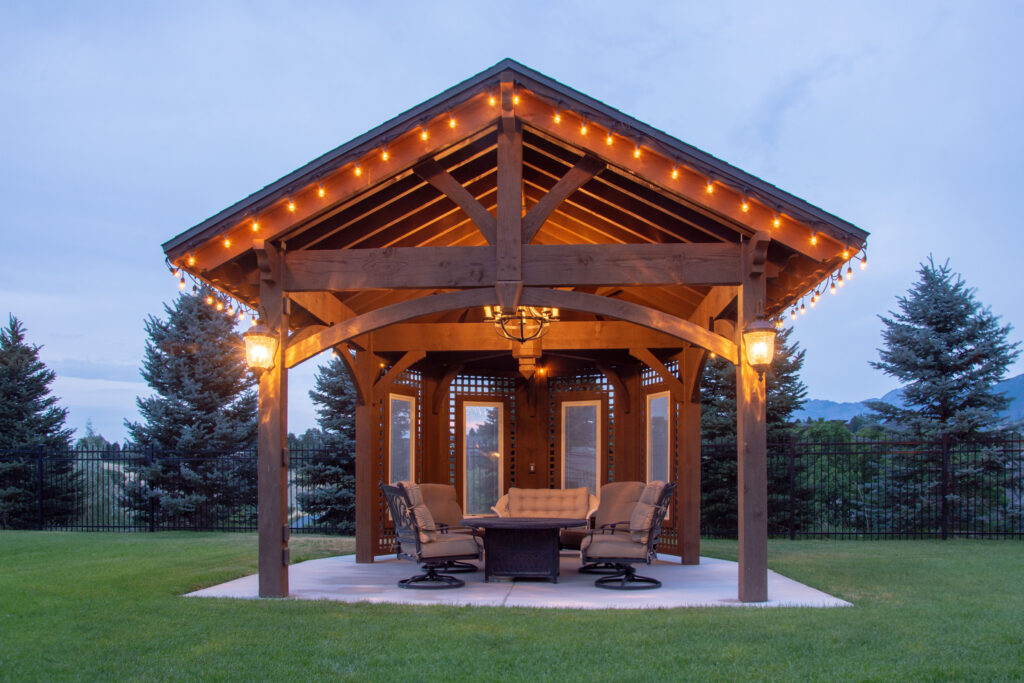

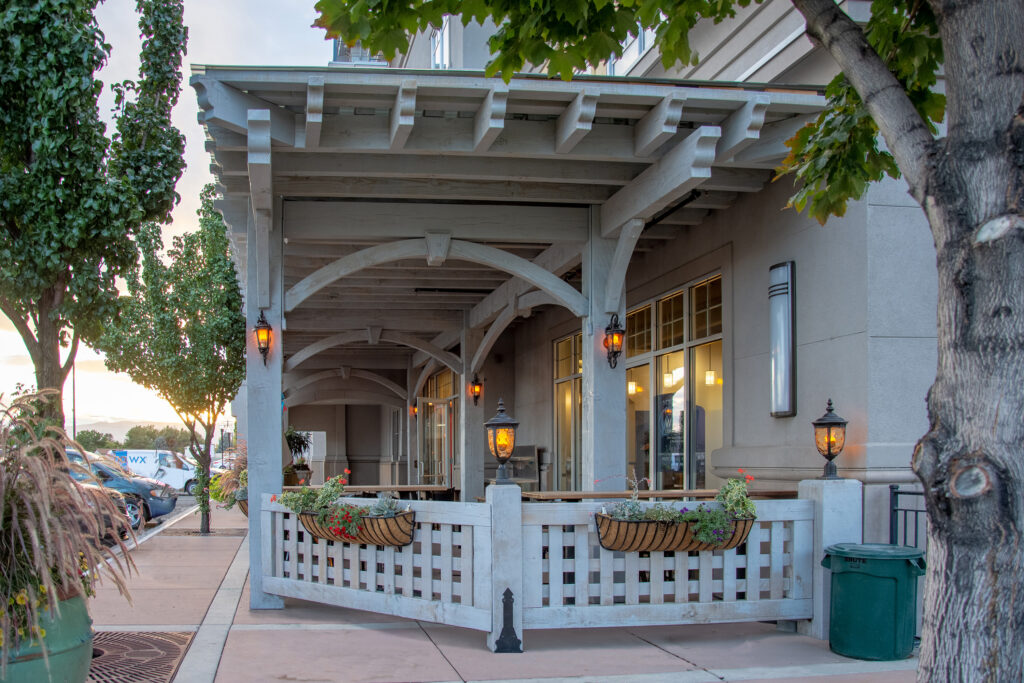

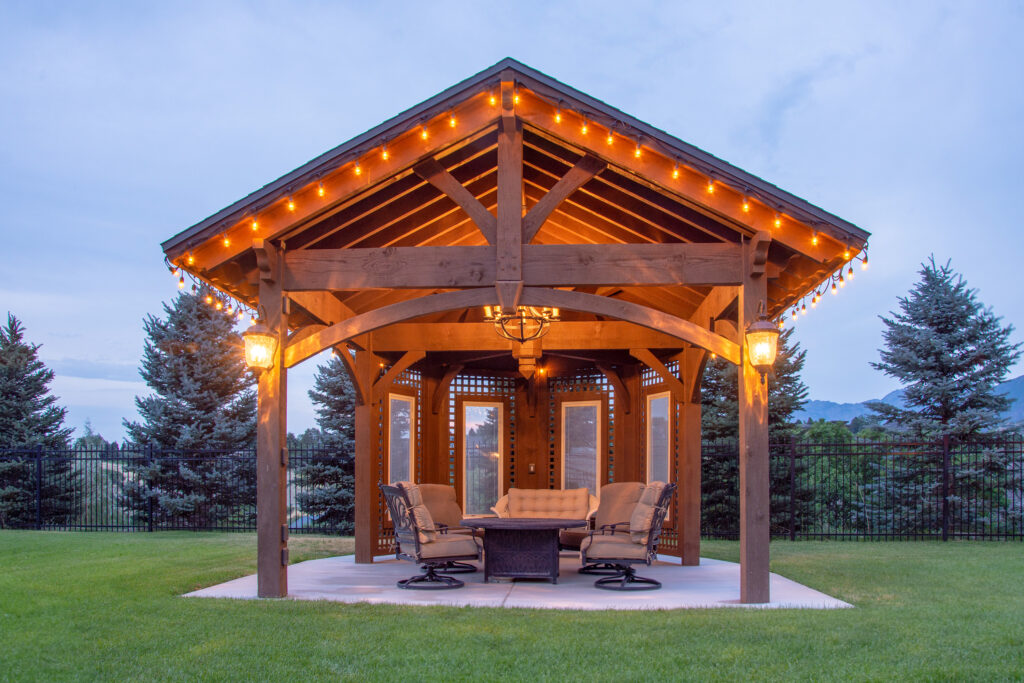

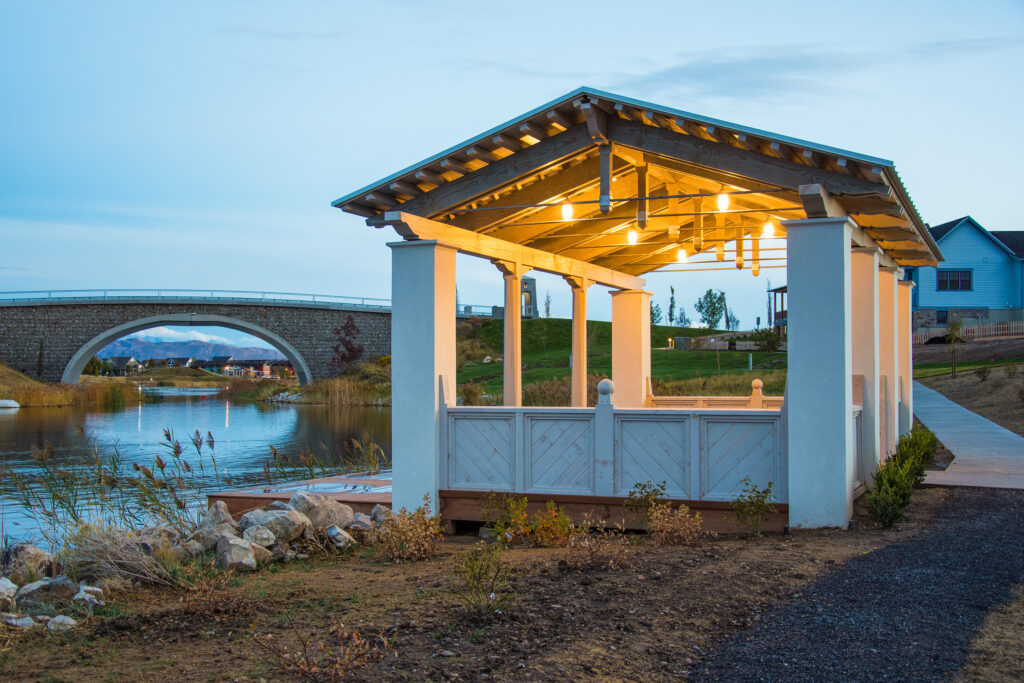

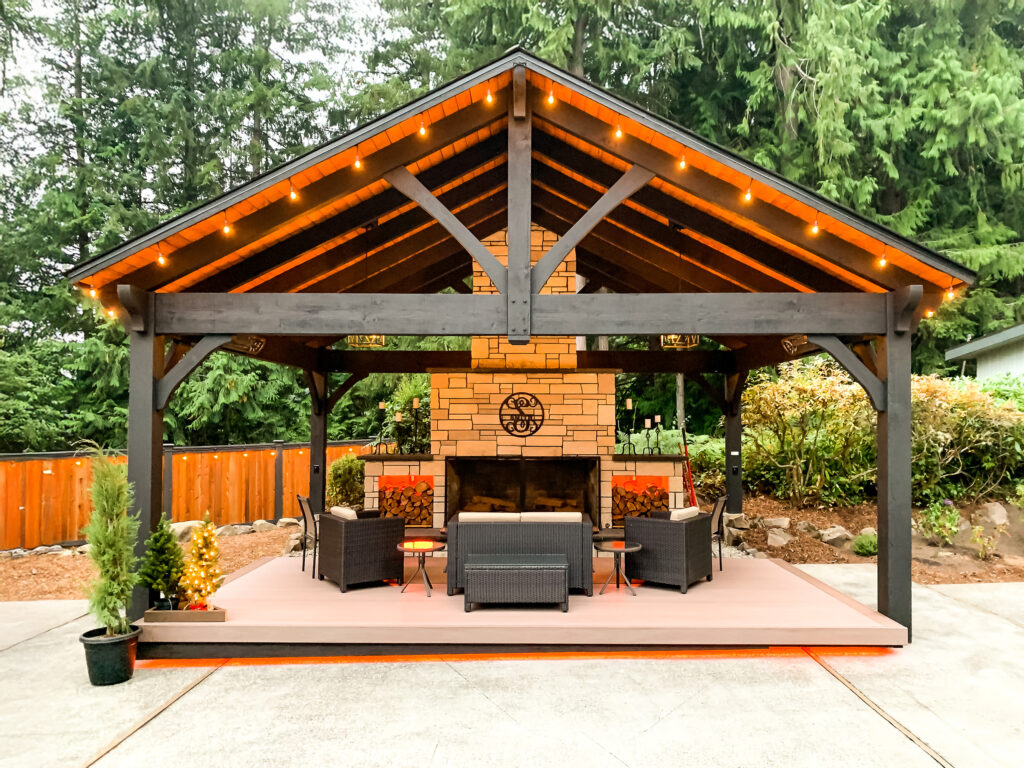

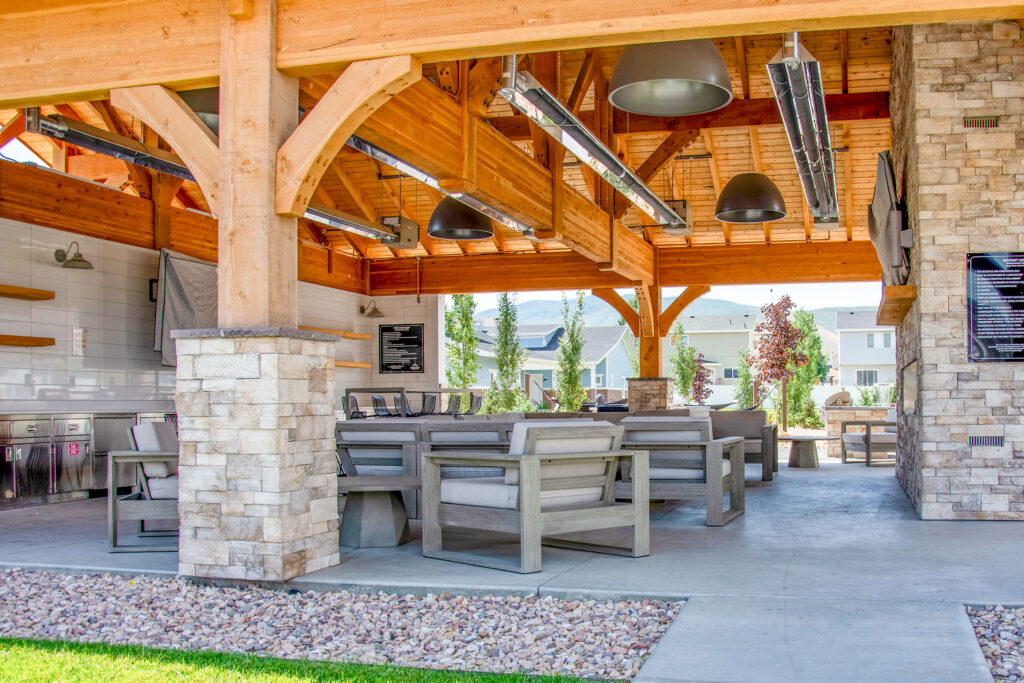

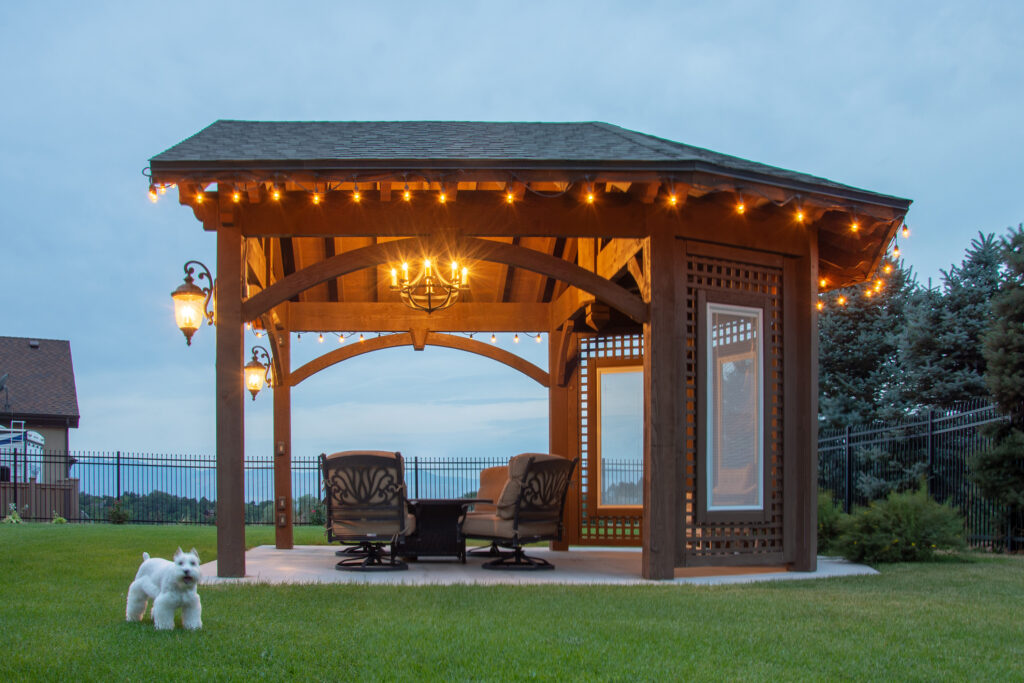

Ideal anywhere people gather and power matters—lighting outdoor kitchens, charging stations, live music setups, event spaces, community courtyards, or commercial spaces.

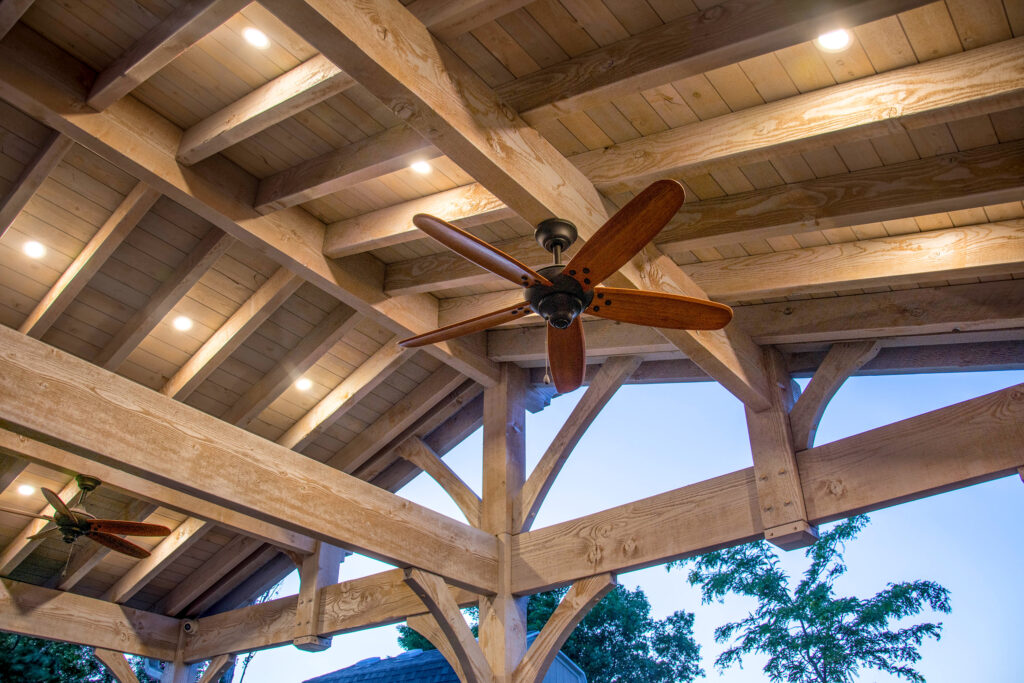

- Designed for seamless use with lighting, ceiling fans, outlets, and USB ports
- Compatible with grid, generator, or solar-based power systems
- Available in multiple configurations to match your project needs
🌟 Key Benefits
- ✔️ Plug-and-go simplicity—no trenching required
- ✔️ Ready-to-use at installation
- ✔️ Beautiful, concealed internal wiring
- ✔️ USB & TV-ready options (Inferno model)
- ✔️ Solar and generator compatible (Dragon & Inferno)
- ✔️ Multiple post configurations available
Explore the TimberVolt® Models
Firefly®
Drilled for 1 light switch with a top cover insert. No pre-wiring included.
Phoenix®
Drilled for 1 switch and 1 outlet. Ready for wiring with boxes installed.
Dragon®
Pre-wired with GFCI protection, switch, and plug-and-play cord setup.
Inferno®
Fully wired with dual outlets, USB, TV port, and fan + light switches.
Drill for Power
Custom drilled post with 1 light or outlet box mortise—ready for site wiring.
🛠 How TimberVolt® Posts Are Made
1. Cutting the Post
Timber is cut and dovetailed by expert timber wrights using large saws.
2. Carving the Electrical Boxes
Each box cavity is hand-cut with a chain mortiser—30 minutes per box on average.
3. Drilling the Power Core
A custom air-fed bore drill creates a hole through the center. It may take 90+ minutes and up to 100 drill passes, especially through knots.
4. Wiring & Box Installation
- Fire-rated, thermoplastic boxes (UL & NEMA compliant) are installed.
- A steel protection sleeve prevents screw damage.
- Proprietary outdoor-rated wiring is drawn through using fish tape.
- Switches and outlets are finished with gasket-sealed Hubbell ML450Z covers.
5. Testing
Each post is rigorously tested to ensure switch, outlet, and wiring integrity before shipping.
TIMBERVOLT® POWER
The perfect power solution for every space—bold, clean, and concealed.
Compare the TimberVolt® Models
| Model | Pre-Wired | USB/TV | Switches | Outlets | Notes |
|---|---|---|---|---|---|
| Firefly® | ✖ | ✖ | ✔️ 1 Light | — | Drilled with box cover; top protected |
| Phoenix® | ✖ | ✖ | ✔️ 1 Light | ✔️ 1 Standard | Box-ready with dual covers |
| Dragon® | ✔️ | ✖ | ✔️ 1 Light | ✔️ 1 GFCI | Plug & play: male/female cords |
| Inferno® | ✔️ | ✔️ | ✔️ Dual (Light + Fan) | ✔️ 2 + USB | Fully wired; USB & TV ready |
| Drill for Power | ✖ | ✖ | — | — | Custom drilled; one box included |
Built By Experts. Backed By Western Timber Frame™.
Every TimberVolt® post is handcrafted by skilled timberwrights with precision, pride, and purpose. When you choose Western Timber Frame™, you get more than power—you get people who care deeply about quality, beauty, and your peace of mind.
